| Prod Model: |
RSM Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
China Supplier Kiet Low Profile Hydraulic Jack |
| Model Number: |
Rsm Series |
| Collapsed Height: |
164-745 mm |
| Material: |
#45 Steel |
| OEM: |
Yes |
| Weight Range: |
1-72.6 Kg |
| Body Material: |
Steel |
| Color: |
Yellow, Black, Customerized |
| Market: |
Global |
| Capacity: |
6-50t |
| Type: |
Hydraulic Jack |
| Structure: |
Hydraulic Jack |
| Power Source: |
Hydraulic |
| Capacity (',Load): |
6-50t |
| Max Height: |
5-25mm |
Product Description

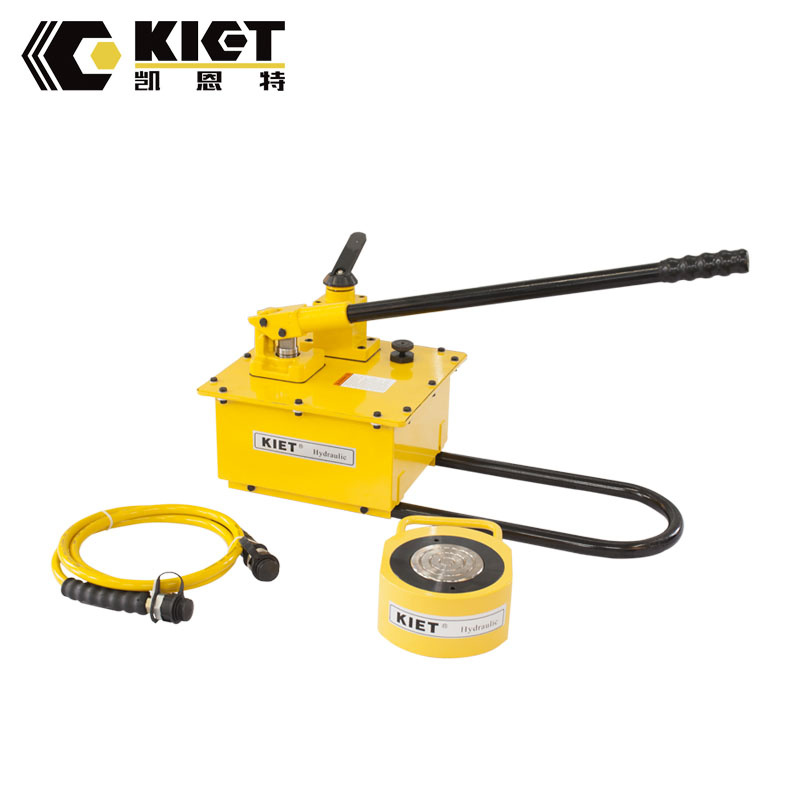

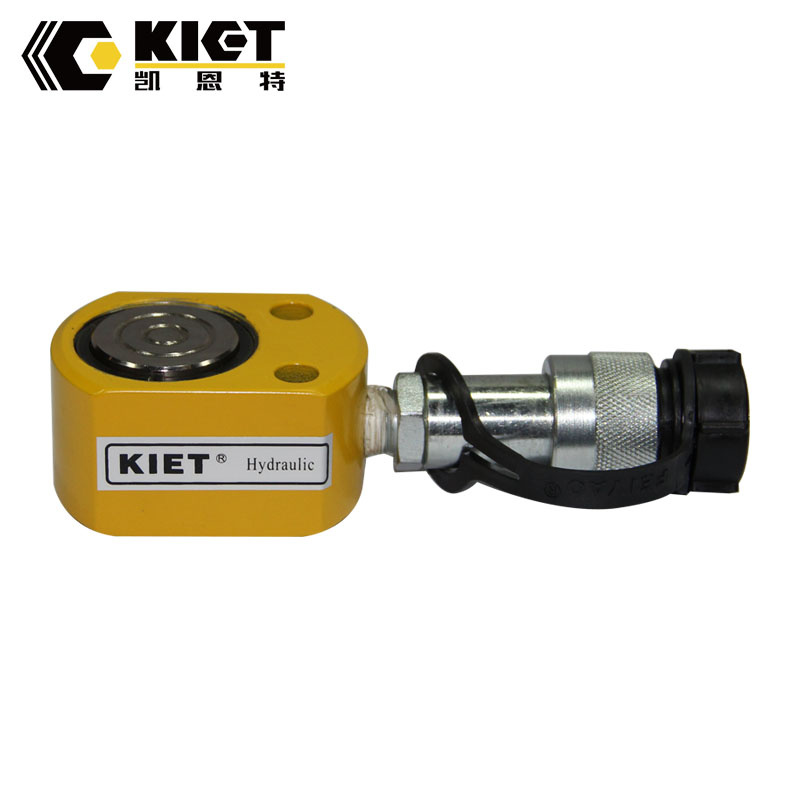

China Supplier Kiet Single Acting Low Profile Small Hydraulic Jack
Product Description
1.Compact, flat design for where other cylinders will not fit

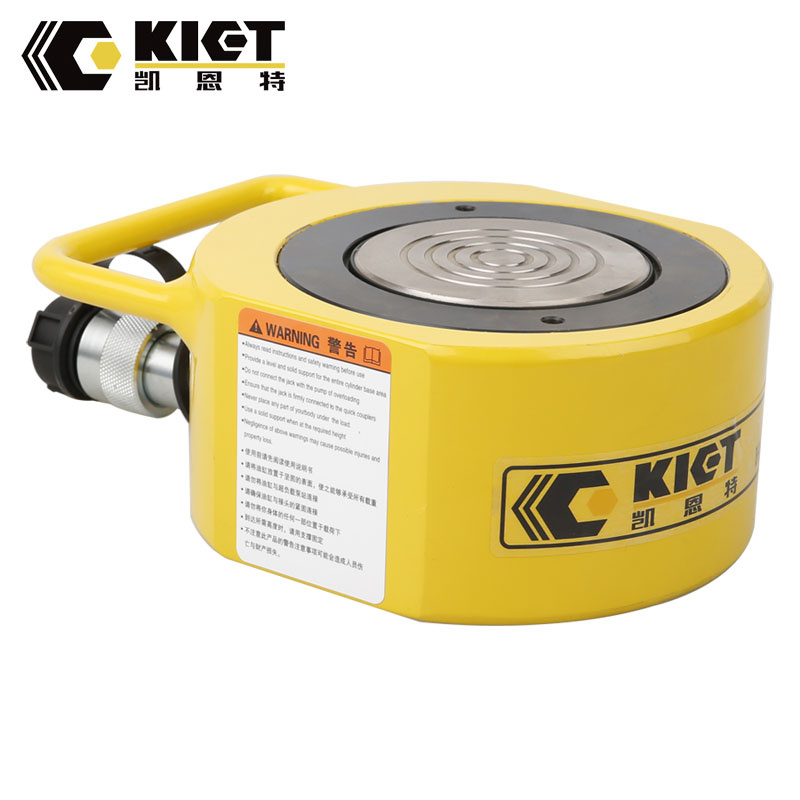

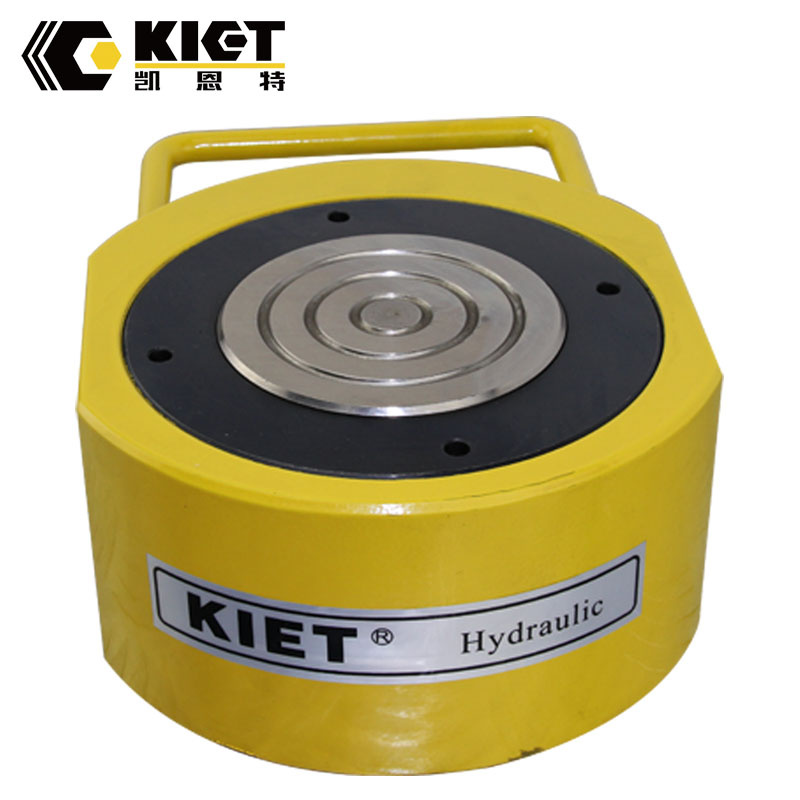

2.KET-RSM-750, 1000 and 1500 have handles for easy carrying.
3.Mounting holes permit easy fixturing.
4.High strength alloy steel for durability.
5.Single acting, spring return.
6.Hard chrome plated high-quality steel plungers.
7.Built-in scraper seal reduces contamination, extending cylinder life.
8.Baked enamel finish for increased corrosion resistance.
9.3/8 18NPT coupler and dust cap included on all models.
Parameters
Model Number | Cyl. Capa-city ton (kN) | Stroke (mm) | Collapsed Height A (mm) | Extended Height B (mm) | Outside Diameter D (mm) | Cylinder Bore Dia. E (mm) | Cylinder. Effective Area (cm2) | Oil Capcacity (cm3) | Plunger Dia. F (mm) | Weight (kg) |
| RSM-501) | 5 (45) | 6 | 32 | 38 | 58 x 41 | 28,7 | 6,5 | 4 | 25,4 | 1,0 |
| RSM-100 | 10 (101) | 12 | 43 | 54 | 82 x 55 | 42,9 | 14,5 | 18 | 38,1 | 1,4 |
| RSM-200 | 20 (201) | 11 | 51 | 62 | 101 x 76 | 60,5 | 28,7 | 32 | 50,8 | 3,1 |
| RSM-300 | 30 (295) | 13 | 58 | 71 | 117 x 95 | 73,2 | 42,1 | 55 | 63,4 | 4,5 |
| RSM-500 | 45 (435) | 16 | 66 | 82 | 140 x 114 | 88,9 | 62,1 | 99 | 69,8 | 6,8 |
| RSM-750 | 75 (718) | 16 | 79 | 95 | 165 x 139 | 114,3 | 102,6 | 164 | 82,6 | 11,3 |
| RSM-1000 | 90 (887) | 16 | 85 | 101 | 178 x 153 | 127,0 | 126,7 | 203 | 92,2 | 14,5 |
| RSM-1500 | 150 (1386) | 16 | 100 | 116 | 215 x 190 | 158,8 | 198,1 | 317 | 114,3 | 26,3 |
| RCS-101* | 10 (101) | 38 | 88 | 126 | 69 | 42,9 | 14,5 | 55 | 38,1 | 4,1 |
| RCS-201* | 20 (201) | 45 | 98 | 143 | 92 | 60,5 | 28,7 | 129 | 50,8 | 5,0 |
| RCS-302* | 30 (295) | 62 | 117 | 179 | 101 | 73,2 | 42,1 | 261 | 66,5 | 6,8 |
| RCS-502* | 45 (435) | 60 | 122 | 182 | 124 | 88,9 | 62,1 | 373 | 69,8 | 10,9 |
| RCS-1002* | 90 (887) | 57 | 141 | 198 | 165 | 127,0 | 126,7 | 722 | 92,2 | 22,7 |
Our Service:
KIET provide one year guarantee for all the hydraulic tools. We promise if there is any dysfunction of the hydraulic tools during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.
Packaging & Shipping:
We provide wooden packing for each hydraulic cylinder, which can perfectly protect, the shipping can be by express parcel, by air or by sea shipping.
Company Information:
Jiangsu Canete Machinery Manufacturing Co., Ltd. Is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in Hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
