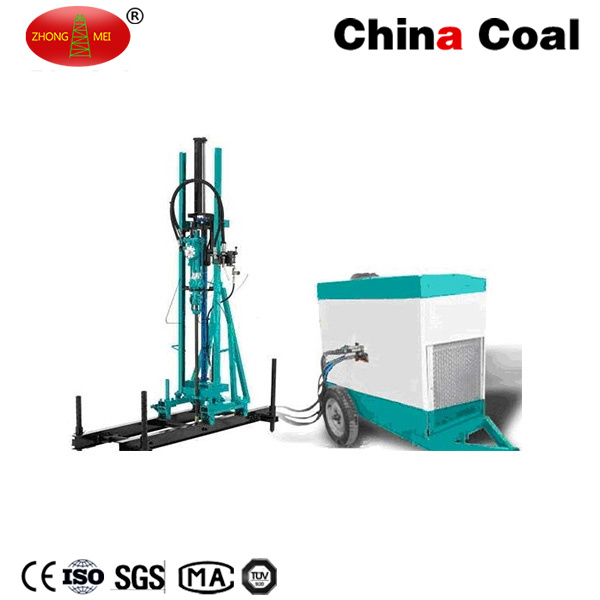

China Supplier Ql-Y28 Hydraulic Rock Drill for DTH Drilling

China Supplier Ql-Y28 Hydraulic Rock Drill for DTH Drilling
Price: US $ 10-10000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: QL-Y28
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight: 25kg
Striking Energy: 85kj
Striking Frequency: 46Hz
Striking Rotation Speed: 280r/Min
Structure: Vertical Drilling Machine
Layout: Vertical
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Precision: High Precision

Product Description

Specifications of China Supplier QL-Y28 Hydraulic Rock Drill for DTH Drilling
1. Hydraulic drill, high efficiency.
2. Widely used in mines and construction sites to mine stone or concrete.
3. Durable

China Supplier QL-Y28 Hydraulic Rock Drill for DTH Drilling treats hydraulic oil as working medium and get power from it. It's widely used in mines, constructions and other fields to mine stones, tearing down old buildings and do rescue and relief work. Its working efficiency is 5-10 times of pneumatic drill machine while its energy consumption is only one third of the pneumatic.

Constituent Parts of China Supplier QL-Y28 Hydraulic Rock Drill for DTH Drilling

1. Hydraulic rock gun
2. Electric type hydraulic power station.
3. Hydraulic propulsion system.

Features of China Supplier QL-Y28 Hydraulic Rock Drill for DTH Drilling

1. Low energy consumption, the total power of the whole system is 15kw, is only one third that of the pneumatic.
2. Small volume, light weight. It only weighs 27kg.
3. Low noise. Its noise is 10dBA lower than that of pneumatic.
4. High working efficiency, great power.
5. Durable and low price.
6. Portable, convenient installation, it's suitable for field work.


Parameter of China Supplier QL-Y28 Hydraulic Rock Drill for DTH Drilling

Weight

25kg

Striking energy

≥85kJ

Striking frequency

≤46Hz

Striking rotation speed

280r/min

Striking oil pressure

12-14Mpa

Striking amount of oil

44-55L/min

Working pressure

0.5-0.9Mpa

Wind quantity

>0.2m3/min

Working water pressure

0.5-0.9Mpa

Water quantity

>0.2m3/min

Diameter of drill rod

32-45mm
