| Price: | US $ 0.15-6.98/Piece |
|---|---|
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | 01200 |
|---|---|
| Technics: | Hot Forged, Zinc Plating, Nickel Plating, Cr3, Cr6 |

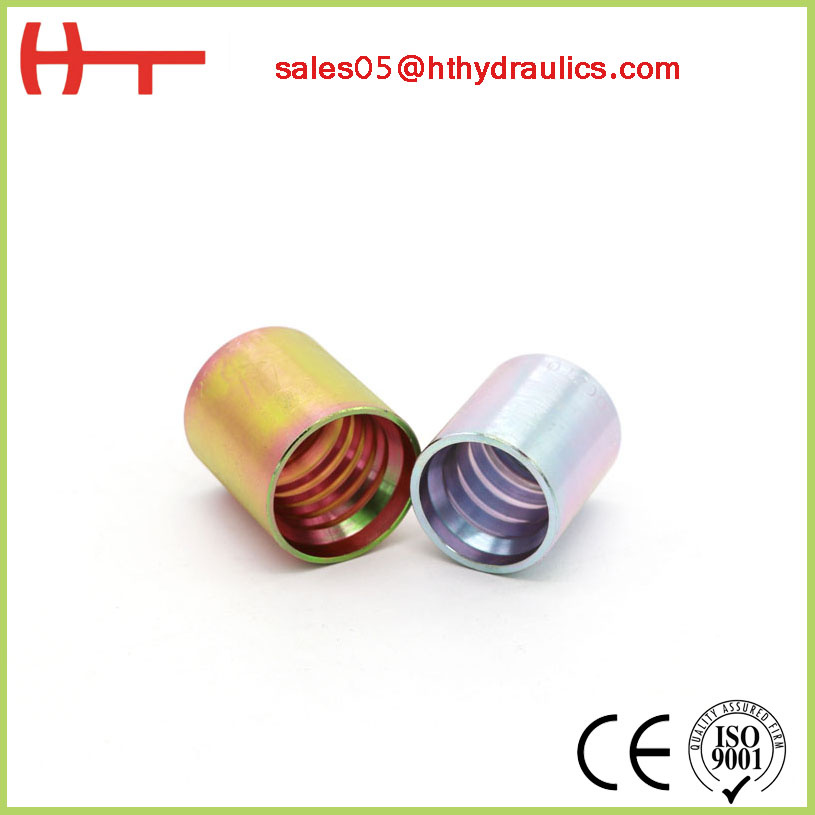

| Product Name: | Hydraulic Hose Fitting Ferrule/Sleeve/Socket |
| Application: | Hydraulic Systems Gas, Oil, Water |
| Color: | White, Yellow |
| Thread: | DIN,JIS, BSPP, BSPT, NPT |
| Service: | OEM ODM Service |
| Main Port: | Tianjin, Ningbo, Guangzhou, Shanghai |
| Business Type: | Manufacture |
| Match Hose: | R1 Hydarulic Hose |
| Salt Spray Testing: | 72hours |
| Standard: | BSW |
| Material: | Medium Carbon Steel |
| Connection: | Female |
PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | D | L | |
| 00110-03 | 5 | 3 | 17.5 | 27 |
| 00110-04 | 6 | 4 | 20.6 | 30 |
| 00110-05 | 8 | 5 | 20.8 | 31 |
| 00110-06 | 10 | 6 | 23.3 | 32 |
| 00110-08 | 12 | 8 | 27 | 34 |
| 00110-10 | 16 | 10 | 30 | 37 |
| 00110-12 | 20 | 12 | 34 | 43 |
| 00110-16 | 25 | 16 | 42.6 | 50 |
| 00110-20 | 32 | 20 | 52 | 59 |
| 00110-24 | 38 | 24 | 58 | 74 |
| 00110-32 | 51 | 32 | 72 | 78 |
| 01200-05 | 8 | 5 | 23 | 32 |
| 01200-06 | 10 | 6 | 25 | 32 |
| 01200-08 | 12 | 8 | 31 | 34 |
| 01200-10 | 16 | 10 | 34 | 39 |
| 01200-12 | 20 | 12 | 37 | 43 |
| 01200-14 | 22 | 14 | 40 | 43 |
| 01200-16 | 25 | 16 | 43 | 50 |
| 01200-20 | 32 | 20 | 51 | 59 |
| 01200-24 | 38 | 24 | 57 | 74 |
| 01200-32 | 51 | 32 | 70 | 78 |
| HOSE BORE | DIMENSIONS | |||
| PART NO. | DN | DASH | D | L |
| 00110-03A | 5 | 03 | 17.5 | 27 |
| 00110-04A | 6 | 04 | 20.6 | 30 |
| 00110-05A | 8 | 05 | 20.8 | 31 |
| 00110-06A | 10 | 06 | 23.3 | 32 |
| 00110-08A | 12 | 08 | 27 | 34 |
| 00110-10A | 16 | 10 | 30 | 37 |
| 00110-12A | 20 | 12 | 34 | 43 |
| 00110-16A | 25 | 16 | 42.6 | 50 |
| 00110-20A | 32 | 20 | 52 | 59 |
| 00110-24A | 38 | 24 | 58 | 74 |
| 00110-32A | 51 | 32 | 72 | 78 |
| PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | D | L | |
| 01100-03 | 5 | 3 | 17 | 28 |
| 01100-04 | 6 | 4 | 19 | 30 |
| 01100-05 | 8 | 5 | 21 | 32 |
| 01100-06 | 10 | 6 | 23 | 32 |
| 01100-08 | 12 | 8 | 28 | 34 |
| 01100-10 | 16 | 10 | 31 | 39 |
| 01100-12 | 20 | 12 | 34 | 43 |
| 01100-14 | 22 | 14 | 37 | 43 |
| 01100-16 | 25 | 16 | 41 | 50 |
| 01100-20 | 32 | 20 | 49 | 59 |
| 01100-24 | 38 | 24 | 55 | 74 |
| 01100-32 | 51 | 32 | 68 | 78 |
PART NO. | HOSE BORE | DIMENSIONS | |
| DN | DASH | L | |
| 00200-20 | 32 | 20 | 59 |
| 00200-24 | 40 | 24 | 74 |
| 00200-32 | 50 | 32 | 78 |
PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | D | L | |
| 00210-03 | 5 | 03 | 20.6 | 27 |
| 00210-04 | 6 | 04 | 22.2 | 30 |
| 00210-05 | 8 | 05 | 23 | 31 |
| 00210-06 | 10 | 06 | 25 | 32 |
| 00210-08 | 12 | 08 | 28.3 | 34 |
| 00210-10 | 16 | 10 | 31.5 | 37 |
| 00210-12 | 20 | 12 | 35.5 | 43 |
| 00210-16 | 25 | 16 | 45 | 50 |
| 00210-20 | 32 | 20 | 55 | 59 |
| 00210-24 | 38 | 24 | 62.5 | 74 |
| 00210-32 | 51 | 32 | 75.5 | 78 |
PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | D | L | |
| 03310-03 | 5 | 3 | 21 | 23 |
| 03310-04 | 6 | 4 | 23 | 30.5 |
| 03310-05 | 8 | 5 | 24 | 30 |
| 03310-06 | 10 | 6 | 26 | 32 |
| 03310-08 | 13 | 8 | 29 | 34 |
| 03310-10 | 16 | 10 | 33 | 37 |
| 03310-12 | 19 | 12 | 37 | 42 |
| 03310-16 | 25 | 16 | 46 | 51 |
| 03310-20 | 32 | 20 | 59 | 59 |
PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | D | L | |
| 00400-04 | 6 | 04 | 22 | 37.5 |
| 00400-06 | 10 | 06 | 25.5 | 39 |
| 00400-08 | 12 | 08 | 29 | 41 |
| 00400-10 | 16 | 10 | 32.5 | 43 |
| 00400-12 | 20 | 12 | 37 | 51 |
| 00400-16 | 25 | 16 | 46.5 | 61.5 |
| 00400-20 | 32 | 20 | 57 | 67.5 |
| 00400-24 | 40 | 24 | 65 | 75 |
| 00400-32 | 50 | 32 | 79 | 79 |
| PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | D | L | |
| 01400-04 | 6 | 4 | 22 | 37.5 |
| 01400-06 | 10 | 6 | 27.5 | 39 |
| 01400-08 | 12 | 8 | 31.5 | 41 |
| 01400-10 | 16 | 10 | 34 | 43 |
| 01400-12 | 20 | 12 | 39 | 51 |
| 01400-14 | 22 | 14 | 43.5 | 54 |
| 01400-16 | 25 | 16 | 46.5 | 61.5 |
| 01400-20 | 32 | 20 | 55.5 | 67.5 |
| 01400-24 | 38 | 24 | 63.5 | 75 |
| 01400-32 | 51 | 32 | 78 | 79 |
| PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | D | L | |
| P00401-20 | 32 | 20 | 53 | 67.5 |
| P00401-24 | 40 | 24 | 61 | 75 |
| P00401-32 | 50 | 32 | 77 | 79 |
| Volume | 0.022m³ for one carton |
| Weight | According to your order |
| Packaging Details | The normal package is carton box(Size:L*W*H). The carton can hold 300 big size ferrules and 500 small size ferrules. Or we can pack it according to customers special request. |
| Shipping Service | 1.Orders will be dispatched in 30 days after payment, depending on quantities. 2.We Always choose the most economical and reliable shipping company to make sure you receive the goods in time. 3.The tracking number will be offered once the consignment is shipped. 4.Professional customer service to answer your questions regarding you |

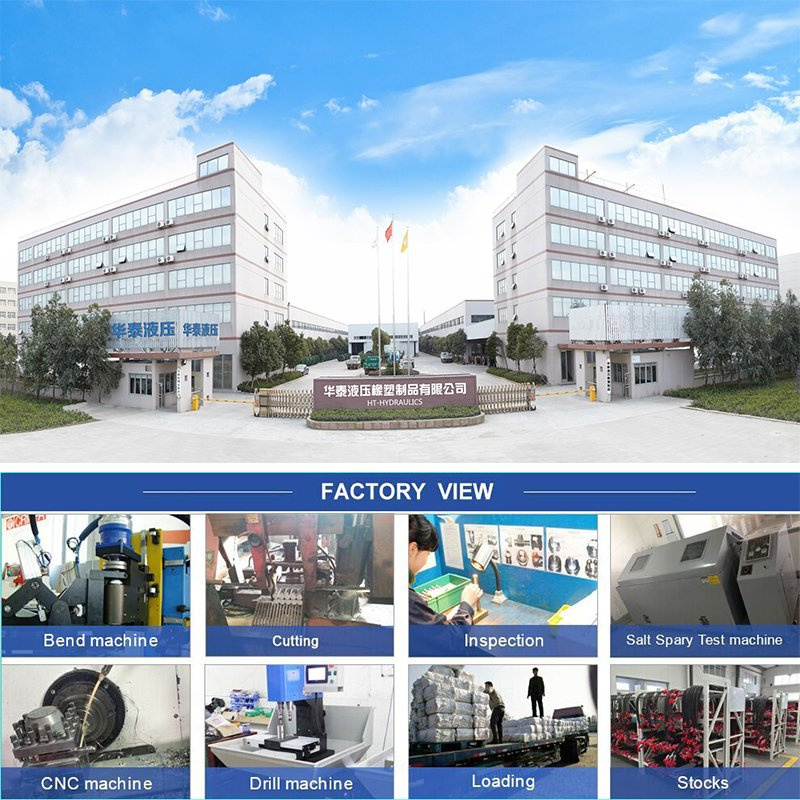

Jingxian Huatai Hydraulic Rubber Co., Ltd is located in Jingxian, Hebei Province which is well known as the hometown of hydraulic hose and tube. The company enjoys a superior geographical location, 300km far from the capital city Beijing and 1 hour by high speed rail train; 1000km far from Shanghai and 4 hours by high speed rail train. Moreover, the location is close to Tianjin and Qingdao ports and convenient for import and export.

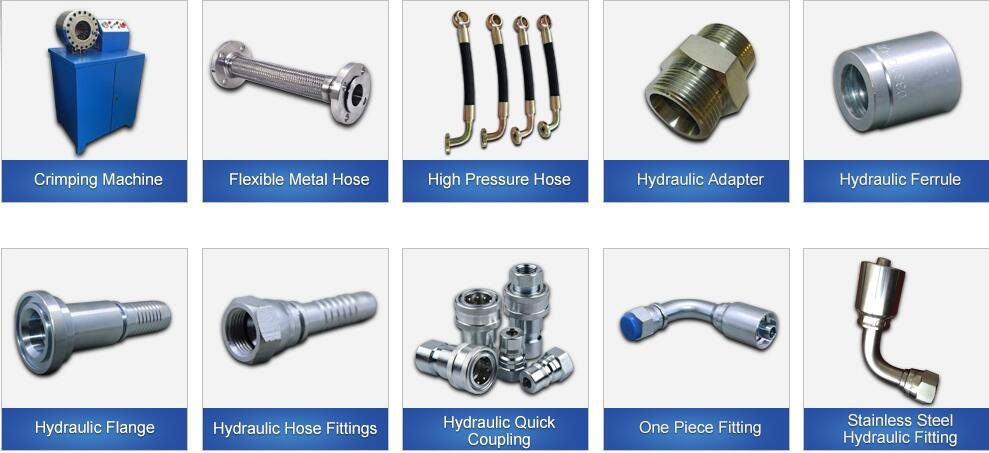

We specialized in making Hydraulic fittings, Hydraulic adapters, Hydraulic couplings, Hydraulic hose fittings, Hydraulic ferrule, Hydraulic flange and so on, with high quality and the best price.
Our products are used in precision parts,machinery accessories,truck and auto parts,industral parts,mining accessories,off-shore applicances,agricultral facilities and construction material ect…
Other standard hose fittings are available according to customer's requirements.If you have any questions about our products , please contact me any time. Any suggestion about our factory or our products is appreciated! Welcome to visit!
FAQ
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
