| Prod Model: |
CHJJ-1500 |
| Gross Motor: |
11kw |
| Water Consumption: |
4m3/H |
| Gross Weight: |
5000kgs |
| Max Cutting Width: |
1300mm |
| Max Cutting Height: |
1500mm |
| Column Of Diameter: |
≥600 |
| Type: |
CNC Cutting Machine |
| Usage: |
Onyx Onyx Limestone Sandstone |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
Product Description

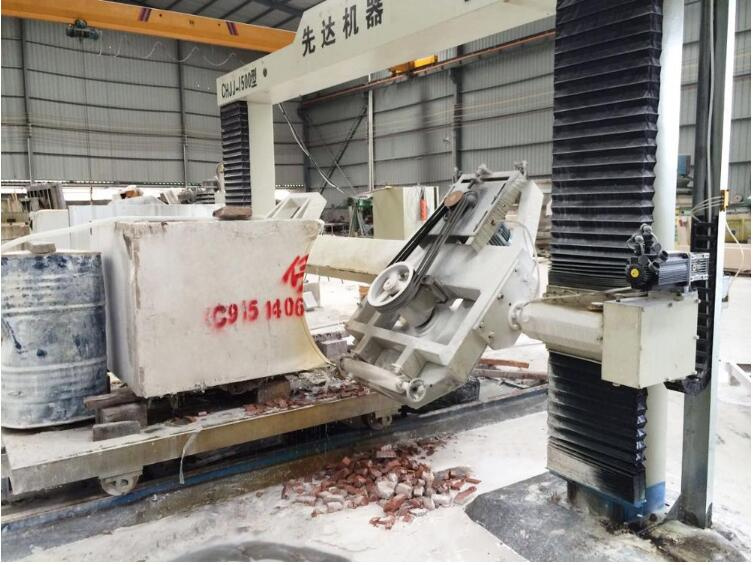

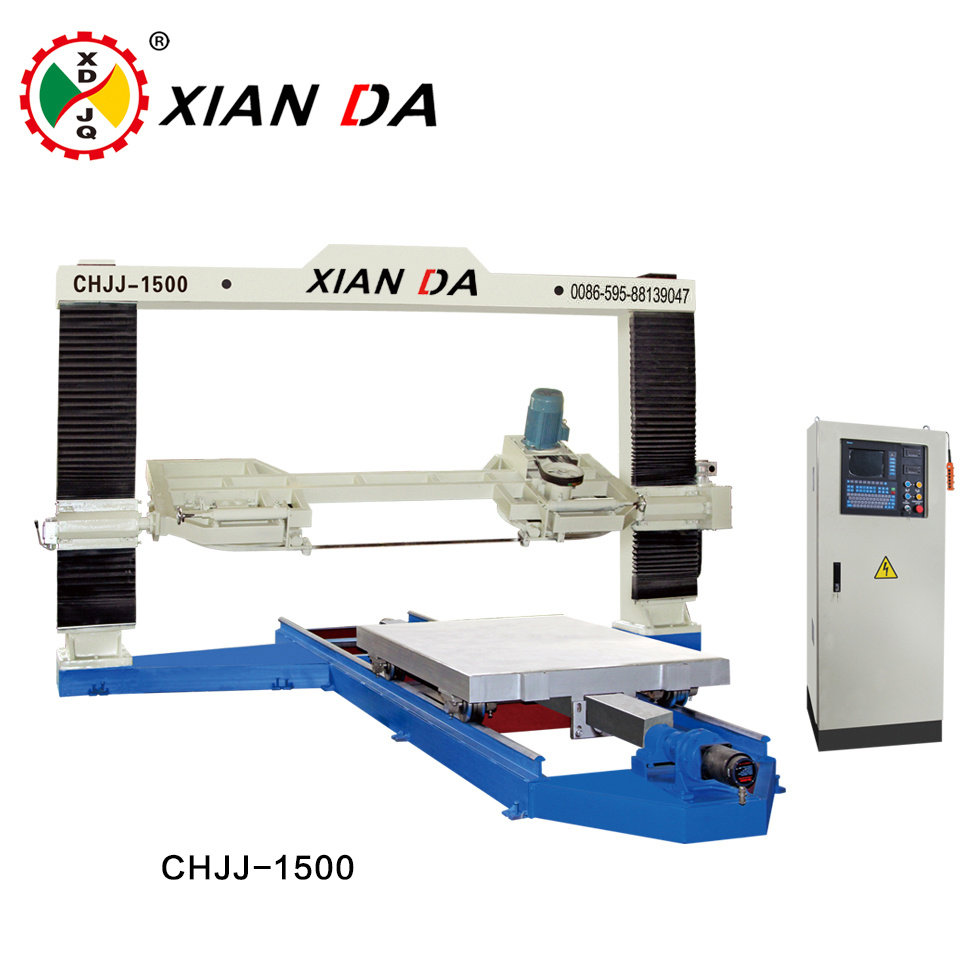

Description:CHJJ-1500 XIANDA BANDSAW MARBLE MACHINE

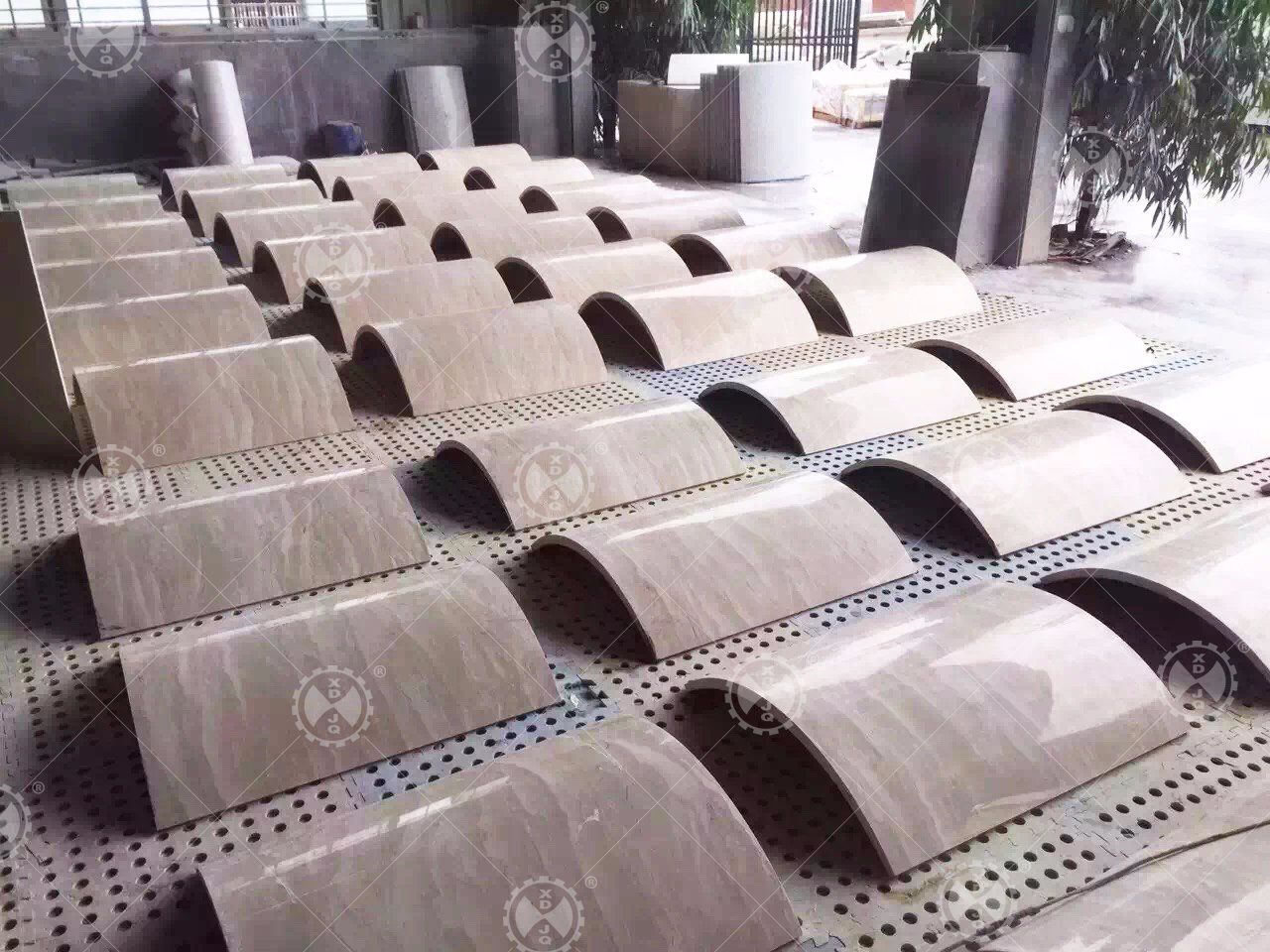

Circular slab Stone cutting machine adopts CNC system Control.the band saw which operates around the central axis, slicing blocks is controlled by the worktable automatic feeding. it has the features of lower energy consumption and small saw kerfs (3mm saw kerfs), saving blocks, simple operation, high precision and high efficency. Processing diameter range is bigger than Ø600mm(including Ø600mm), which is the ideal choice for processing the circular arc slab stone material.
Technical Parameter | Parameter | Unit | CHJJ-1500 |
| Column of diameter | mm | 600 |
| Max cutting height | mm | 1500 |
| Max cutting width | mm | 1300 |
| Outline dimension | mm | 6300*5200*3200 |
| Main motor | kw | 4 |
| Gross motor | kw | 11 |
| Gross weight | kg | 5000 |
| Water consumption | m3/h | 4 |
Xianda machinery
Fujian Jinjiang Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.
Exhibition
Other stone cutting machines we produce:
1) Diamond wire saw machine,
2) Bridge cutting machine, bridge saw
3) a series of stone machine for special shape processing. FAQ
1. Manufacturer Profiles
We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.
We are a company which is specially for producing stone machines for exporting.
2. Quality Control
We have our own experienced QC.
Our machine will be strictly inspected.
We will provide a Testing Video for each machines before shipping out if required by customer.
3. Delivery time
Based on order quantity, normally three weeks against payment.
4. Warranty
All the machines have one year warranty.
5. After Services
Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.
6. Contact
Office Cell: +86-13959953983
Add: Anqi Road, Wuli Industrial Park, Jinjiang City, Fujian, China.

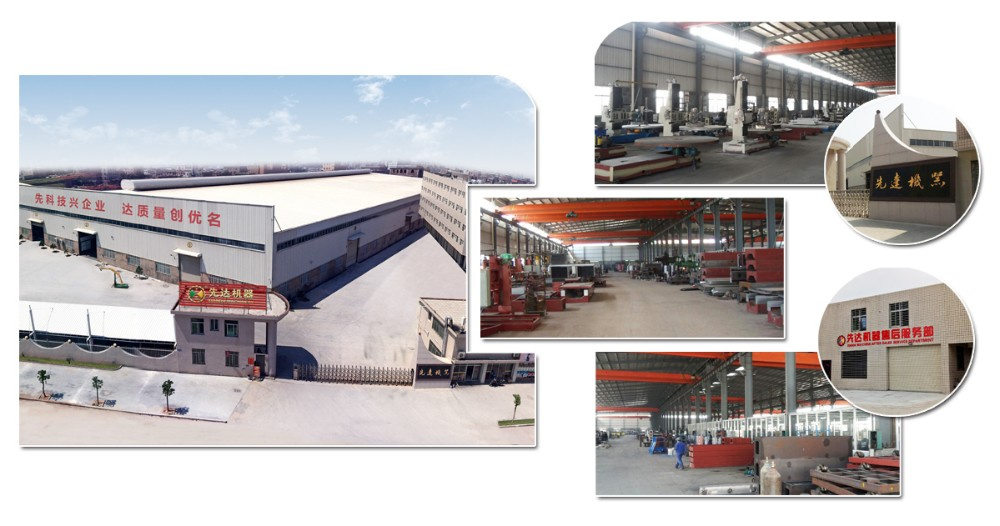

Fujian Xianda Machinery Co., Ltd was established in 1985 and covers an area of 20, 000 Square meters. We are dedicated to the development and production of a series of column making machine, stone machine, wire saw stone cutting machine, block trimming machine, Infrared bridge saw, profiling stone machine.
