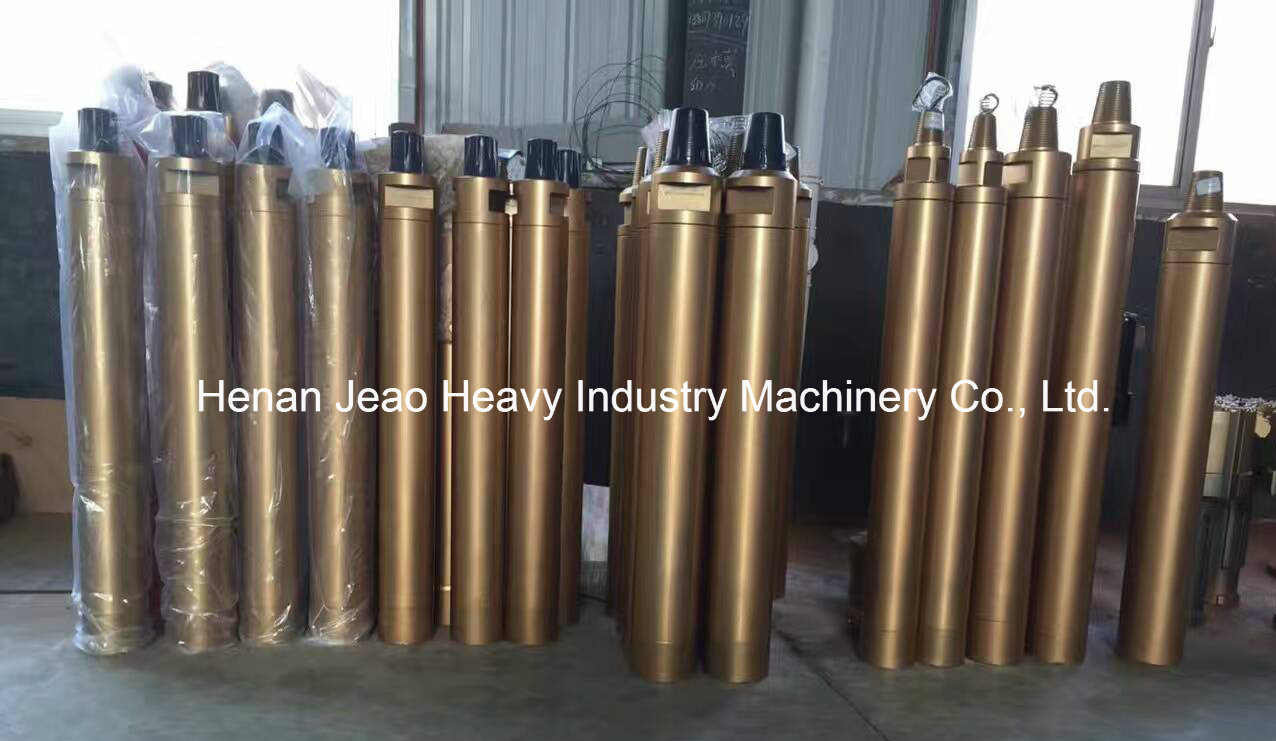

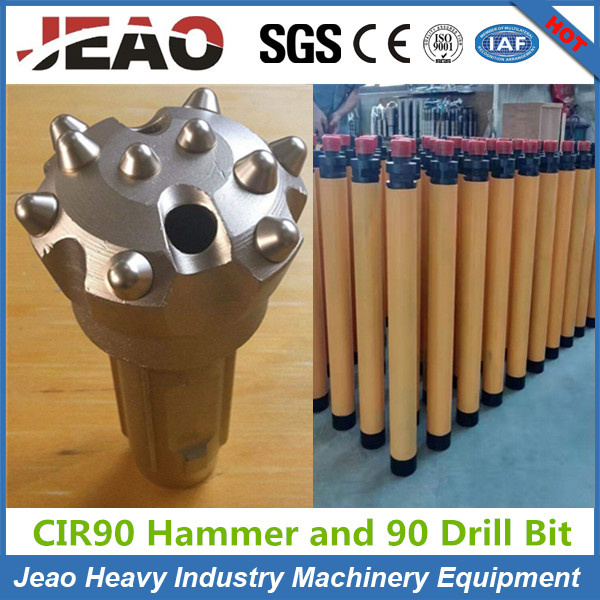

CIR90 Low Air Pressure DTH Hammer for Mining Drilling

Name: CIR90 Low Air Pressure DTH Hammer for Mining Drilling
Brand: tool-buy.com
SKU: 731204452
Availability: InStock
Rating: 5 (127 reviews)

Price:	US $ 100-200/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Henan Jeao Heavy Industry Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	CIR90
Size:	90mm
Bit Shank:	CIR90
Weight:	22kg
Working Pressure:	4-10
Air Consumption:	6-10m3/Min

Product Description

Product Description

Application:

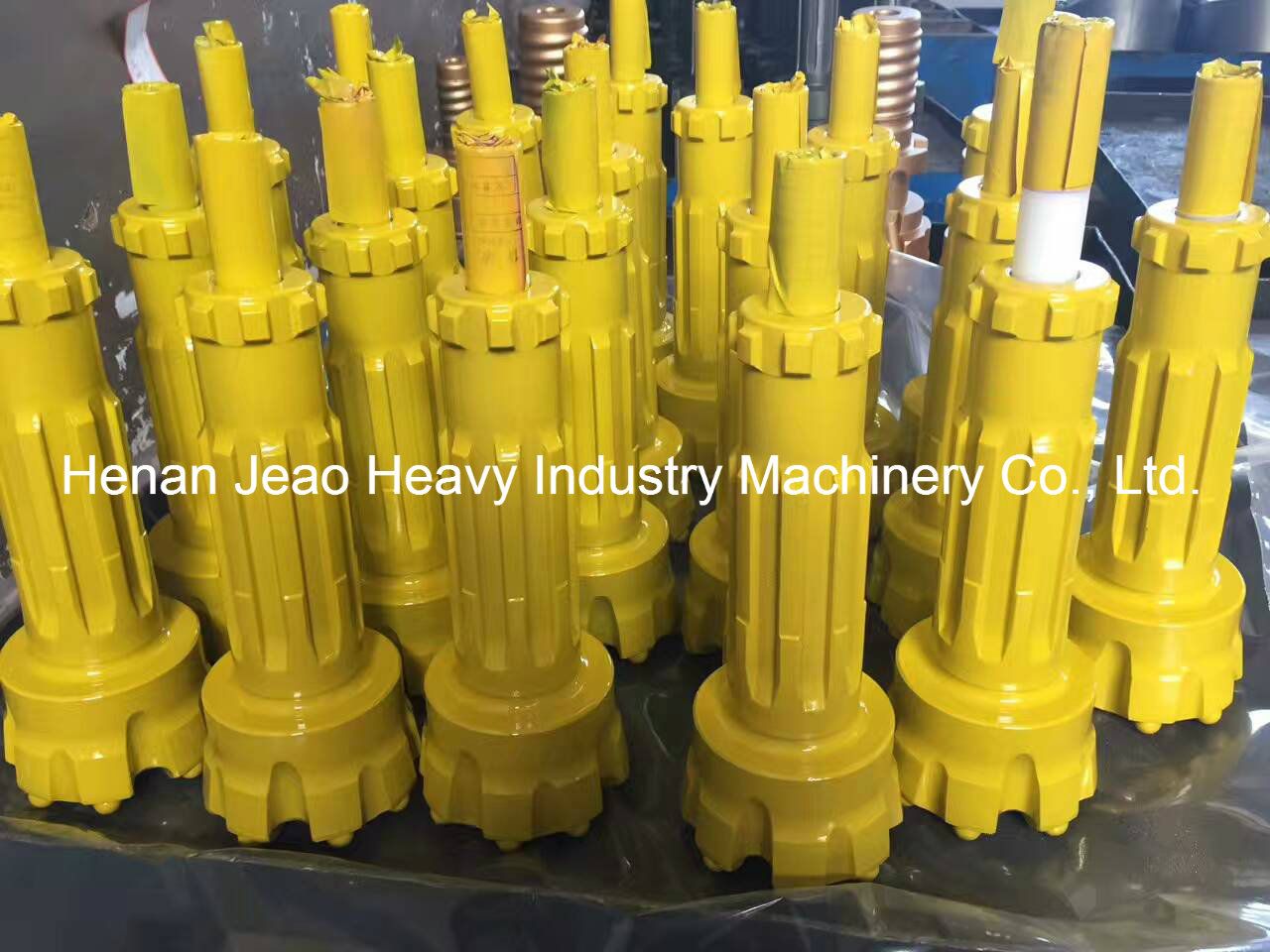

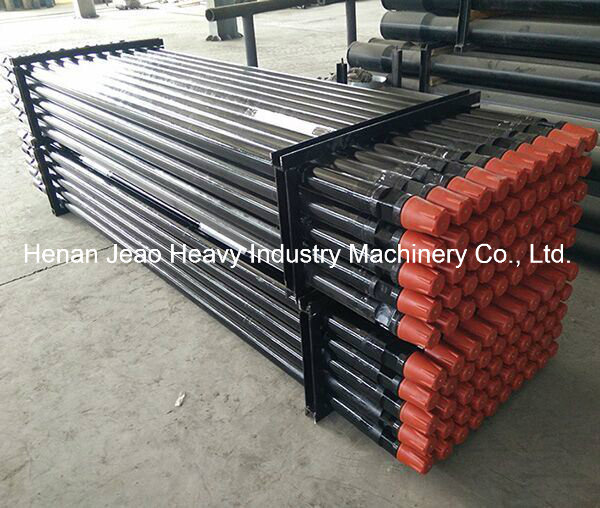

DTH hammers are used for blast hole drilling and water well drilling project. working with DTH drilling pipe and DTH drill bit, mainly applied in Mining,Marble quarry or well drilling and other construction projects.

Our Advantages:

1.WE CAN PROVIDE THE COMPLETE SOLUTION ( DTH drill bit, DTH hammer, DTH Drill Rod, Air Compressor, DTH Drilling rig and added value services)
2.Lower energy consumption and higher impact frequency.the drilling speed is 15%~30% higher than other series DTH Hammer.
3.Simple structure,reliable parts,long life,easy and cheap maintenance.
4.Lower air and oil consumption.The oil consumption is about 10% lower than the one with foot valve.
5.The check valve can be replaced to the one with bigger ail controlling hole to provide more efficient cuttings discharge.

Low Air Pressure DTH Hammer Technical Date :

CIR series Low air pressure DTH hammer includes: CIR76, CIR 90, CIR110, CIR150, CIR170, CIR200 etc.

Model No	Length(mm)	Top Sub Thread	Out Dia (mm)	Weight(Kg)	Bit Dia(mm)	Working Pressure(Bar)	Air Consumption (m3/min)
CIR76	811	F48*10 PIN	66	13.5	76	4~10	6~10
CIR90	840	F48*10 PIN	80	22	90~120	4~12	8~12
CIR110	871	API 2 3/8 REG BOX	98	33	110~150	6~12	8~12
CIR130	890	API 2 3/8 REG BOX	112	48.5	130~175	6~12	8~12
CIR150	904	F70*10 PIN	136	70	150~200	6~12	10~16
CIR170	1030	F100*28 PIN	156	96	170~250	8~14	12~18
CIR200	1058	F100*28 PIN	182	130	200~250	8~14	16~20

High Air Pressure DTH Hammer Technical Date :

DHD/COP Series DTH Hammer

DTH hammer type	DHD3.5	DHD340	DHD350	DHD360	DHD380	DHD1120
Bit shank	DHD3.5	COP44 DHD340	COP54 DHD350R	COP64 DHD360	COP84 DHD380	DHD1120
Hole range(mm)	90-115	110-135	135-155	155-203	195-254	305-445
Connection thread	API 2 3/8"Reg	API 2 3/8"Reg	API 2 3/8"Reg	API 3 1/2"Reg	API 4 1/2"Reg	API 6 5/8"Reg
			API 3 1/2"Reg
Working pressure	1.0-1.5Mpa	1.0-2.5Mpa	1.0-2.5Mpa	1.0-2.5Mpa	1.0-2.5Mpa	1.0-2.5Mpa

QL Series DTH Hammer

DTH hammer type	QL40	QL50	QL60	QL80
Bit shank	QL40	QL50	QL60	QL80
Hole range(mm)	110-135	135-155	155-203	195-254
Connection thread	API 2 3/8"Reg	API 2 3/8"Reg	API 3 1/2"Reg	API 4 1/2"Reg
		API 3 1/2"Reg
Working pressure	1.0-2.5Mpa	1.0-2.5Mpa	1.0-2.5Mpa	1.0-2.5Mpa

SD series DTH Hammer

DTH hammer type	SD4	SD5	SD6	SD8	SD10	SD12
Bit shank	SD4	SD5	SD6	SD8	SD10	SD12
Hole range(mm)	110-135	135-155	155-203	195-254	254-311	305-445
Connection thread	API 2 3/8"Reg	API 2 3/8"Reg	API 3 1/2"Reg	API 4 1/2"Reg	API 6 5/8"Reg	API 6 5/8"Reg
		API 3 1/2"Reg
Working pressure	1.5-2.0Mpa	1.0-2.5Mpa	1.0-2.5Mpa	1.0-2.5Mpa	1.0-2.5Mpa	1.0-2.5Mpa

MISSION Series DTH Hammer

DTH hammer type	MISSION4	MISSION5	MISSION6	MISSION8
Bit shank	MISSION4	MISSION5	MISSION6	MISSION8
Hole range(mm)	110-135	155-190	155-203	195-254
Connection thread	API 2 3/8"Reg	API 2 3/8"Reg	API 2 7/8"Reg	API 4 1/2"Reg
		API 3 1/2"Reg	API 3 1/2"Reg
		API 2 7/8"Reg	2 7/8"IF
Working pressure	1.2-2.0Mpa	1.3-2.3Mpa	1.5-2.5Mpa	1.5-3.0Mpa

NUMA Series DTH Hammer

DTH hammer type	NUMA100	NUMA120	NUMA125
Bit shank	NUMA100	NUMA120	NUMA125
Hole range(mm)	254-311	305-445	305-445
Connection thread	API 6 5/8"Reg	API 6 5/8"Reg	API 6 5/8"Reg
Working pressure	1.0-2.5Mpa	1.0-2.5Mpa	1.0-2.5Mpa
