| Prod Model: |
HX115 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: 105mm--1600mm: |
Can Be Customized |
| Usage: |
Stone Cutting |
| Manufacturing Arts: |
Hot Press |
| Kind: |
Diamond Blade |
| Saw Blade External Diameter: |
105mm, 115mm, 125mm, 175mm |
| Hole Size: |
20/22.23/25.4mm |
| Segment Height: |
10mm |
| Thickness: |
1.2-1.4mm |
Product Description

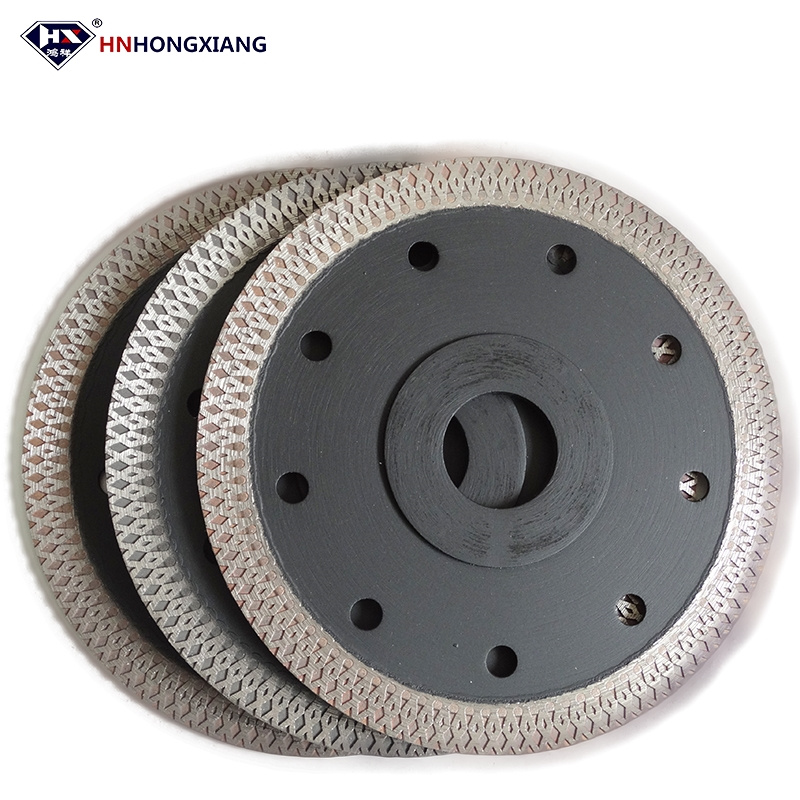

Name: X turbo super thin diamond blade for ceramic tiles
Size:
| Diameter | Hole Size | Thickness | Segment Height | |
| 105mm | 20/22.23mm | 1.2mm | 10mm | |
| 115mm | 22.23mm | 1.2mm | 10mm | |
| 125mm | 22.23mm | 1.2mm | 10mm | |
| 175mm | 22.23mm | 1.4mm | 10mm | |
Usage: Mainly used for cutting granite, marble,ceramic tiles.
Specification:
1: Long life
2: Hot press
3: Super thin
4:No chipping
5: High efficiency
Other diamond Product:
Diamond saw blade for masonry
Usage:
Designed for marble, granite, concrete, asphalt etc superhard stone etc
Advantage
--- Fast cutting speed, high cutting efficiency
--- Long cutting life
--- Best diamond grits to choose
--- Mature production technology, low cost
--- Different grade to choose
--- Offer customized service
Size:
Diameter: 1000mm
Hore: 25.4mm, 50mm
Height: 7mm, 8mm, 10mm, 12mm, 15mm
Available Size:
--- Diameter: 250mm-1200mm
--- Bore: 25.4mm, 50mm, 60mm etc.
---Thickness: 3mm-6.4mm
---Segment height: 7mm, 10mm, 12mm, 15mm
Features
Universal wet cutting blades.
Desktop cutting machine, Professional cutting machine
Max: 75m/s
Water: ≤ 125mm 1L; ≥ 350mm, 3-5L/min;
Superiority:
----Any Size Can Be Customized.
----We are the manufacturer, we are the source.
So we can guarantee the quality and also provide the most competive price.
| Stone professional saw blade |
| Outer Diameter | Arbor | Segment |
| Inches | Mm | Mm | Size | Number |
| 10'' | 250 | 22.23 | 38×2.6×8/10 | 18 |
| 12'' | 300 | 25.4 | 40×3.0×10/12 | 20 |
| 14'' | 350 | 25.4 | 40×3.2×10/12 | 24 |
| 16'' | 400 | 25.4 | 40×3.4×10/12 | 28 |
| 18'' | 450 | 25.4 | 40×3.6×10/12 | 32 |
| 20'' | 500 | 25.4 | 40×3.6×10/12 | 35 |
| 24'' | 600 | 25.4 | 40×4.2×10/12 | 42 |
| 26'' | 700 | 25.4/50 | 40*4.5*10/12/15 | 45 |
| 30'' | 800 | 25.4/50 | 40*4.8*10/12/15 | 50 |
| 36'' | 900 | 25.4/50 | 40*5.4*10/12/15 | 60 |
| 42'' | 1000 | 25.4/50 | 40*6*10/12/15 | 70 |
| 48'' | 1200 | 25.4/50 | 40*6.4*10/12/15 | 80 |
