| Prod Model: |
FY-CLP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Single Acting Standard Pancake Lock Nut Hydraulic |
| Color: |
Yellow or Customized |
| Working Pressure: |
700bar |
| Model Number: |
Fy-Clp-602/Fy-Clp-5002 |
| Characterstic: |
Single-Acting, Load Return |
| Capacity: |
60t-500t |
| Storke: |
45- 50mm |
| OEM: |
Available |
| Warranty: |
1 Year |
| Shipment: |
by Sea, Air or Express |
Product Description

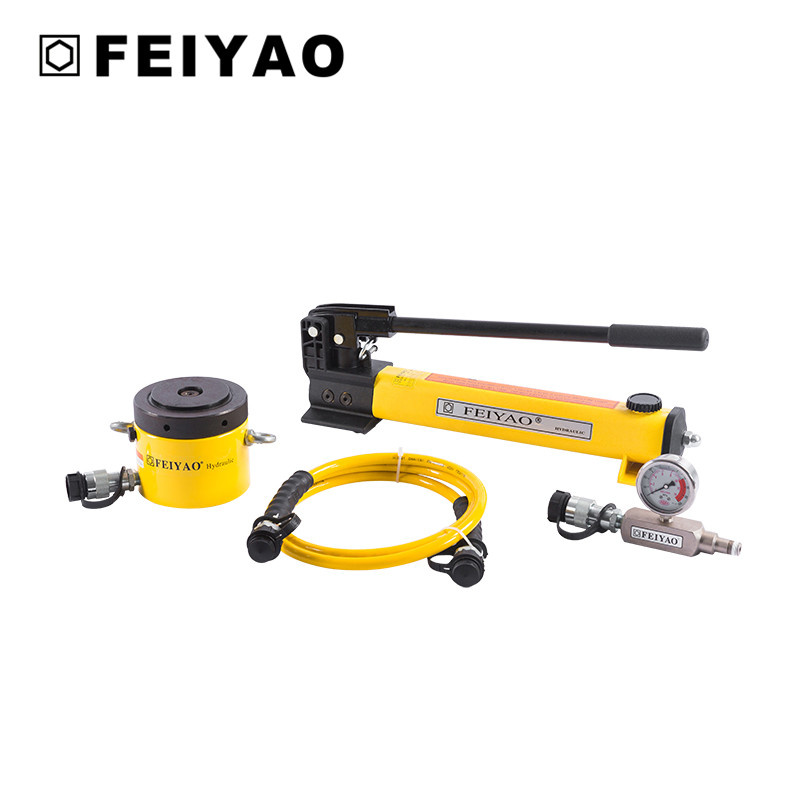

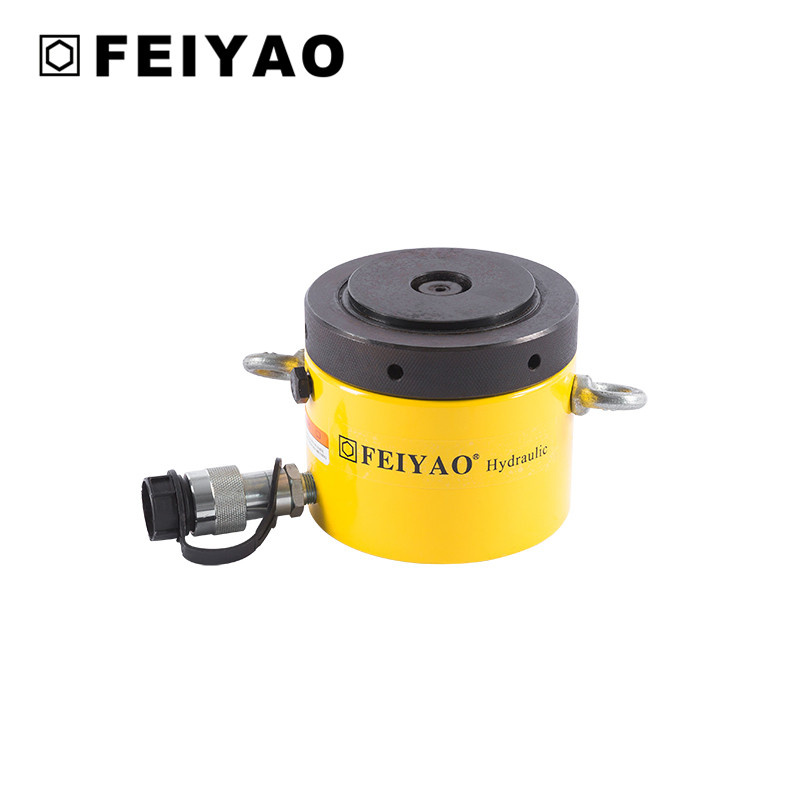

Single Acting Standard Pancake Lock Nut Hydraulic Ram
Features:1. Flat design for use in confined areas
2. When low height and high force is required
3. The solution to lift the first few centimetres
4. Lock nut for mechanical load holding over a long period of time
5. ASME B30.1 design qualification testing approval
6. Single-acting, load return
7. Optional special synthetic coating for improved corrosion resistance and lower friction for smoother operation to withstand side load forces up to 3% of rated cylinder capacity without scoring
8. Overflow port functions as a stroke limiter
9.CR-400 coupler and dustcap included on all modelsParameter| Model | Pressure
@700bar ton (KN)
| Stroke (mm)
| Effective Area (cm2 )
| Oil Capacity (cm3 )
| Closed Height
(mm)
| Extending Height
(mm)
| Out Diameter
(mm)
| Weight (kg)
|
FY-CLP-602
| 60(578)
| 50
| 86.6
| 433
| 125
| 175
| 140
| 15
|
FY-CLP-1002
| 100(978)
| 50
| 146.8
| 734
| 137
| 187
| 175
| 26
|
FY-CLP-1602
| 160(1511)
| 45
| 231.3
| 1040
| 148
| 193
| 220
| 44
|
FY-CLP-2002
| 200(1955)
| 45
| 285.6
| 1284
| 155
| 200
| 245
| 57
|
FY-CLP-2502
| 250(2489)
| 45
| 366.8
| 1649
| 159
| 204
| 275
| 74
|
FY-CLP-4002
| 400(3822)
| 45
| 559.5
| 2515
| 178
| 223
| 350
| 134
|
FY-CLP-5002
| 500(4977)
| 45
| 730.6
| 3285
| 192
| 237
| 400
| 189
|
Description: Single acting pancake lock nut jack is suitable for the requirements of piston stretch long time continued support load operation, the safety of the highly effective characteristic and mechanical load. For example, the concrete pouring and bridge erection support.
Single acting piston load reduction design, throughout the entire stroke length of thread line and the lock ring. Operation is very simple, that is lifting the load first, then screw lock ring, make its and jack body to squeeze into an organic whole, to release the pressure of liquid, rely on the mechanical strength to support the load.
All models can only be vertical assignments, optional cant suitable standard socket in order to reduce the risk of lateral pressure.
Single acting piston load reduction design, nut locking load more secure.Application:Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, ship building, sub railway, railway, hydroproject, construction and maintenance.Company Introduction
Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.
Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
PLC synchronous lifting system;
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic bolt tensioners;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine;
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TONNAGE; 2. STROKE; 3. CLOSED HEIGHT. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.

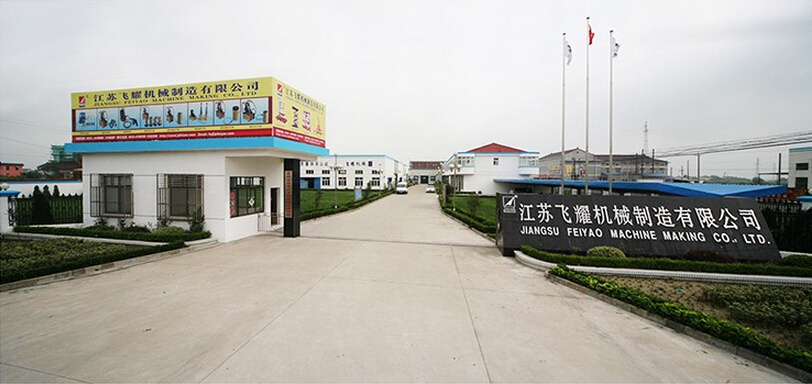

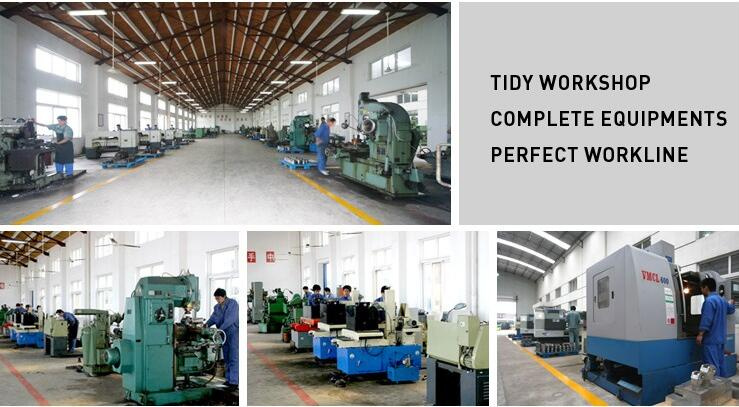

Factory Show
