| Prod Model: |
CNC-3000 |
| Max Processing Size: |
3000*3000*1500mm |
| Dimension Of Worktable: |
2500*1300mm |
| Main Motor: |
7.5kw |
| Gross Motor: |
11kw |
| Outline Dimension: |
7500*6300*3800mm |
| Gross Weight: |
6000kg |
| Water Consumption: |
4m3/H |
| Advantage: |
Multi Function with Good Quality and Price |
| Key Words: |
Stone Machine |
| Warranty Time: |
One Year |
| Type: |
CNC Cutting Machine |
| Usage: |
Block |
| Application: |
Stone Machinery |
| Source Voltage: |
380V |
| Automation: |
Automatic |
| Certification: |
SGS |
Product Description

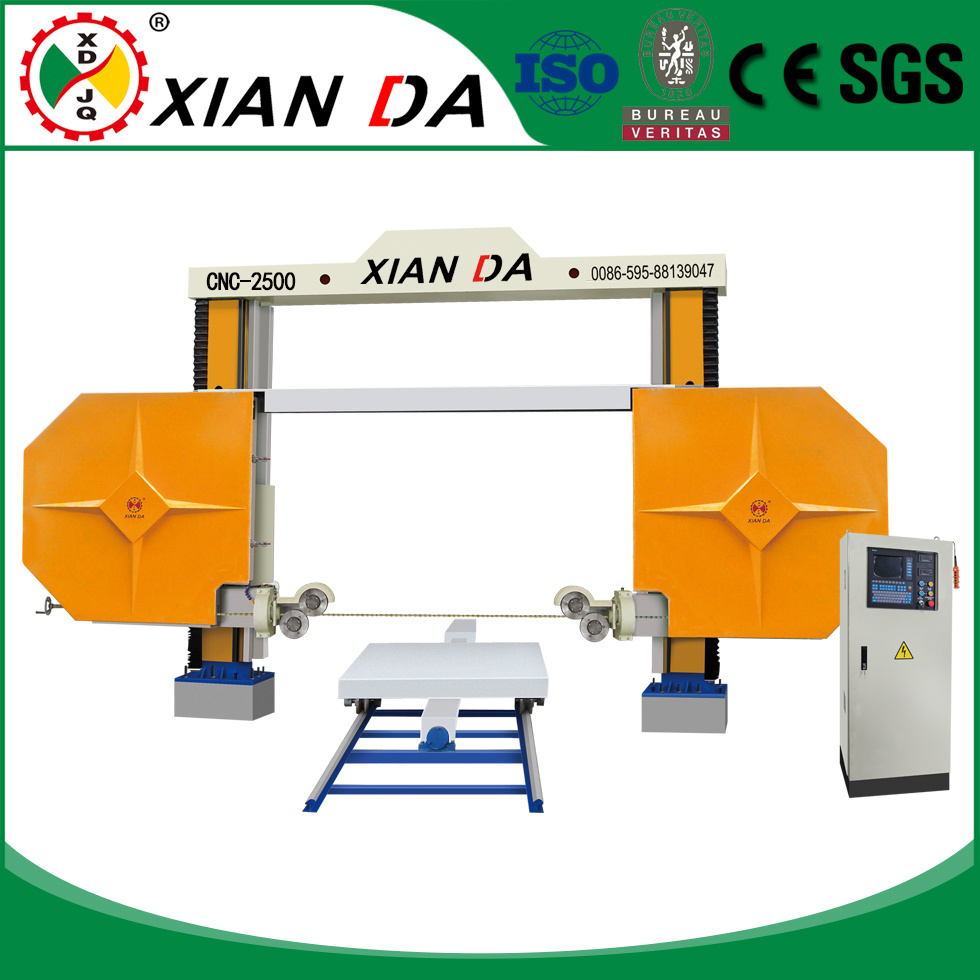

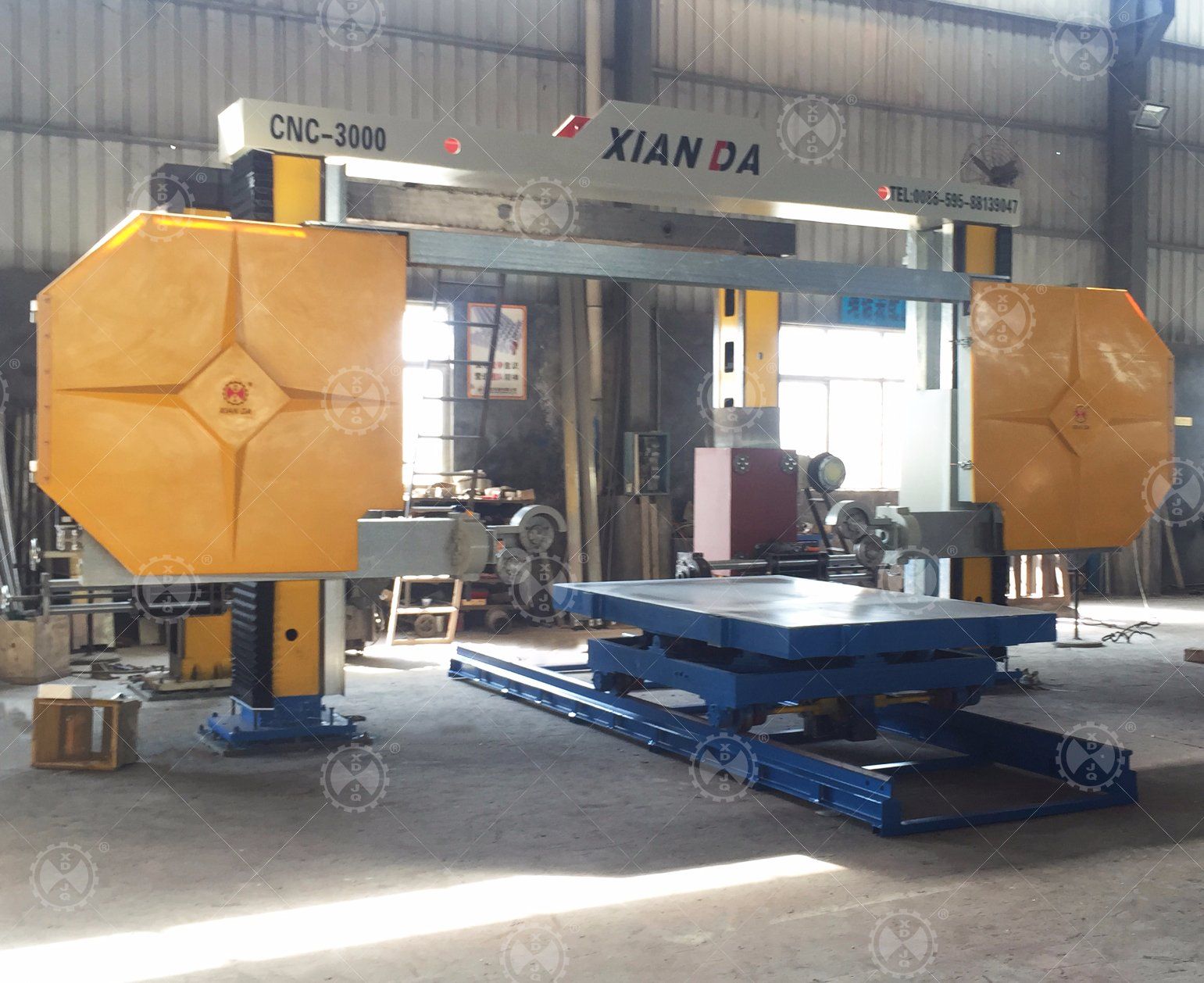

CNC - 3000 Diamond wire saw stone profiling cutting machine
CNC -2000 diamond wire saw stone cutting machine is a good choice for irregular stone processing. Easy to operate, it can cut many special shape.

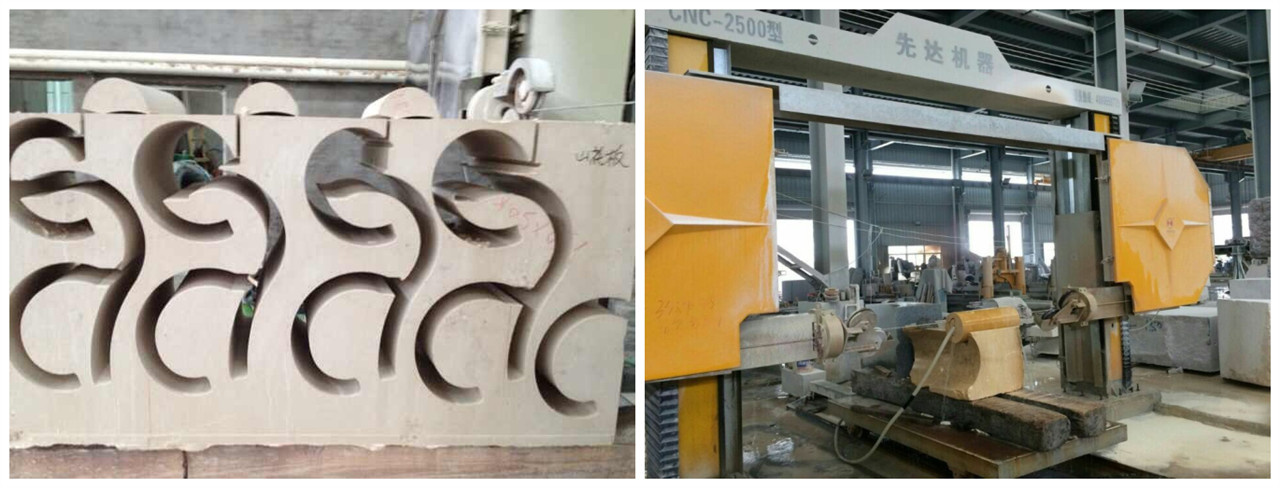

CNC - 3000 Diamond wire saw stone profiling cutting machine . Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.
Technical Parameter| Parameter | Unit | CNC-2000 | CNC-2500 | CNC-3000 |
| Max processing size | mm | 3000*2000*1500 | 3000*2500*1500 | 3000*3000*1500 |
| Dimension of worktable | mm | 2500*1300 | 2500*1300 | 2500*1300 |
| Main motor | kw | 7.5 | 7.5 | 7.5 |
| Gross motor | kw | 11 | 11 | 11 |
| Outline dimension | mm | 6500*6300*3800 | 7000*6300*3800 | 7500*6300*3800 |
| Gross weight | kg | 5000 | 5500 | 6000 |
| Water consumption | m3/h | 4 | 4 | 4 |

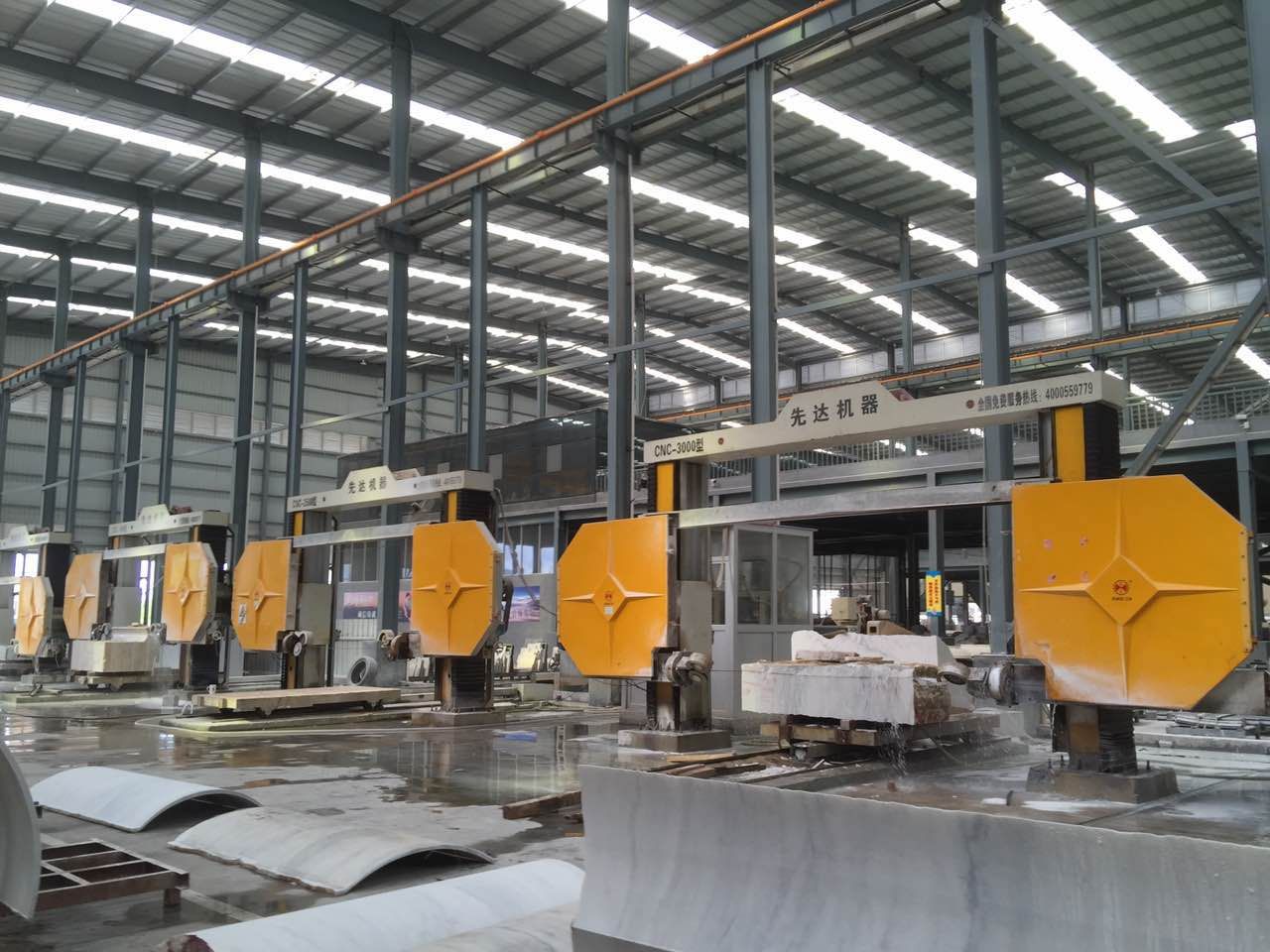

Xianda machinery
Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.Exhibition
Our Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
Key words: stone machine, wire saw machine, stone profiling.
