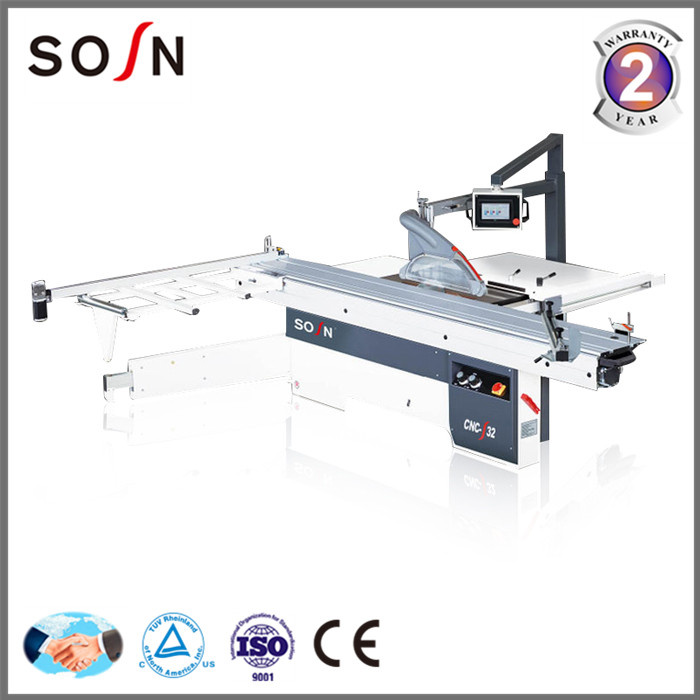

CNC-32 Precision Sliding Table Panel Saw for Woodworking Machine

CNC-32 Precision Sliding Table Panel Saw for Woodworking Machine
Price: US $ 6000-8500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: CNC-32
Dimension Of Sliding Table: 3200*400mm
Gross Cut Capacity: 3200mm
Main Motor: 5.5kw
Scoring Motor: 1.1kw
Tilting Saw Blade: 0-45
Saw Blade Diameter: 300mm(250-400mm)
Speed Of Main Saw Spindle: 4500/6000rpm
Main Spindle Diameter: 30mm
Type: Table Panel Saw
Layout: Horizontal
Controlling Mode: CNC
Automatic Grade: Automatic
Precision: High Precision
Certification: ISO

Product Description

Vedio: https://www.youtube.com/watch?v=JcJChTb17Gk
Details:  This CNC panel saw is all automatic except scoring saw and sliding table.
1  Automatic rip fence



 2 Automatic down and up(Italy imported Freud brand)

3.Thickened sliding table
      4. automatic degree setting


     5.This linear guide inner structure import form Italy.

    6.scoring saw is manual down and up,use button,turn right and left.

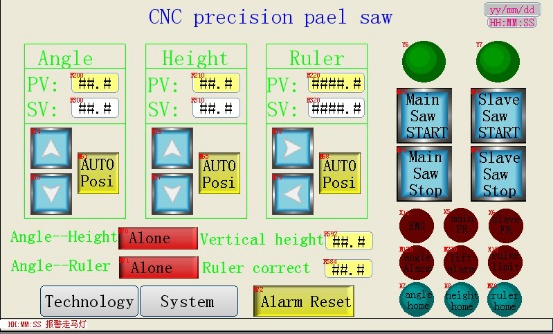

    7. CNC control position ruler


    Featuers
    1. Air table reduces the friction to the minimum to prevent chipping and wearing of the materials.
    2. Precision gear and rack transmission ensures smooth and dynamic running even at the highest speeds.
    3. Main saw motor is linked to the saws by V-ribbed belt that results in the clean precision cut.
    4. Cutting is automatically adjusted to the size of the panels according to the value set-dramatically reduces the cycle time.
    5. Saw blades are easy to be loaded and unloaded in an efficient manner.

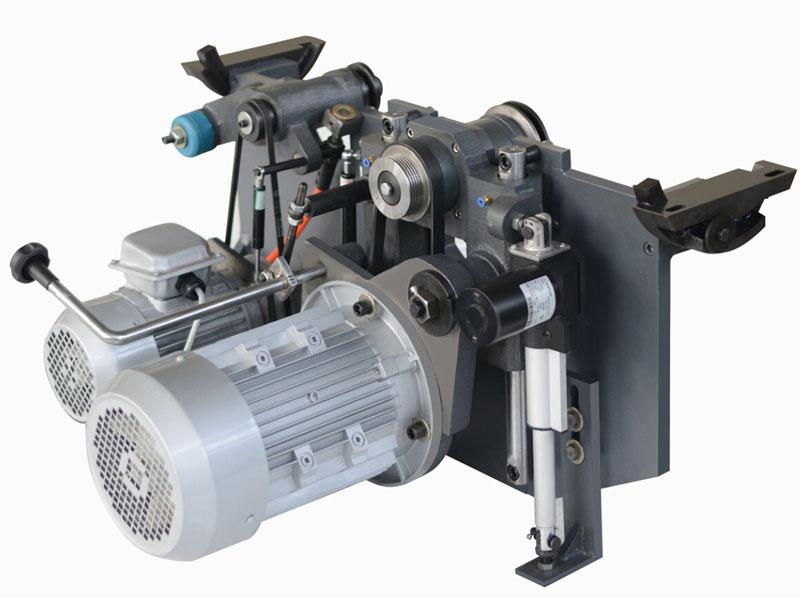

    6.The main saw and the scoring saw with electronic lift feed on linear guide that obtains lasting straight-line precision and rigidity and guarantees excellent cutting finish.



    Parameter
    Dimension of sliding table3200*430mmTilting saw blade0-45degree
    Gross cut capacity3200mmMain motor5.5kw
    Width of cut between saw blade and rip fence1250mmscoring saw blade diameter120mm
    saw blade diameter300mm(250-400mm)speed of scoring saw blade 7000-8000rpm
    Height of cut(300mm)90mmScoring saw diameter20mm
    Height of cut with saw blade 300mm at 45 degree70mmScoring motor1.1kw
    speed of main saw spindle 400/6000rpmGross weight950kw
    main spindle diameter Overall dimension3300*3350*900mm

    Note
    1)  We offer 2 years warranty for machines main body
    Machines are with CE certification
    3) Delivery time is within 20 days after prepayment
    Price is available within 3 months since the date of offer.
    For other details , you can see another attachment of our catalog.
    Reasons to choose SOSN:
    1: professional team--as much as possible to meet your needs
    2: quick delivery--timely and effective
    3: excellent after-sale services--no worries anymore
    4: friend partner relationship--a win-win cooperation

    If any question,feel free to contact me.
    I am ready to serve you all the time!
    Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.

    SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.

    We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.

    SOSN main product,

    CNC Router

    Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)

    Edge banding machine: Manual, semi-automatic, full automatic

    Boring/Drilling machine

    Belt sanding machine

    Dust collectors

    Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc

    For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.

    High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!

    You are warmly welcome to join us in this business line to have a Win-win situation!
