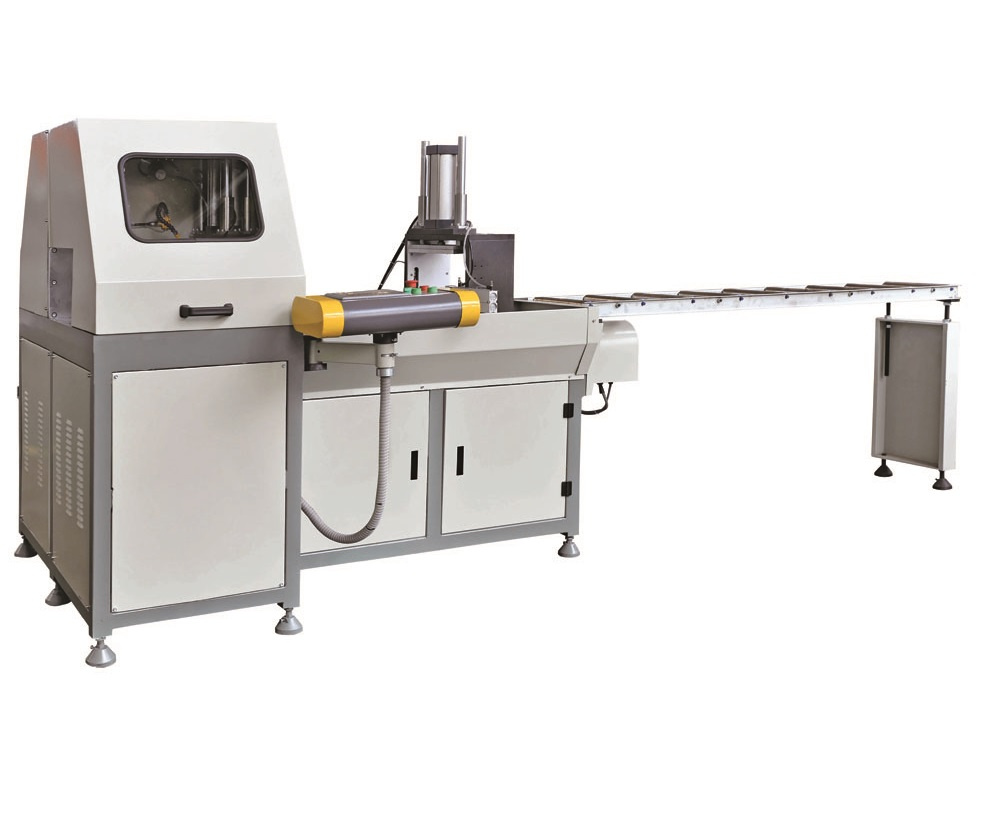

| Prod Model: |
LJJC-CNC-550 |
| Cutting Saw: |
Aluminum Profiles |
| Application: |
Decorations, Door & Window |
Product Description
Product features1. Corner connector profile cut in batch quantity and batch size 90°.
2. Cutter is made from horniness alloy driven by powerful motor profile cutting is high efficiency and high prcision.
3. Operated easily, good performance, advance technical, easy maintenance.
4. Schneider servo system connected with screw linear make the location accurately, supermatic.
5. Siemens touch screen easy to operate.
| Air consumption | 200L/min |
| Auto feeding range | 5~1200mm |
| Section size width×height | 360×160mm |
| Surface plane | ≤0.10mm |
| Verticality | 0.1mm |
| Roughness | Ra 12.5um |
| Power | 4kw |
| Motor rev | 2890r/min |
| Air pressure | 380v 50Hz |
| Cutter spec | 550×30 ×4.4×Z120 |
| Cutter feeding speed | 0-3m/min |
| Air press | 0.6~0.8MPa |
| Machine dimension(L×W×H) | 5900mm×1800mm×1740mm |
| Weight | 940Kg |
Tianchen Aluminum Machine Co., Ltd was now equipped with more than 7,000 aluminum doors and windows of domestic manufacturing enterprises and hundred aluminum curtain wall manufacturing enterprises, the domestic market share of over 40% (some of the major markets more than 80%), products and exported to the United States, Russia, South Korea, Singapore, Thailand, Vietnam, Philippines, Australia, United Arab Emirates, South Africa, France, Greece, Italy, India, more than 60 countries and regions.
Jinan Tianchen is a professional manufacturer of all kind of window, door and curtain wall processing machines, with large sales and service net, including equipemnts of aluminum windows, curtain wall, aluminum & wood window, solar board aluminum frame, industry aluminum profile etc, and steel tower machines, steel structure machines, which is affiliated with Jinan Tianchen Machine Group. The main products are Machining center, CNC Machining Center, CNC Machine, Processing center, Aluminum Window Machine, Alumunum Curtain Wall Machine, CNC Machine Tool, CNC angle line machines for telecommunication tower and power transmission tower, CNC steel structure processing machines, etc. The main machine types are: CNC Punching, Marking and Cutting machine for angle bars; CNC Drilling and Marking machine for angle bars; CNC Punching and Marking machine for steel plates; CNC Drilling machine for H-beams; etc.
Tianchen machines have very good quality with quite competitive price, they are very popular in the market, specially for Aluminum curtain wall, Aluminum window & door, tower manufacture industry and steel structure fabrication industry.
