| Prod Model: |
Bwt-3500 |
| Max Processing Size: |
3500*3500*2100mm |
| Dimension Of Worktable: |
2500*2000mm |
| Main Motor: |
11kw |
| Gross Motor: |
19kw |
| Outline Dimension: |
6800*8900*4700mm |
| Gross Weight: |
8000kg |
| Water Consumption: |
4m3/H |
| Color: |
White,Blue and Yellow |
| Used To: |
Squarring Block |
| Maximum Block Height: |
2100mm |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
| Type: |
Stone Cutting Machine |
| Control: |
PLC |
Product Description

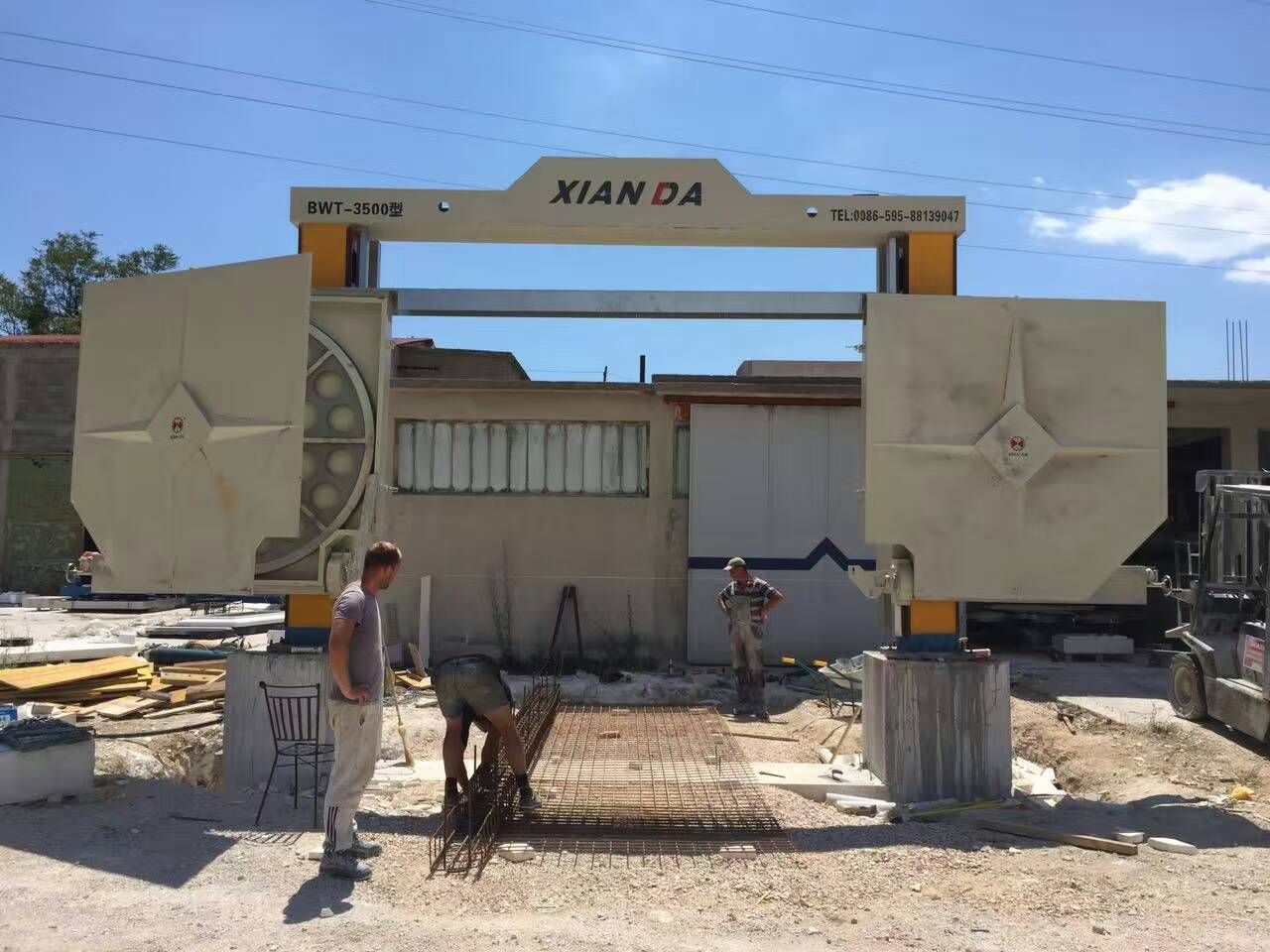

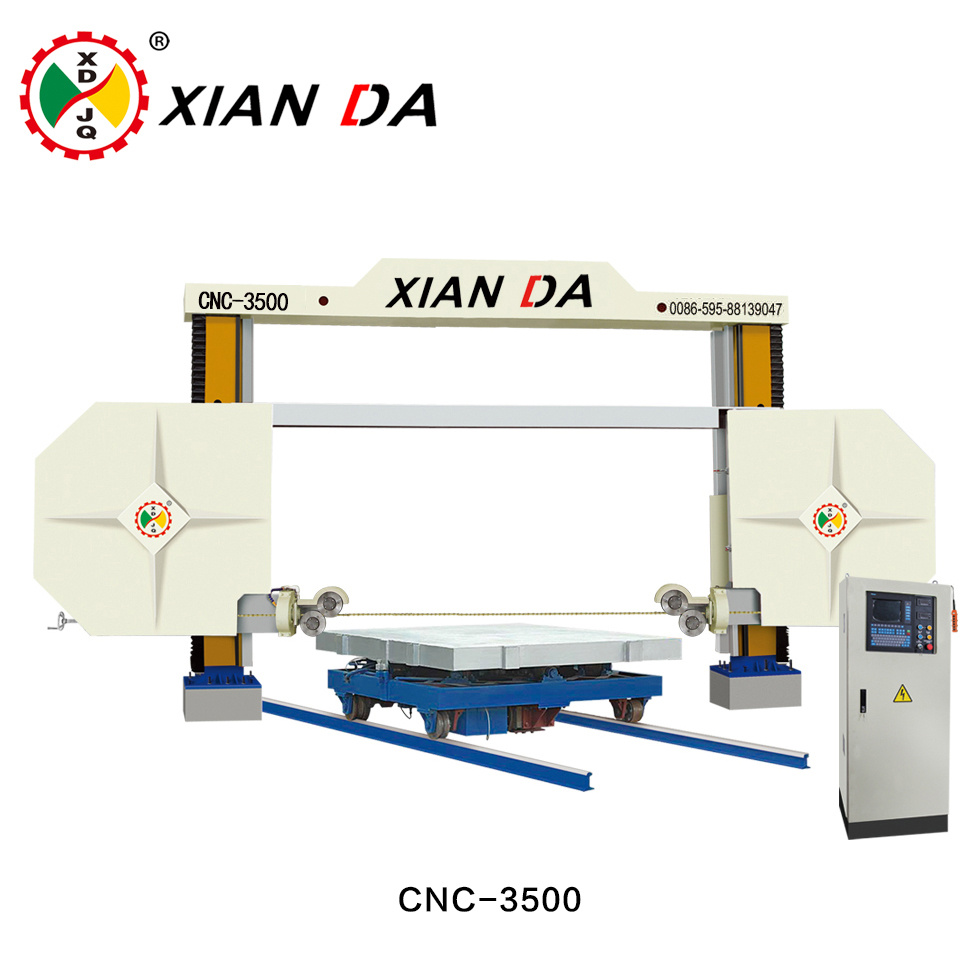

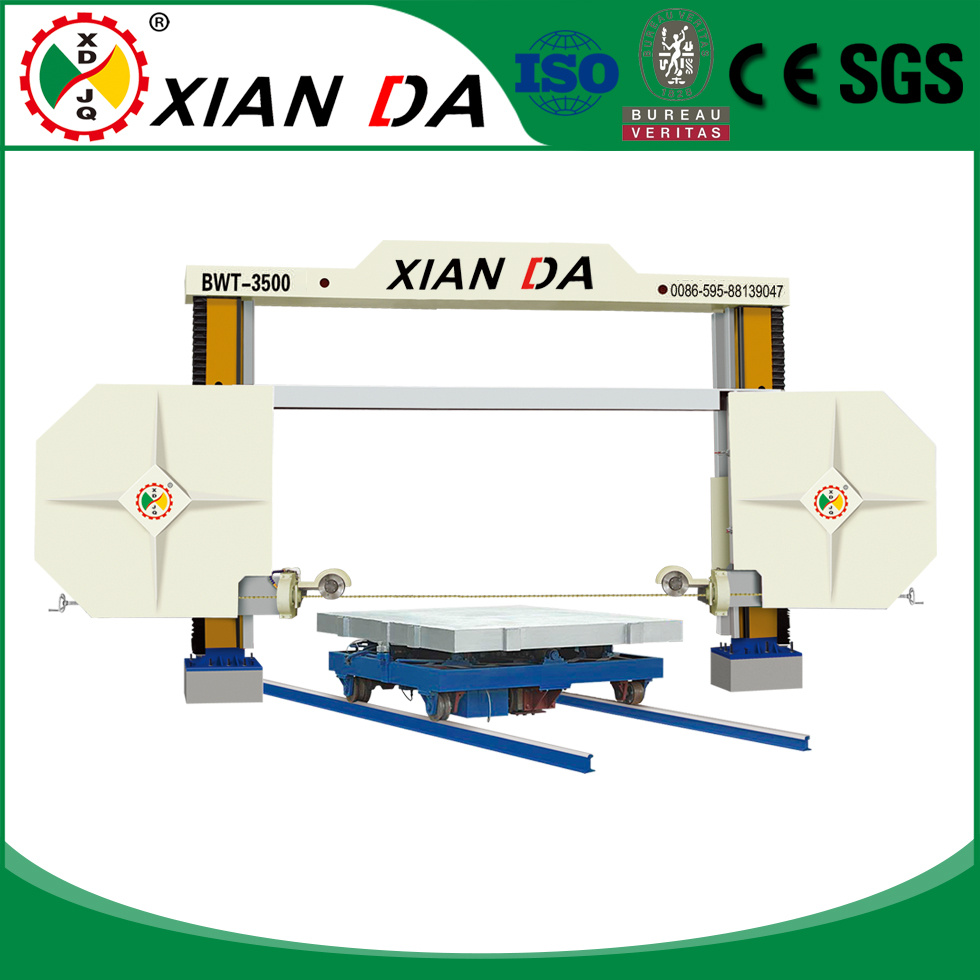

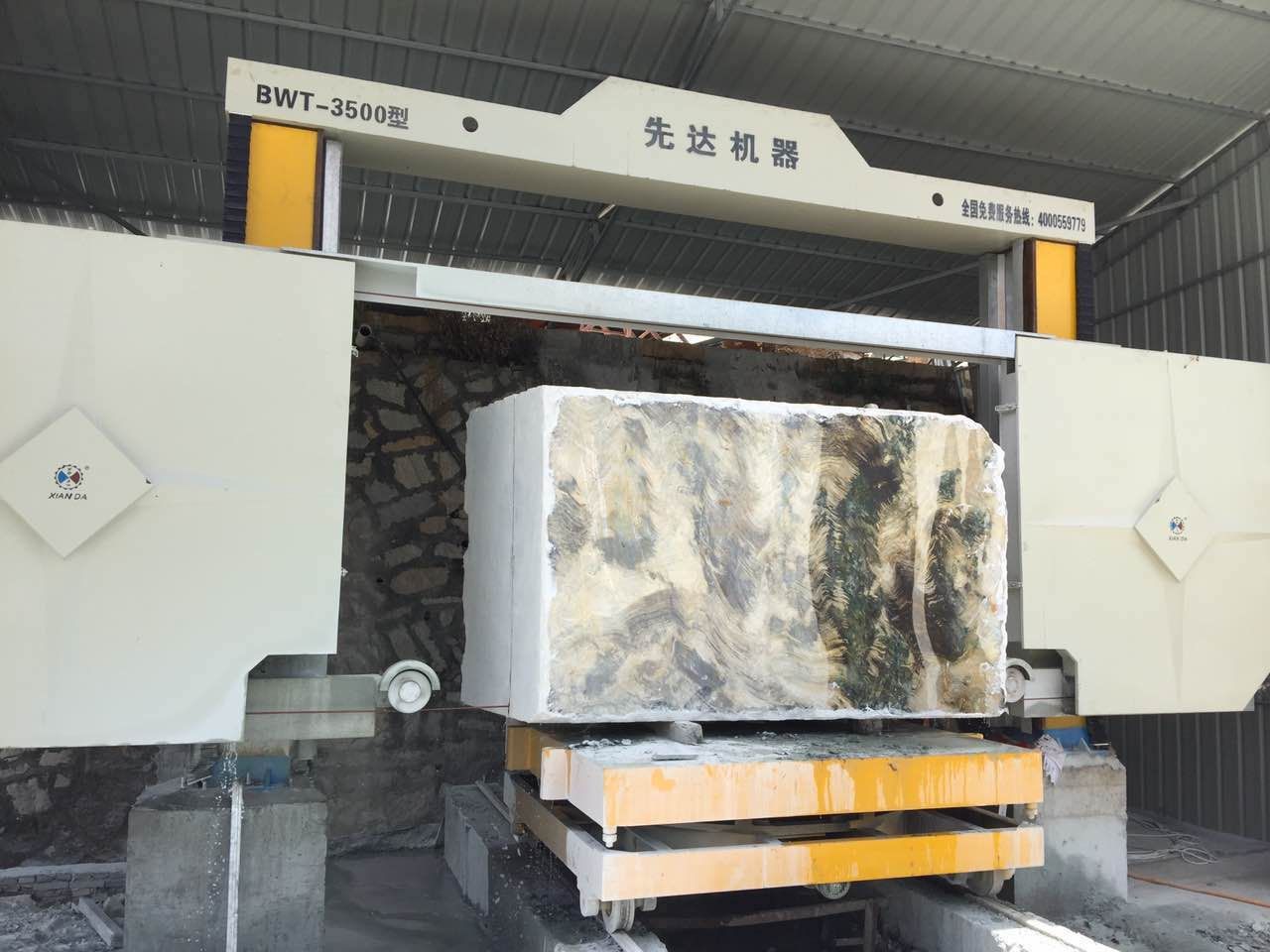

cnc stone cutting machine for squaring block by diamond wire
Product Description China Xianda marble granite stone block diamond wire saw edge cutting machine adopts Four-Axis linkage with stable cutting, used to trimming the six surfaces of the stone block, also can cut the block to slab, which is the ideal equipment for cutting the block, and trimming stone block.The special design for 360° worktable will fullfil your need, somemore this machine is able to compatitable with CNC system.Once changed, it will have multi-function with can process the column slab,pillar,roman column,numeral, letter, Chinese characters and other shapes for the stone.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Parameter | Unit | BWT-3500 |
Max processing size | mm | 3500*3500*2100 |
Dimension of worktable | mm | 2500*2000 |
Main motor | kw | 11 |
Gross motor | kw | 19 |
Outline dimension | mm | 6800*8900*4700 |
Gross weight | kg | 8000 |
Water consumption | m³/h | 4 |
Xianda Machinery
Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.Exhibition
Our Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
Fujian Xianda Machinery Co., Ltd was established in 1985 and covers an area of 20, 000 Square meters. We are dedicated to the development and production of a series of column making machine, stone machine, wire saw stone cutting machine, block trimming machine, Infrared bridge saw, profiling stone machine.
With rapid development, we have attained ISO9001 certification and won many honorary titles, including International Gold Plant Quality Award, China construction recommend building materials production enterprises.
Our company is located in the rapidly developing overseas Chinese hometown-Quanzhou Anhai Cultural and Historial Town, with convenience transportation, by the well-know Wuli Bridge which was named "No a bridge is longer than Wuli".
Since its foundation in 1985 we keep "Advanced Technology and High Quality" as our aim, Moreover, our company dare innovate and develop, and invite the high quality engineers and own a group of strong team with modern technology. By the effort of the whole stuff, we have developed a range of "Xianda" Brand special shape stone processing machineries which is with good quality, new style, reasonable structure, and sold well around China as well as in South Korean and Southeast Asiaetc, It receives high opinions from customers.
