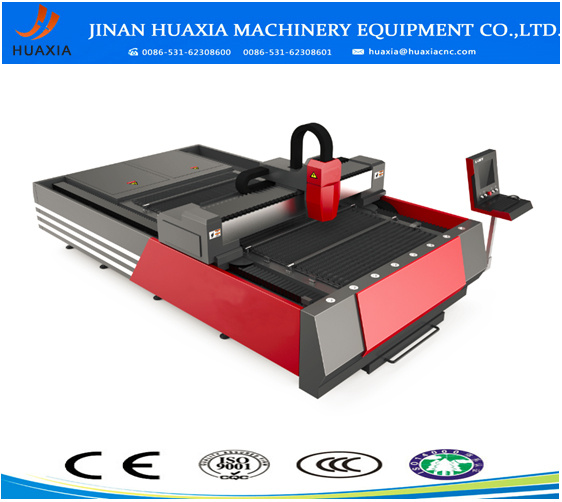

CNC Fiber Laser Cutting Machine/CNC Laser Cutter

CNC Fiber Laser Cutting Machine/CNC Laser Cutter
Price: US $ 18000-93000set
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Laser Power: China Raycus 500W
Laser Head: Shanghai Empower
Motor And Drive: Japan Yaskawa 850W
Reducer: Japan Shimpo
Pneumatic Parts: Korea
Electronic Parts: Schneider
Control System: China Cypcut
Water Chiller: Cw6200

Product Description

Fiber laser cutting machine adopts imported the most advanced fiber laser output of high energy density of the laser beam and focusing on the surface of the workpiece, workpiece is ultrafine focus facula illumination of regional instantaneous melting and vaporization, Automatic cutting system moves through CNC machinery spot irradiation position. It is a high-tech equipment which integrated the most advanced Optical fiber technic, CNC technic and precision machinery technic .

1, high rigidity of the machine tool bed, exclusive high temperature control standard furnaces annealing treatment, can guarantee the precision of the machine tool is stable for a long time does not change.

2,Imported original fiber laser generator with good beam quality, stable performance, no reflector lens, no need to adjust the optical path, basic maintenance free, service life can reach more than 10 hours;

3, fiber laser with high Electro-optical conversion efficiency, conversion efficiency of 30%, the power consumption can be saved greatly when working.

4, Adopts imported original guiding drive and servo motor, high precision, high speed;

5, Supported all kinds of graphic format or text instant cutting, simple operation, flexible and convenient.

6, Beautiful, smooth cutting edge,without deformation;

7, low energy consumption, energy saving and environmental protection, low power consumption, the power consumption is VAG with the power consumption of 1/3-1/5, cutting speed of YAG is more than three times;

8, without working gas lasers, air available for sheet cutting ;

9, fast cutting speed, low operation cost,investment recovery quickly;

application area

Widely used for :sheet metal cutting, pipe (needs to add another tube cutting device):stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum steel, manganese, all kinds of alloy plate,rapid processing and so on.


Widely used in: Electrical power, auto parts, mechanical equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising decoration, car decoration, sheet metal chassis cabinets, hardware, lighting, display equipment, precision parts, all kinds of metal cutting industry etc.



Technical Parameters
ModelCN-3015-500WCN-3015-1000WCN-3015-1500W
Laser typefiber laser
Laser power500w1000w1500w
Machine power≤8kw≤12kw≤15kw
Laser wavelength1070-1080nm
Working area3000mm×1500mm
X/Y/Z axis stroke1530mm/3050mm/80mm
Cutting speedDepends on the materials and its thickness
Repeated positioning accuracy±0.02mm
Cooling typewater cooling
Aiming and positioningred light
Voltage3 phase 380V/50Hz/60A
Machine occupy space9000*5000MM





Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
