| Prod Model: |
HX1530 |
| Control System: |
China Cypcut |
| Reducer: |
Japan Shimpo |
| Laser Power: |
China Raycus 750W |
| Motor And Drive: |
Japan Yaskawa 850W |
| Pneumatic Parts: |
Korea |
| Electronic Parts: |
Schneider |
| Water Chiller: |
Cw6200 |
| Product Name: |
Fiber Laser Cutting Machine |
| Name: |
Laser Cutting Machine |
Product Description

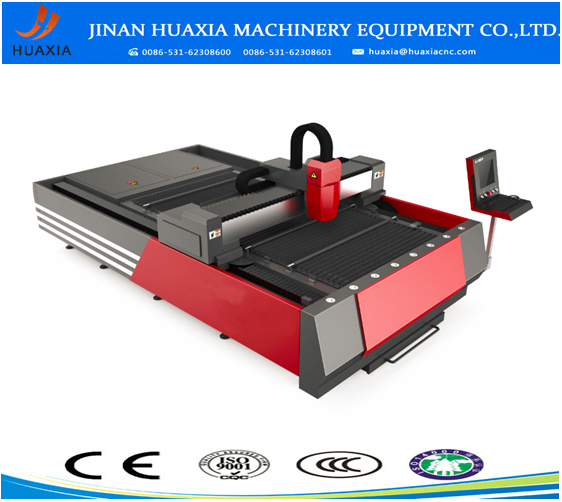

Fiber laser cutting machine
Product Description
1, high rigidity of the machine tool bed, exclusive high temperature control standard furnaces annealing treatment, can guarantee the precision of the machine tool is stable for a long time does not change.
2,Imported original fiber laser generator with good beam quality, stable performance, no reflector lens, no need to adjust the optical path, basic maintenance free, service life can reach more than 10 hours;
3, fiber laser with high Electro-optical conversion efficiency, conversion efficiency of 30%, the power consumption can be saved greatly when working.
4, Adopts imported original guiding drive and servo motor, high precision, high speed;
5, Supported all kinds of graphic format or text instant cutting, simple operation, flexible and convenient.
6, Beautiful, smooth cutting edge,without deformation;
7, low energy consumption, energy saving and environmental protection, low power consumption, the power consumption is VAG with the power consumption of 1/3-1/5, cutting speed of YAG is more than three times;
8, without working gas lasers, air available for sheet cutting ;
9, fast cutting speed, low operation cost,investment recovery quickly;
Widely used for :sheet metal cutting, pipe (needs to add another tube cutting device):stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum steel, manganese, all kinds of alloy plate,rapid processing and so on.
Widely used in: Electrical power, auto parts, mechanical equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising decoration, car decoration, sheet metal chassis cabinets, hardware, lighting, display equipment, precision parts, all kinds of metal cutting industry etc.
| Technical Parameters |
| Model | CN-3015-500W | CN-3015-1000W | CN-3015-1500W |
| Laser type | fiber laser |
| Laser power | 500w | 1000w | 1500w |
| Machine power | ≤8kw | ≤12kw | ≤15kw |
| Laser wavelength | 1070-1080nm |
| Working area | 3000mm×1500mm |
| X/Y/Z axis stroke | 1530mm/3050mm/80mm |
| Cutting speed | Depends on the materials and its thickness |
| Repeated positioning accuracy | ±0.02mm |
| Cooling type | water cooling |
| Aiming and positioning | red light |
| Voltage | 3 phase 380V/50Hz/60A |
| Machine occupy space | 9000*5000MM |

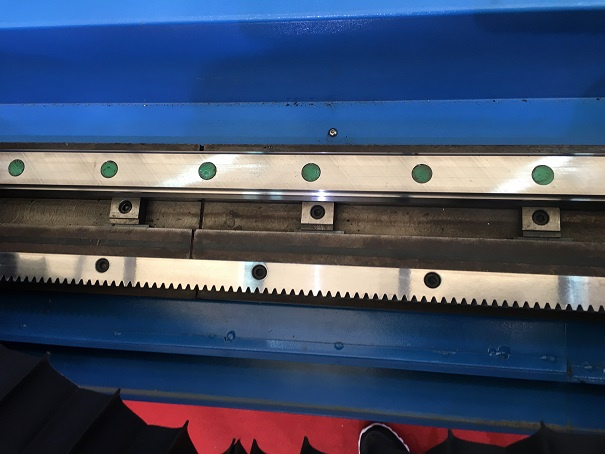

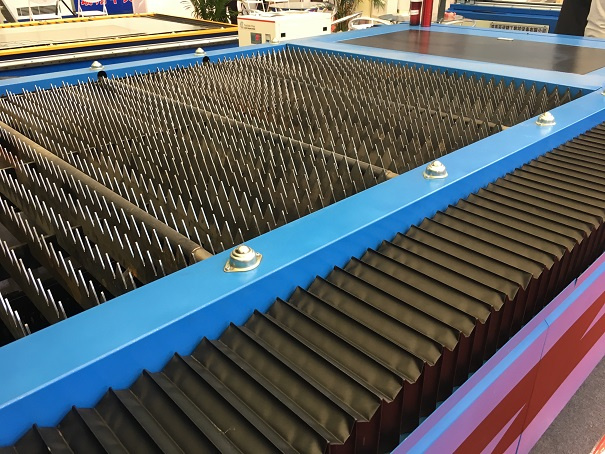

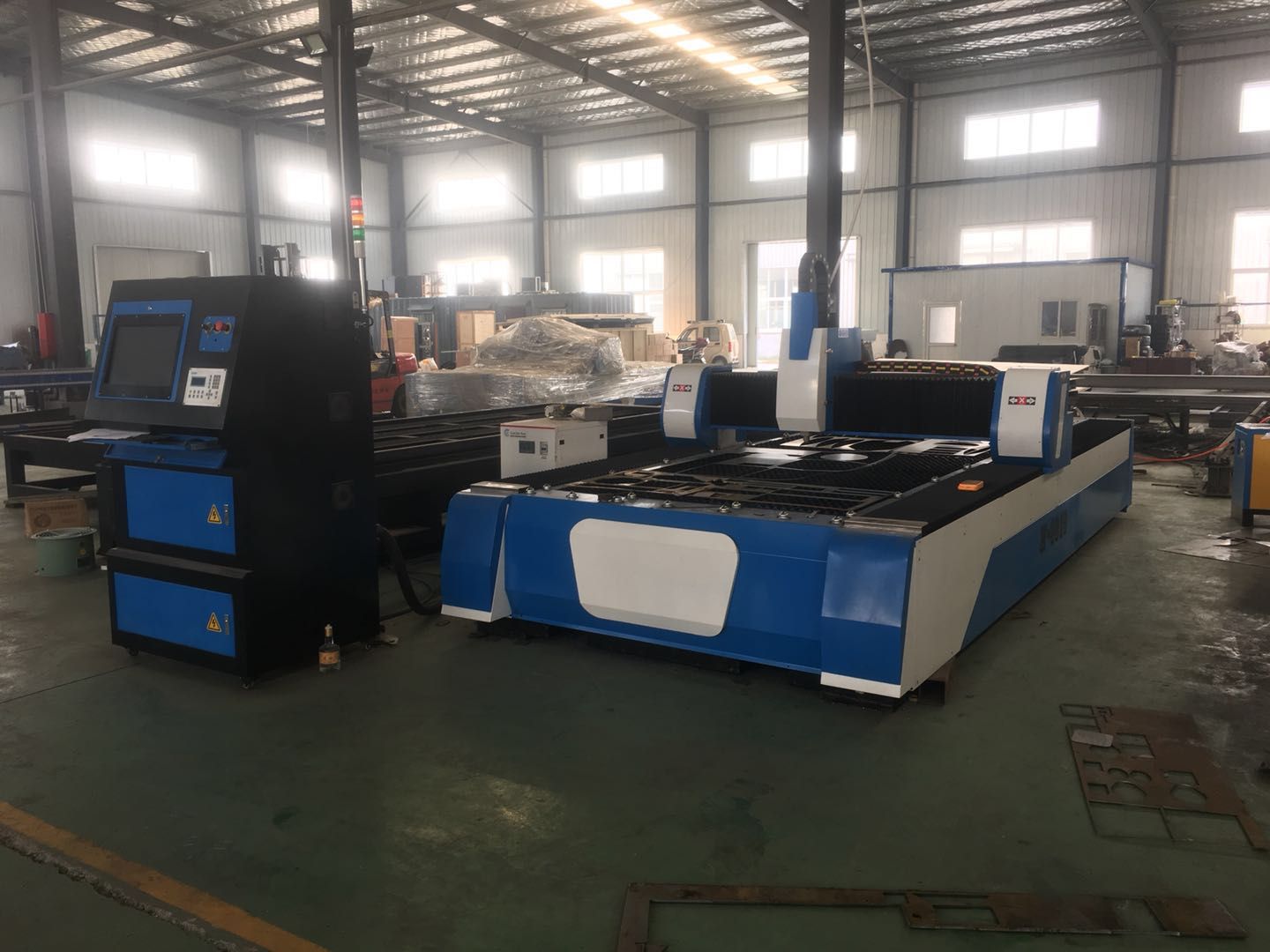

Product details

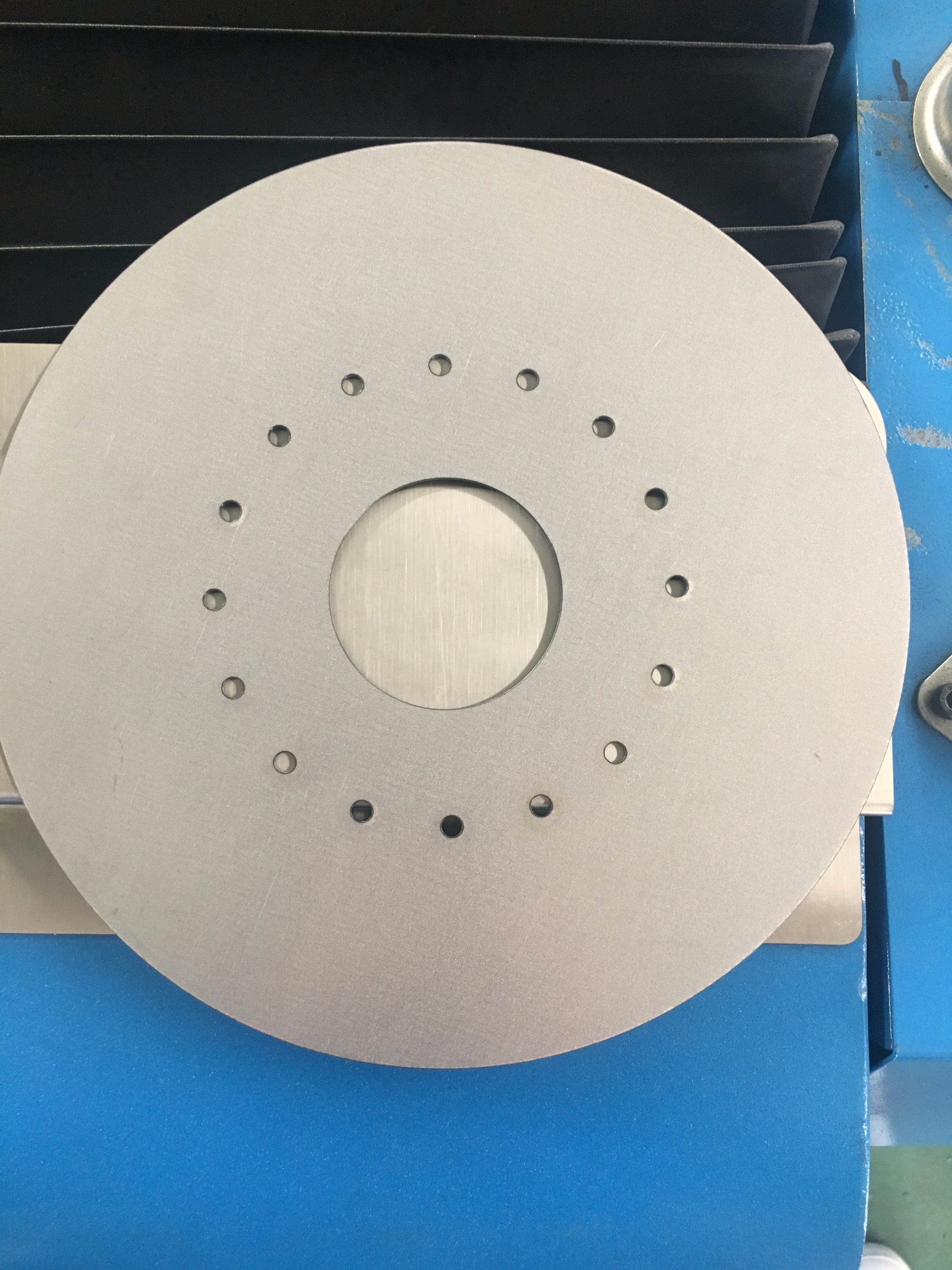

Sample
Company information:"High Quality, Good Service" is our COMPANY CULTURE!
- Welcome to come to our factory for inspection at any time.
- Whole visual machine production process
- Professional multilingual sales team
- Free Training Team at factory,to ensure that every customer operates the machine skillfully
- Professional engineer after-sales team
- 3 years guarantee period.
Company Brand: HUAXIA
Company Type: Industry and trade integrationService:Pre-sale:
(1)regarding your demands , the best suitable machine will be recommend you . the customized machine also support
(2)regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A,FORM-B,FORM-F,original certificate signed by Embassy.etc.
(3)all the machine will be tested before delivery, and we will take the video and pictures to you.when you receive it , it can work directly.
(4)You could visit the factory at any time!
After-sales
(1)we will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2)All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can't solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.FAQ:1.How i can choose a suitable machine?
Tell us the max working area,the material and its thickness you want to cut,we can help choose the best suitable machine.
2.Payment terms?
T/T,L/C,Western Union,Paypal,Alibaba Secure Payment ect.
3.How about of your shippng?
With professional packing to avoid the damage, We have posted many products to worldwide safe and sound, including USA, Europe, Eastern Europe, South America, Middle East and so on. When receive your payment, we produce the machine, when we finished the machine, will help you book the ship, the shipping to you.Contact:Jinan Huaxia Machinery Equipment Co.,Ltd
Connect Person:Claire
Office Tel: (+86)0531-62308600
Mail:claire at huaxiacnc com
Whatsupp:008618340056306
Imo: +8618340056306
Website:http://www.huaxiacnc.com/en/

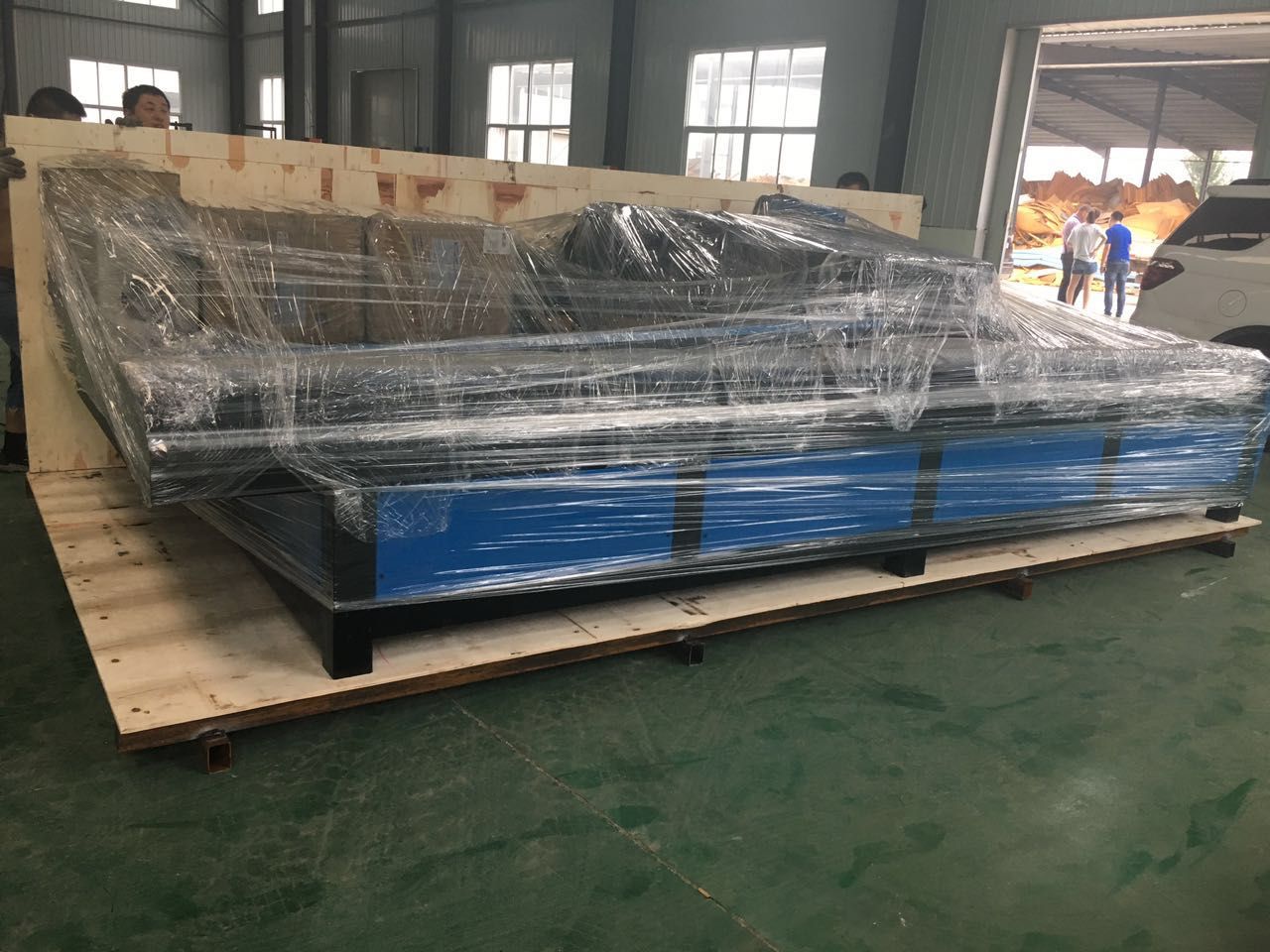

Packaging DetailsPacking:plywood case after packed by Wrapping filmDelivery Detailwithin 15 working days after recieved the deposit
