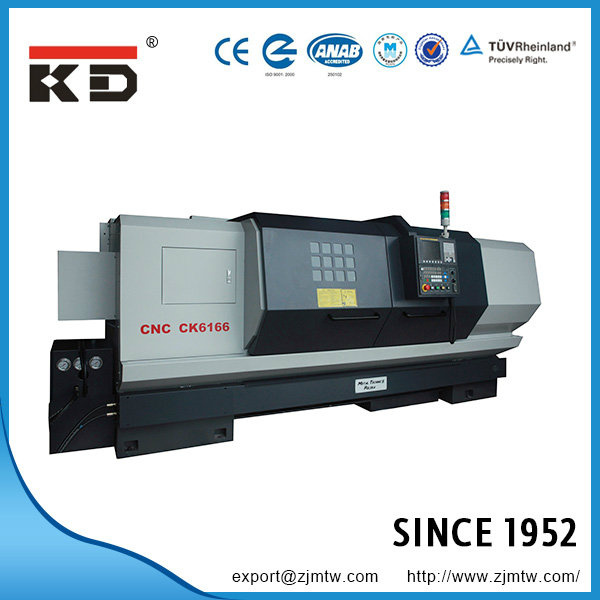

CNC Flat Bed Lathe Machine Ck6166/3000

Name: CNC Flat Bed Lathe Machine Ck6166/3000
Brand: tool-buy.com
SKU: 769374065
Availability: InStock
Rating: 4.4 (82 reviews)

Price:	US $ 30513set
Trade Terms:	FOB,CIF,EXW
Min Order:	1set
Pay Type:	L/C,T/T

Contact Supplier

Zhejiang Kaida Machine Tool Co., Ltd.

Showroom Product Company Profile

Prod Model:	CK6166/3000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	11kw
Spindle Bore:	105mm
Net Weight:	4180kg
Swing Over Bed:	660mm
Max.Length Workpiece:	3000mm
Packing Size:	4650X1760X1900(mm)
3-Jaw Chuck Size:	325mm
Type:	Horizontal Lathe
Power Source:	Electric
Controlling Mode:	CNC
Automatic Grade:	Automatic
Setting Mode:	Floor-type
Precision:	Precision
Processing Accessory:	Metal Part Machining
Tool Holder:	4-Way Tool Post

Product Description

ITEMS	CK6166	CK6156	CK6150
Max. swing over bed	Ø 660 mm	Ø 560 mm	Ø 530 mm
Max. swing over carriage	Ø 430 mm	Ø 330 mm	Ø 310 mm
Width of bed	405 mm
Maximum turned length	750/1000/1500/2000/3000 mm
Max. turning length	650/900/1400/1900/2900mm
Spindle nose	D8	A2-8
Spindle bore	Ø 105 mm	Ø 80 mm
Cone hole diameter and taper of spindle hole	Ø 113 1: 20	MT. No. 7
Steps of spindle speed(Manual)	4 (Variable Within Each Step )
Range of spindle speed	27~135 55~270 160~805 325~1630 r/min
Rapid feed for Axis Z	10m /min
Rapid feed for Axis X	8 m /min
Max. travel of Axis Z	720/970/1270/1970/2970mm
Max. travel of Axis X	365 mm	320 mm	300 mm
Min. input	0.001 mm
Tool post stations	4-ways or 6-ways
Tool cross section	32× 32 mm
External diameter	Ø 75 mm
Taper of bore	MT. No. 5
Max. Traverse	150 mm
Power of main motor	11 KW	7.5 KW
Power of cooling pump	90W
Overall dimensions(L× W× H)	2250/2500/3000/3500× 1250× 1580 mm	2250/2500/3000/3500/4500× 1200× 1520 mm
Net weight	2800/3100/3700/4300/5300 kg	2700/3000/3500/4000/4600 kg

Specifications:

Standard accessries:
1.Fanuc 0i MATE TD control,FANUC servo motors for Z and X axis;
2.Invertor spindle;
3.325mm manual 3-jaw chuck,manual tailstock;
4.Half cover;
5.Working light;
6.Cooling system;
7.Tool box with wrenches,spanners etc.

Optional accessories:
1.SIMENS 808DA control;
2.305mm hydraulic chuck and tailstock;
3.305mm hydraulic chuck and tailstock;
4.6-way turret;
5.8-way tuuret;
6.Full cover;
7.CE configuration

Packing:
1.Sea worthy wooden case with IPPC
2.Size:4650*1760*1900(mm)
3.Weight:4180/5030kg

Warranty:
Factory supplys easy worn-out parts during one year under EXW in free of charge

Delivery: around 55 days after deposit

Zhejiang Kaida Machine Tool Co., Ltd

Zhejiang Kaida Machine Tool Co., Ltd is located in Zhuji City, China.And only 45 minutes away from Hangzhou Airport.

Our company was founded in 1952 and has a history of more than 60 years in manufacturing lathes, also with a total area of 32 hectares and 1000 staff.Through reformation in 1997, we have been changed from a state-owned enterprise to a joint-stock private enterprise.We got ISO9001 certificate in 1997, CE certificate in1999 and ISO14001 certificate in 2005.

We have a wide variety of products, which can meet different customers' needs:Horizontal machining center, vertical machining center, CNC slant bed lathe, CNC flat bed lathe, manual lathe.

We have a full set of equipment including forging, machining, heat-treating, sheet metal processing, assembling and painting.Specialized technicists in every field enable us to assist our customer in use, learning and programming.Efficient service earn us trust and loyalty from customer.

As an established company, professional competence and perfect service make us to exploit and develop a huge international marketing net.Our export experience started from European and America.We have exported to more than 100 countries.Our main markets are Europe, America, South America, India, Southeast Asia, South Africa.

We are fully confident to meet any challenges or opportunities that present to us.
