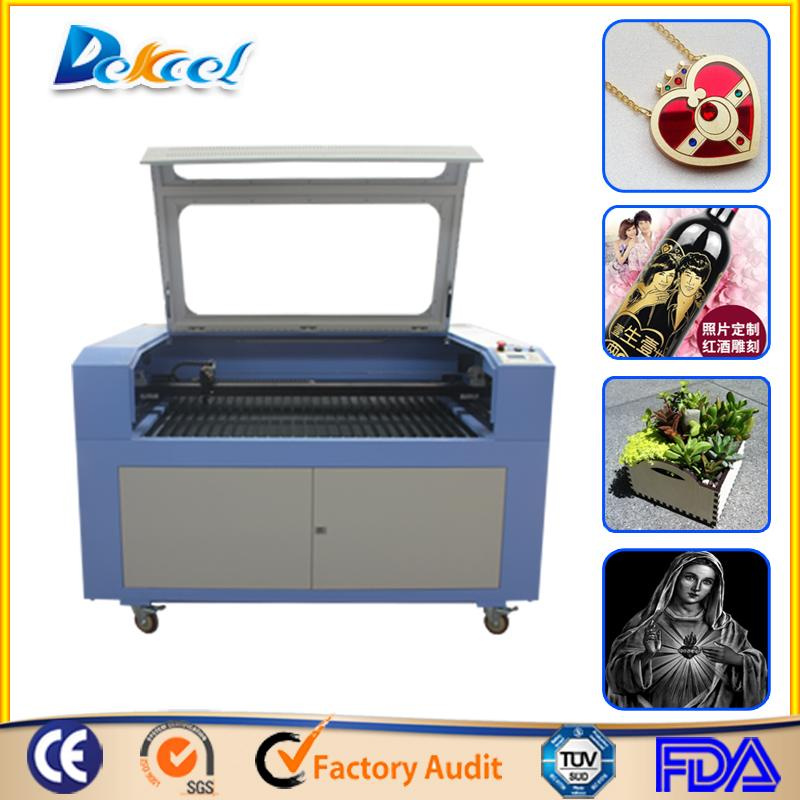

CNC Laser 130W Laser Cutting Machine Reci CO2 100W, 150W Acrylic Cutter for Advertising Industry

CNC Laser 130W Laser Cutting Machine Reci CO2 100W, 150W Acrylic Cutter for Advertising Industry
Price: US $ 2800-6950set
Min Order: 1set
Pay Type: L/C,T/T,Western Union
Prod Model: DEK-1390J
Cutting Area: 600*900mm
Cutting Thickness: 0-30mm
Cutting Speed: 0-40000mm/Min
Graphic Format Supported: Ai, BMP, Dst, Dwg, Dxf
Certification: Ce, FDA
Laser Power: 60W-150W
Driving System: Stepper Motor and Drivers
Control Configuration: Ruida Control System
Belt: Fulong Belt
Rail: Hiwin Guide Rails

Product Description

CNC Laser 130W Laser Cutting Machine Reci CO2 100w,150w acrylic Cutter for Advertising Industry

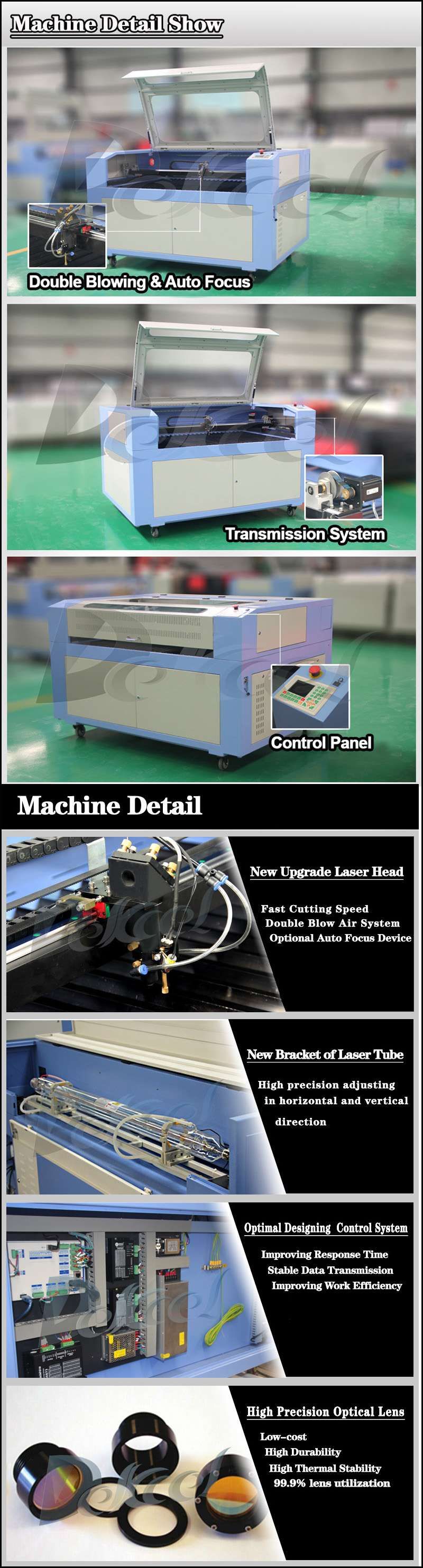

Reci 130w Cnc Laser Cutting Machine Features

1.Rdcam color touchable screen control system in English--operate easily
2.Leedshine driving system--stable
3.Hiwin guide rail from Taiwan -- high precision
4.Singapore lens and mirror--reflection and focusing, long working life.
5.Red light position system --position precision
5.Automatic protection system--safe
6.All the feature of our laser engraving machine make sure its high quality and good work performance.



Technical Detailes for 130w Cnc Laser Cutting Machine

Total power<300W
Laser powerReci CO2 80W-150W
Laser typeCO2 cnc laser cutting machine
Power supplyAC 220V/110V
Working area900mm*600mm/1300mm*900mm/1400mm*900 mm/1300mm*2500mm
Engraving depth0-10 mm (different material differ)
Cutting depth0-10 mm
Engraving speed0-600mm/s
Cutting speed0-600mm/s
Lifting platform0-250 mm  Honeycomb/Blade Worktable
Locating precision<0.01 mm
Min shaping characterCharacter: 2*2mm, Letter: 1*1mm
Working temperature5ºC-45ºC
Working humidity5%-95%
Resolution ratio≤1000dpi
Data transfer interfaceUSB 2.0 (offline)
System environmentWindows XP / Win 7 / Win 8
Cooling Water Cooling and protection system with chiller
Graphic Format SupportedThe Files which CorelDraw & WinsealXP can identify
(BMP,JPEG,PLT,CDR,AI,) TIFF,PCX,DIB,TIF
Compatible softwareCorelDraw,WinsealXP
Color separationNO
Sloping engravingNO
ProtectionEmergency stop buttom and Stop working when water broken

Applicable Materials:

Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,glass and other nonmetal materials.

Applicable industries:

Advertisement, arts and crafts, leather, toys, garments, model, building upholstery,
computerized embroidery and clipping, packaging and paper industry.

130w laser engraving and cutting machine price samples

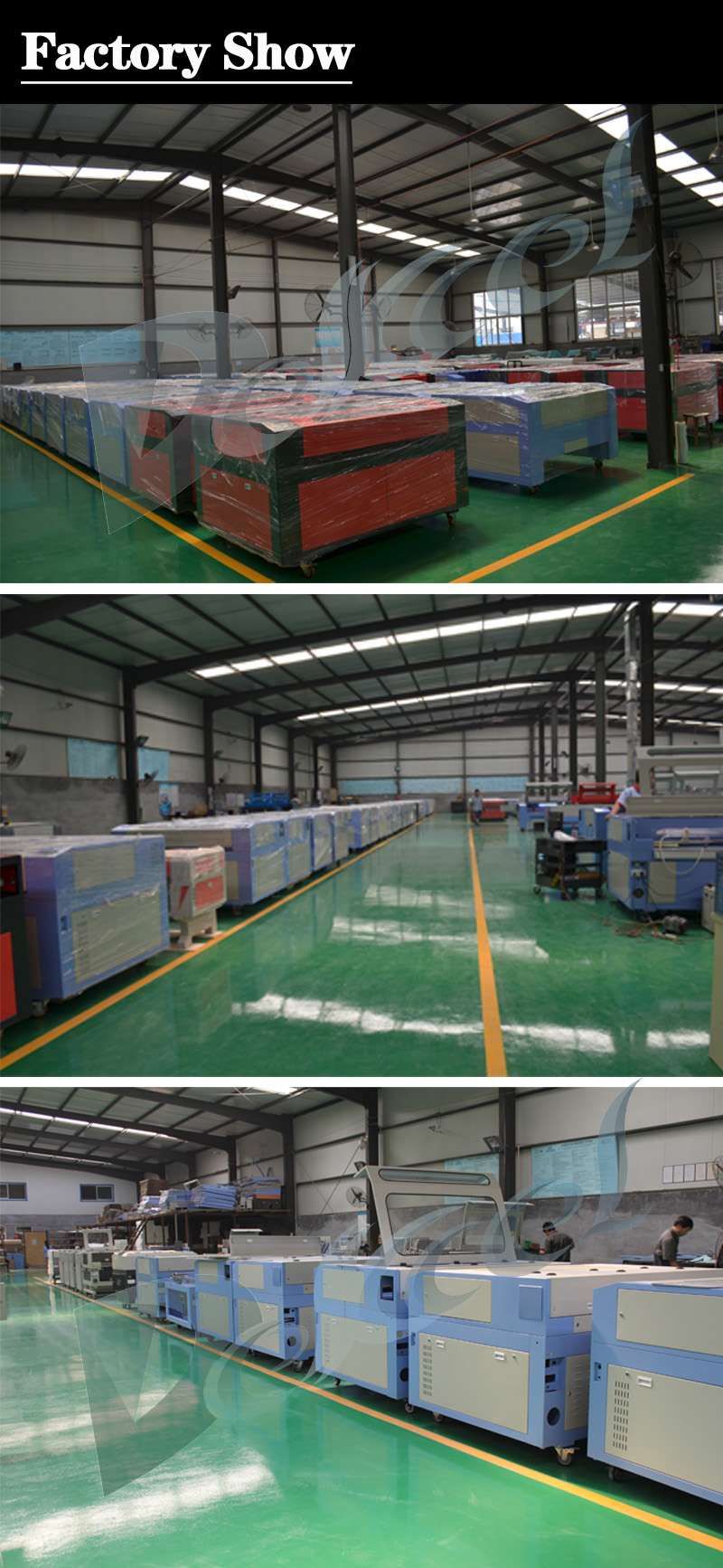

CNC Laser Engraving & Cutting Machine Factory



Jinan Dekcel CNC Equipment Co.,Ltd




FAQ

1) This is the first time I use this cnc laser engraving and cutting machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.

2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
we will give you 24hours service from phone and skype or go to your home for after-sale service

3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell
us your port name or your detailed address. There will be best shipping freight and machine price send to you

After sales service

1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.

If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?

Looking for agents all over the world
Thanks for your time!
Welcome to DEKCEL CNC, where our friendly and knowledgeable staffs are happy to assist you with your CNC needs. DEKCEL do not just sell CNC machines. We offer CNC solutions to Customers. Provision of a CNC machine is more than just the provision of a machine tool. Jinan DEKCEL provide a range of CNC Router, CNC laser, plasma cutting machine, laser marking machine etc. Having manufactured, sold, installed and supported over 7000 CNC machines. The professional CNC router, laser, plasma cutter we offer have exceptional long term stability, high cutting performance potential in a variety of applications and the machine systems are built to last. Listening to customers'needs and building high quality CNC Routers, laser, Plasma Cutters etc to fulfill their requirements is the way we do business in the CNC marketplace. If you are looking to get into the CNC world, have a CNC application in mind, have a new business idea or looking to further your production, have a look at what DEKCEL have to offer you!
