CNC Machine Flexible Roller Plastic Cable Drag Chain

CNC Machine Flexible Roller Plastic Cable Drag Chain
Price: US $ 5/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Meter
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: TLP
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: CNC Machine Tools, Electronic Equipment, Stone Mac
Chain Size: 1/2"*3/32"
Pitch: 45mm-180mm
Min.Width(mm): 60mm-200mm
Structure: Roller Chain
Material: Plastic
Surface Treatment: Polishing
Feature: Fire Resistant, Oil Resistant, Heat Resistant
Bending Radius: 50mm-750mm
Max.Width(mm): 200mm-650mm

Product Description

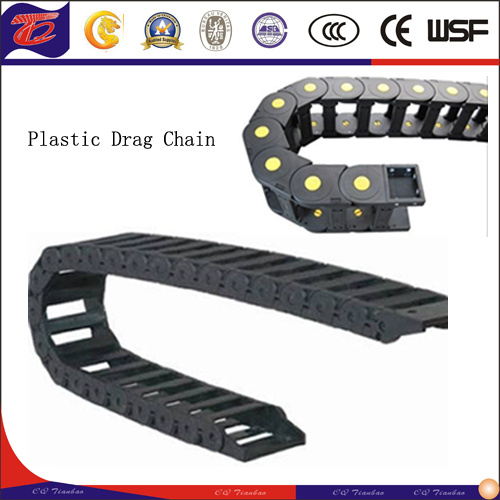

Platic drag chain

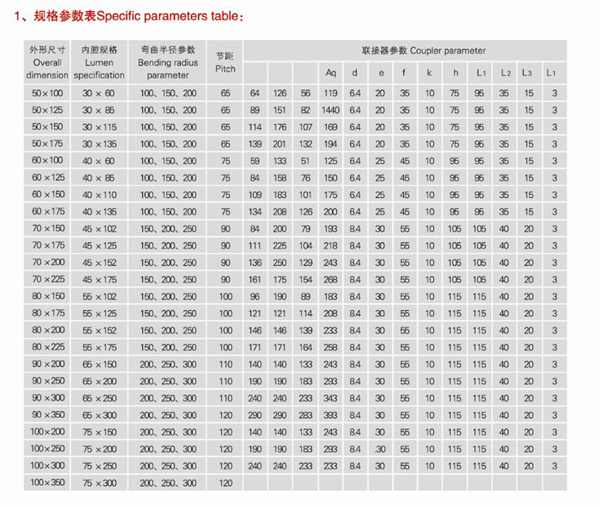

Basic parameters

1.Material:reinforced nylon. It can stand with high pressure and has good tensile strength,toughness and elasticity ,wearing and falmable resisance.
2.Resistances:It is oil and acceleration is 5m/sec.(specfic speed and acceleration depends on specific).
3.Service life:Under normal conmal condition,5 million reciprocating motions can be reached(which is also related to the operating conditions.)
Technical data:


Tensile strength
180N/mm2Volume resistance1010-1015
Impact strength50Kj/m2Water Absorption4%
Tenprature range-40.C-130.CFriction factor0.3
Surface resistaned1010-1012Falme resistanceHB(UL49)





Advantages

1. It has very nicelooking appearance and has very rationalconstruction and flexible and high strength. It is reliable and easy to operate, install, dismantle or assemble. It is worthwhile mentioning that the antiwearing performance has been improvedgreatlydue to wear resistent material and alloy pin-shaft are used.

2. The product is flexible to bending and has low resistance, giving low noises. It can be used for a very long period of time without any deforming or hanging down.

3. The product is nicelooking, which makes the machine tool unit nicer looking as a whole and makes the machine tools and machineries more competitive in the international market.

Feature

The feature of the Engineering Plastic Roller Chain Cable Drag Chain:
1.The drag chain can adapt to max. Moving speed of 40m/sec.
2.When at the max moving speed, the sound pressure of noises shall not be greater than 68 db.
3.The service life of the drag chain shall not be less than 1 million times(reciprocating).

Application

The Engineering Plastic Roller Chain Cable Drag Chain has been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, doors and windows machines, injection molding machines, mechanical hands, overweight transportation equipment, automated warehouses.

Installation

1.Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover .Put the drag chain for cables and oip pipes according to the instructions provided .Put the cover back.Note that the fixed end and the moving end of a cable should be fixed by using a tension device
2.When used in a long sliding service,it is recommended to use a guiding grove,Please ask our technical personnel about the usage of the guiding grove.

Order

Kindly please advise the below:

1. Length:
2. Cable or pipe Max. Dia.:
3. Supporting board type:

4. Bending Radius(or the curved height ):
Chongqing Tianbao Conductor Busbar Electrical Co., Ltd is located in Chongqing, which is a fast developing city and one of four municipalities directly under the central government with convenient transportation.

Established in 2001 and been involved in the field for over ten years. Tianbao is a professional enterprise in researching and developing the electrical products abd engineering. Our company has long been adhering to the development strategy of importing technology, integrated innovation, independent research and cooperative research new products.

The main products include: Conductor rail system, bus duct system, cable festoon system, cable tray, drag chain and related accessories. We have helped many customers to solve the mobile powerr supply for crane, electric hoist, as well as factory, high building power distribution.

For low capacity, both PVC and aluminum alloy enclosed ocnductor system available. For heavy load, the insulated copper and aluminum conductor system can reach 150-3000 AMP. The AMP range for the copper and aluminum busway system is from 25-6300, excellent replacement for cable, providing lighting and power for factory and buildings.

With excellent product quality, good service and cooperation prestige our products are greatly favored by the customers around the general domestic and foreign markets.

Looking forward to the future, Tianbao will be carrying out the principle of the "Technology advantage, quality basis, customer first, honesty and trust". Our company will continue to make contributions to our country's modernization development and social progress.

We will devote ourselves to struggle for vitalizing national industry.
