Prod Model: |
TL |
Structure: |
Roller Chain |
Chain Size: |
1/2"*3/32" |
Pitch: |
45mm-180mm |
Min.Width(mm): |
60mm-200mm |
Material: |
Stainless Steel |
Surface Treatment: |
Polishing |
Feature: |
Fire Resistant, Oil Resistant, Heat Resistant |
Bending Radius: |
50mm-750mm |
Max.Width(mm): |
200mm-650mm |
Application: |
Warehouse, Large Machinery, Robots etc., as Short- |
Product Description

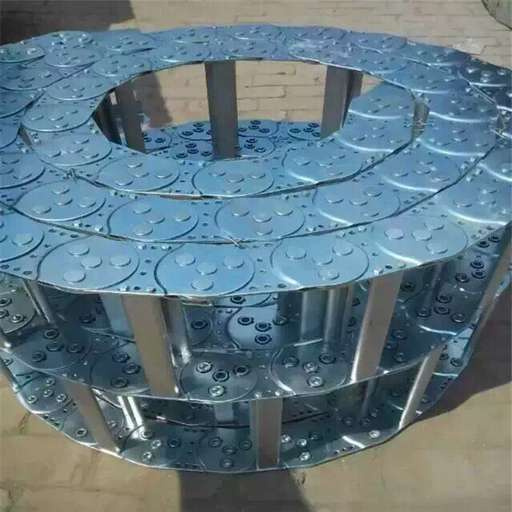

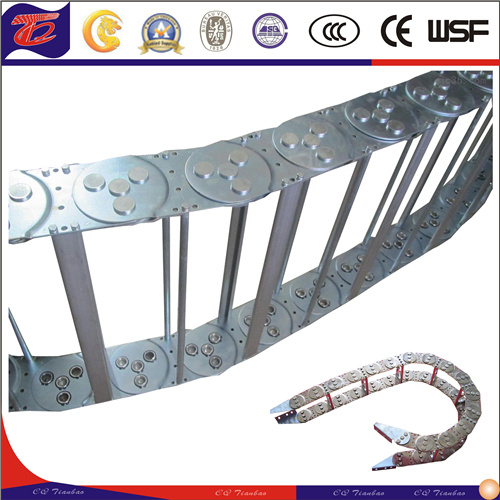

CNC Machine Steel Track Chain
Type
Type of the Moving Cables and Pipes Stainless Steel Conveyor Chain:
1.Supporting Board I Integral Type
2.Supporting Board II Separate Type
3.Supporting Board III Frame Type
Feature
The feature of the Moving Cables and Pipes Stainless Steel Conveyor Chain:
1.The drag chain can adapt to max. Moving speed of 40m/sec.
2.When at the max moving speed, the sound pressure of noises shall not be greater than 68 db.
3.The service life of the drag chain shall not be less than 1 million times(reciprocating).
-Specifications
1.Bending Radius: 50mm~750mm
2. Materials: Stainless steel or galvanized steel
3. Length: customized
4. Application: warehouse, large machinery, robots etc., as short-range,oil,gas, water hoses and cables moving purposes at the same time.
Model | Pitch | Bending radius (mm) | Min. width (mm) | Max. width (mm) | Max aperture of supporting board(mm) | Rectangular aperture(mm) | Length(m) |
TL45 | 45 | 50 | 60 | 200 | - | 14 | According to customer's requirements |
TL65 | 65 | 75 | 70 | 350 | 30 | 26 |
90 |
115 |
125 |
145 |
185 |
TL95 | 95 | 115 | 120 | 450 | 50 | 46 |
145 |
200 |
250 |
300 |
TL125 | 125 | 200 | 120 | 550 | 75 | 72 |
250 |
300 |
350 |
470 |
500 |
575 |
700 |
750 |
TL180 | 180 | 250 | 120 | 650 | 110 | - |
300 |
350 |
450 |
490 |
600 |
650 |
-Remark:
1.The cable drag chains are produced by using Italian technology.
2. When nonstandard bend radius or nonstandard cable carrier chains are required, we can make them according to the user's requirements.
3. When the max width Bamx is exceeded, compound type cable carrier chains that consist of 3 chain crawlers can be used.
-Components
TL series cable drag chain is composed of chain plate( top quality stainlesssteel with chromium plated), supporting board(extruded aluminum alloy) and pinshaft( alloy), etc.
-Order notice
1. Length:
2. Cable or pipe Max. Dia.:
3. Supporting board type:
4. Bending Radius(or the curved height ):
