| Prod Model: |
QC12K-4X2500 |
| Cutting Thickness: |
4mm |
| Cutting Width: |
2500mm |
| Power Supply: |
380V/50Hz/3pH or as Your Demand |
| Brand: |
Haven |
| Control System: |
E200,Da41,Dac310 |
Product Description

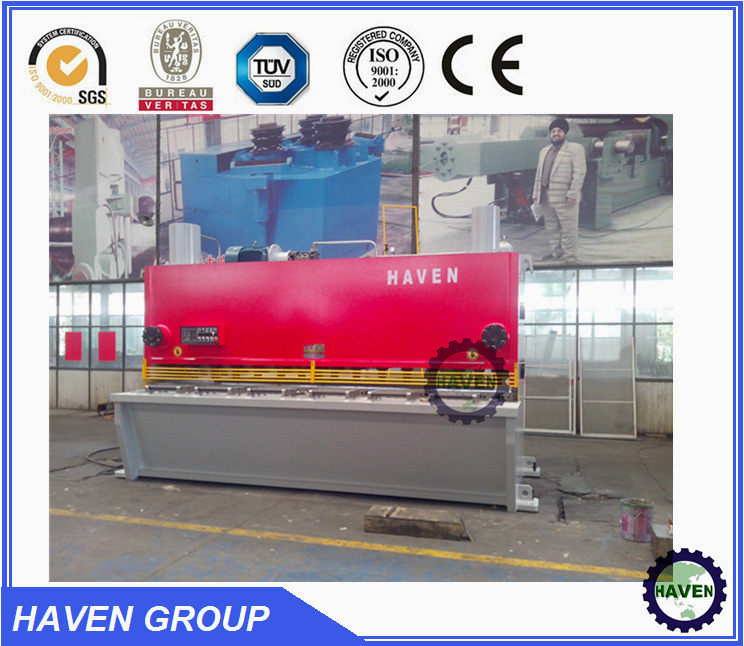

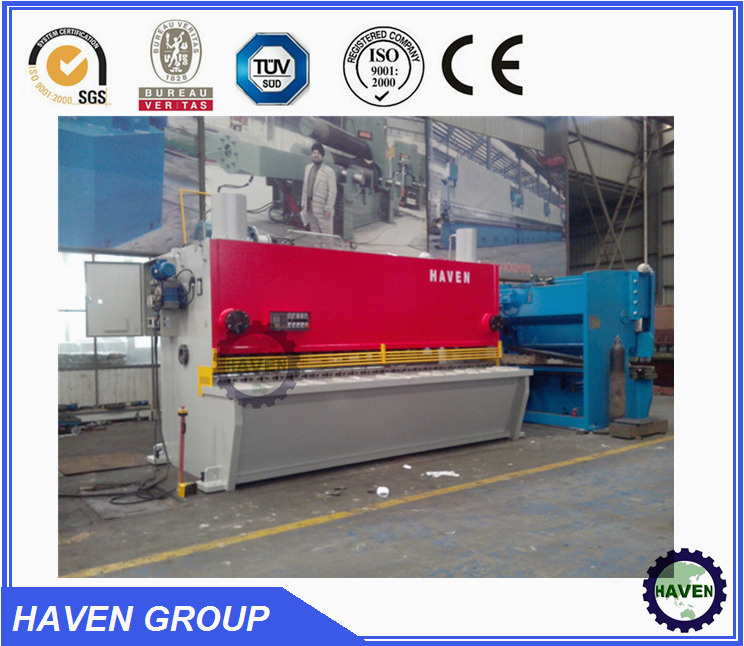

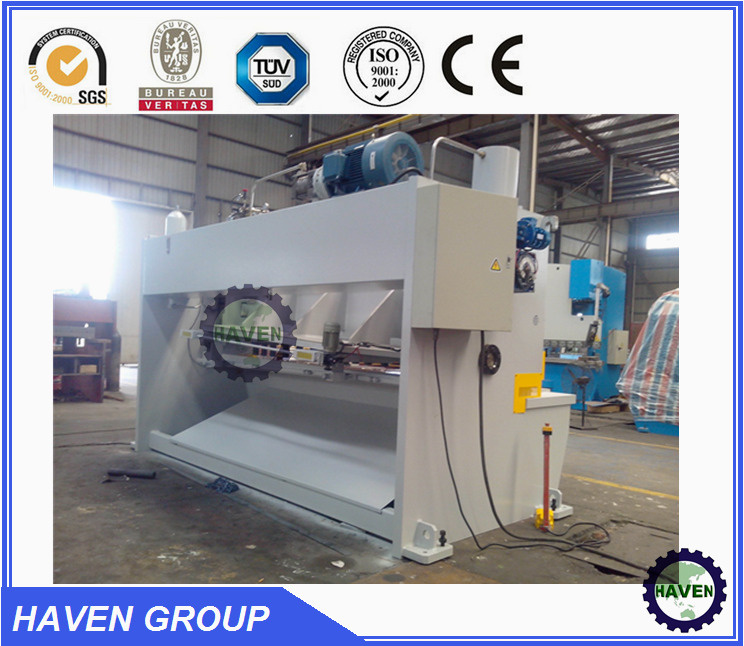

QC12K-4X2500 CNC Hydraulic Shearing Machine main feature:
1. Welded steel plate construction: Eliminate by double tempering, with high strength and superior rigidity
2. Integrated hydraulic system, with proven reliability
3. Adopt handwheel to rapidly and accurately adjust the blade clearance
4. The rectangular blades with 4 cutting edges, long in service life
5. The cutting beam of this plate shearing machine is in inner-inclined structure, thus improving the accuracy of products
6. This machining tool is ideal for metal machining
7. European key electrics
8. Light alignment device eases drawing line for cutting
9. Standard front support sheet frame
10. A set of standard blades
| Parameter | Shearing Thickness(mm) | Shearing Width(mm) | Shearing Angle | Number of stroke | Backgauge (mm) | Motor (kw) | Net W. (kg) | Overall Dimensions(mm) |
| 4*2000 | 4 | 2000 | 1° 30' | | 600 | 4 | 3500 | 2550*1430*1560 |
| 4*2500 | 4 | 2500 | 1° 30' | | 600 | 4 | 4000 | 3100*1430*1560 |
| 4*3200 | 4 | 3200 | 1° 30' | | 600 | 5.5 | 5300 | 3840*1680*1670 |
| 6*2500 | 6 | 2500 | 1° 30' | 18 | 20-600 | 7.5 | 6000 | 3040*1616*1620 |
| 6*3200 | 6 | 3200 | 1° 30' | 14 | 20-600 | 7.5 | 7200 | 3840*1610*1620 |
| 6*4000 | 6 | 4000 | 1° 30' | 10 | 20-600 | 7.5 | 10000 | 4640*1705*1700 |
| 6*6000 | 6 | 6000 | 1° 14' | 10 | 600 | 18.5 | 17000 | 6600*1950*1980 |
| 8*2500 | 8 | 2500 | 1° 30' | 14 | 20-600 | 11 | 6.500 | 3240*1610*1620 |
| 8*3200 | 8 | 3200 | 1° 30' | 10 | 20-600 | 11 | 7.800 | 4010*1610*1620 |
| 8*4000 | 8 | 4000 | 1° 30' | 8 | 20-600 | 11 | 11000 | 4680*1705*1700 |
| 8*6000 | 8 | 6000 | 1° 30' | 8 | 20-800 | 18.5 | 19000 | 6880*2210*2890 |
| 10*2500 | 10 | 2500 | 1° 48' | 12 | 20-600 | 15 | 8000 | 3350*2050*1950 |
| 10*3200 | 10 | 3200 | 1° 48' | 10 | 20-600 | 15 | 10000 | 4050*2050*1950 |
| 10*4000 | 10 | 4000 | 1° 30' | 8 | 10-800 | 18.5 | 12500 | 4850*2300*2200 |
| 10*6000 | 10 | 6000 | 1° 30' | 8 | 20-1000 | 30 | 20000 | 7020*2580*3280 |
| 12*2500 | 12 | 2500 | 1° 30' | 12 | 10-800 | 18.5 | 11000 | 3320*2050*2230 |
| 12*3200 | 12 | 3200 | 1° 30' | 10 | 10-800 | 18.5 | 12500 | 4020*2050*2230 |
| 12*4000 | 12 | 4000 | 2° | 8 | 10-800 | 22 | 15000 | 4850*2400*2200 |
| 12*6000 | 12 | 6000 | 1° 30' | 6 | 20-1000 | 37 | 23000 | 7020*2680*3380 |
| 12*8000 | 12 | 8000 | 1° 30' | 4 | 20-1000 | 45 | 33000 | 9020*2680*3380 |
| 16*2500 | 16 | 2500 | 2° 30' | 8 | 10-800 | 18.5 | 15000 | 4850*2400*2200 |
| 16*3200 | 16 | 3200 | 2 ° 30' | 7 | 10- 800 | 22 | 18000 | 4100*2060*2010 |
| 16*4000 | 16 | 4000 | 2° | 6 | 10-800 | 30 | 23000 | 4900*2400*2250 |
| 20*2500 | 20 | 2500 | 2° | 6 | 10-800 | 37 | 16000 | 3440*2088*2570 |
| 20*3200 | 20 | 3200 | 2° | 5 | 10-800 | 37 | 23000 | 4100*2350*2710 |
| 20*4000 | 20 | 4000 | 2° 30' | 4 | 10-800 | 37 | 30000 | 4920*2400*2790 |
| 25*2500 | 25 | 2500 | 3° | 5 | 40-1000 | 45 | 19000 | 3480*2410*2690 |
| 25*3200 | 25 | 3200 | 3° | 5 | 40-1000 | 45 | 26000 | 4180*2410*2690 |
| 25*4000 | 25 | 4000 | 3° | 5 | 40-1000 | 45 | 33000 | 4985*2410*2690 |
