| Prod Model: |
W27YPC-60 |
| Max.O.D: |
60*5mm |
| Delivery: |
Within 20 Days |
| Color: |
Blue or as Per Your Request |
| Voltage: |
380V/220V/415V |
Product Description

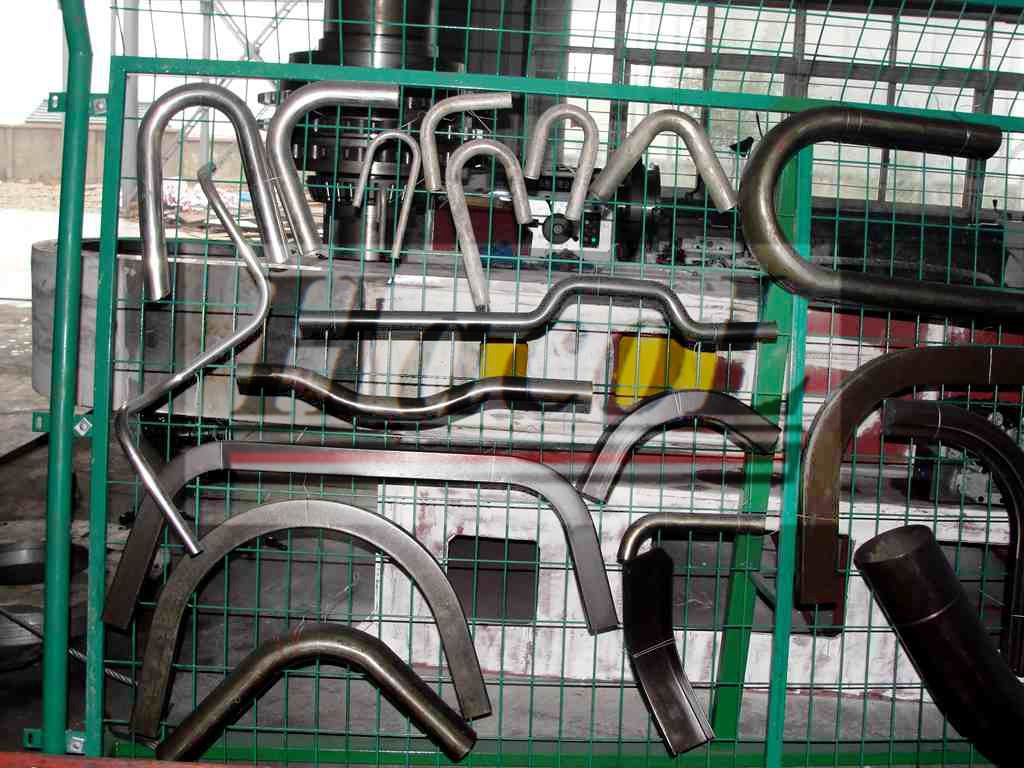

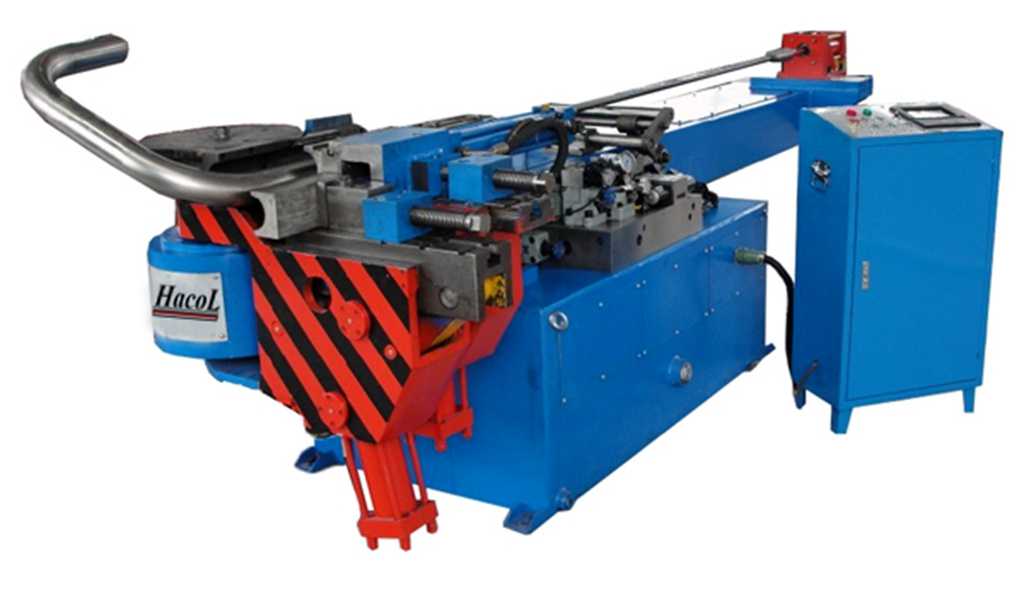

This pipe and tube bender is hydraulic driven; High bending accuracy; The pipe and tube bending machine bend pipes no wrinkles, no cracks; Low noise, easy operation; German technology, favorable price. It can also bend square tubes or pipes, flat bar, U or channel steel, H steel, round bar, angle bar steel, etc.
1. Machine-bed reinforcement design; Strength and rigidity guaranteed, no permanent distortion any more. Machine-bed extension for longer parts.
2. The main axis and transmission chainwheel are casted, processed, hopped together, strengthend structure. Double hydra-cylinder design, reset fast.
3. Throttle buffer design, reset and bend in precision and efficiency, DEXI patent.
4. Four connecting rods design, load and unload easier.
5. Full hydraulic drived: Hydraulic clamp, hydraulic press, hydraulic pipe bending.
6. LCD control panel, separate and moveable; PLC controlled, quiet&stable operation; Pedal switch for operator convenience.
7. Special accessories provided, eg. Crease-resist device, hydraulic auxiliary device, multi-ball mandrel.
| No. | Name | Parameter | Unit |
| 1 | Max. Rotary distance | 5000 | N.m |
| 2 | Max. Bend OD | Φ38*4 | mm |
| 3 | Min. Bend OD | Φ5 | mm |
| 4 | Max. Bend radius | R200 | mm |
| 5 | Min. Bend radius | R20 | mm |
| 6 | Max. Bend angle | 195 | ° |
| 7 | Feeding trolley follower stroke | 6000 | mm |
| 8 | Pipe end min. length | 300 | mm |
| 9 | Mold center height | 40 | mm |
| 10 | Machine working height | 1100 | mm |
| 11 | Bend speed C shaft | 0-5 | r/min. |
| 12 | Clamping set speed B shaft | 0-10 | r/min. |
| 13 | Feeding trolley walking speed Y shaft | 0-30 | m/min. |
| 14 | Speed series | variable speed | |
| 15 |
Repeat precision
| C shaft | +/-0.1 | ° |
| Y shaft | +/-0.1 | mm |
| B shaft | +/-0.1 | ° |
| 16 | Angle pre-set | 99 | type |
| 17 | Stop(plug) torque | 5000 | N*m |
| 18 | Motor total power | 7.5 | kw |
| 19 | Hydraulic system working pressure | <=10 | MPA |
| 20 | Fuel tank capacity | 1000 | L |
Anhui HACOL CNC Machinery Technology Co., Ltd. (HACOL CNC) is a professional manufacture of Hydraulic CNC sheet metal processing equipment with over 15 years experience.
Our factory is located in Bowang District Industrial Area, closed to Nanjing Lukou Airport with just 30km, and we are conveniently located to the Yangtze River Delta, which is with developed shipping networks to facilitate the delivery in China.
The HACOL company supply mainly machines for sheet metal fabrication include CNC hydraulic shearing machines, CNC hydraulic press brakes, also hydraulic iron worker, power presses, rolling machines, and spare parts such as goose-neck blade and Multi-V die etc...
Our products are widely used in special production fields such as decoration, metallurgy, ship, automobile, machinery, aviation, etc. The Company has a strong technical development team and can satisfy your specific demand on a personalized product by providing Build-To-Order service.
Up to now, our products have been sold over 50 countries, include Australia, Brazil, Bangladesh, Kazakhstan, Pakistan, Ukraine, Russia, Spain, Saudi Arabia, Syria, India, Indonesia, Thailand, and Vietnam, etc...HACOL has also set up agents in many countries like Brazil, Chile, Colombia, Kazakhstan, and Peru etc...
All that we do is committed to our customers create the most value, and to provide the best technology, products and services!
