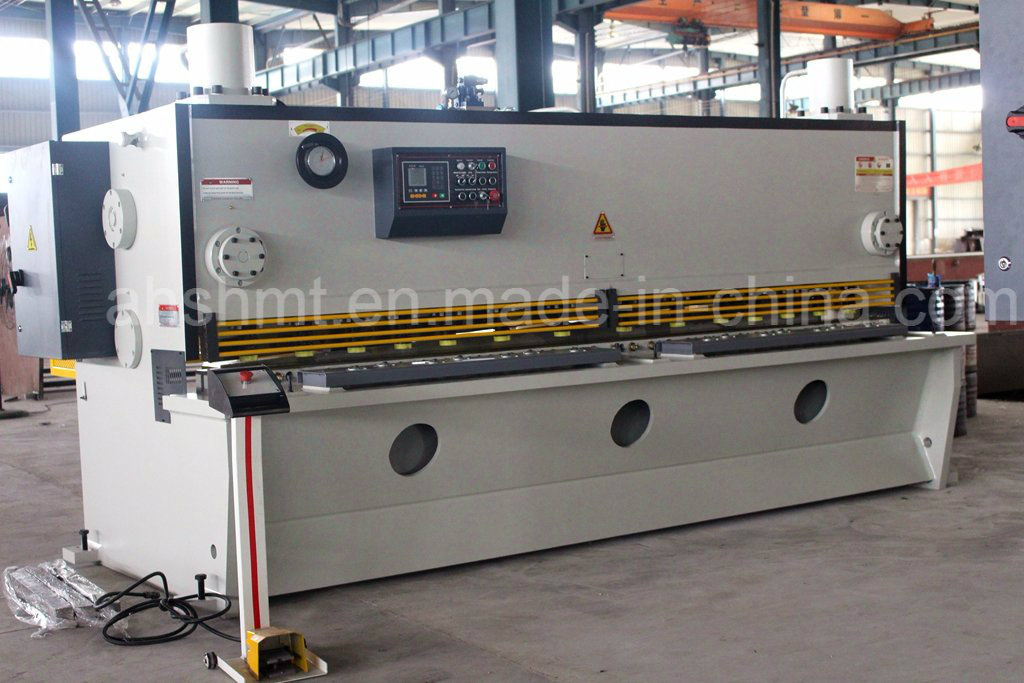

Stainless Steel Plate Guillotine Shearing Machine, Steel Guillotine Shearing Machine, Steel Plate Guillotine Shear
| Price: |
US $ 5000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
QC11Y |
| Material: |
Steel |
| Used Range: |
Mild Steel; Stainless Steel; Iron; |
| Color: |
Grey, or as Per Your Request |
| Voltage: |
380V, 50Hz, 3phase/ as Per Your Request |
| Shipment Container: |
40''hq |
| Delivery Days: |
15 Days |
| Suitable For: |
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel |
Product Description
• Steel welded structure with stress-free for reliable performance• Hydraulically driven blade holder, retracted by cylinder accumulator, convenient, reliable and elegant

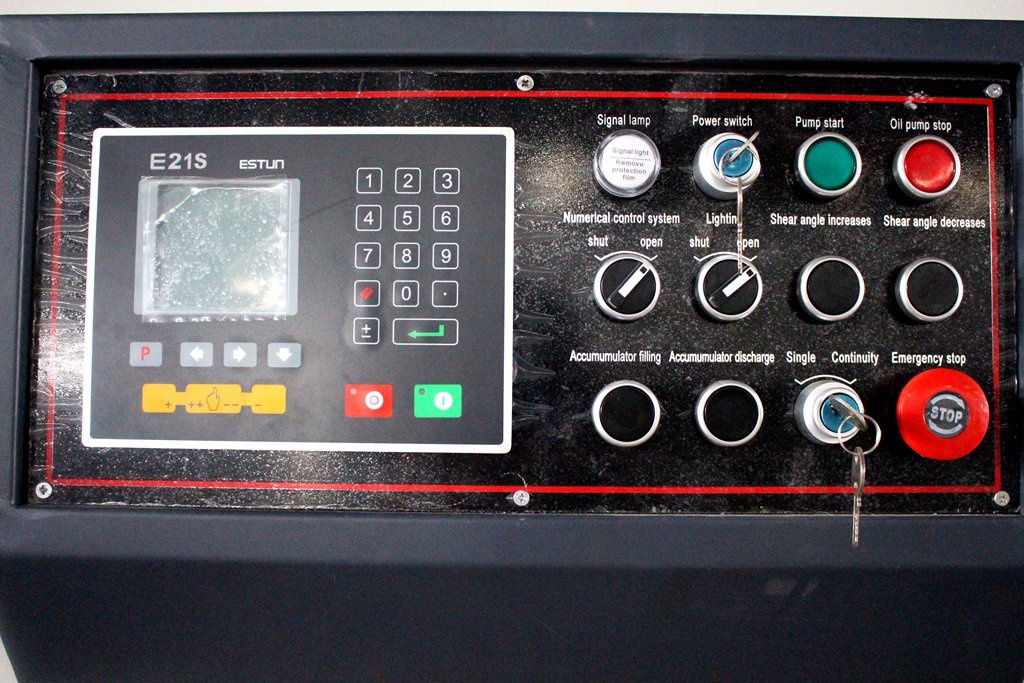

• E21 can control the movement of ram stroke and backgauge,achieving efficient and highly precise positioning
• Shadow line lighting;• Full or short stroke adjustment of blade holder to achieve high efficiency and productivity;• Foot switch for operation with emergency stop; • Blades with high tensile strength for cutting carbon steel and stainless steel;• Indicator-based adjustment of blades clearance is easy, convenient and swift;

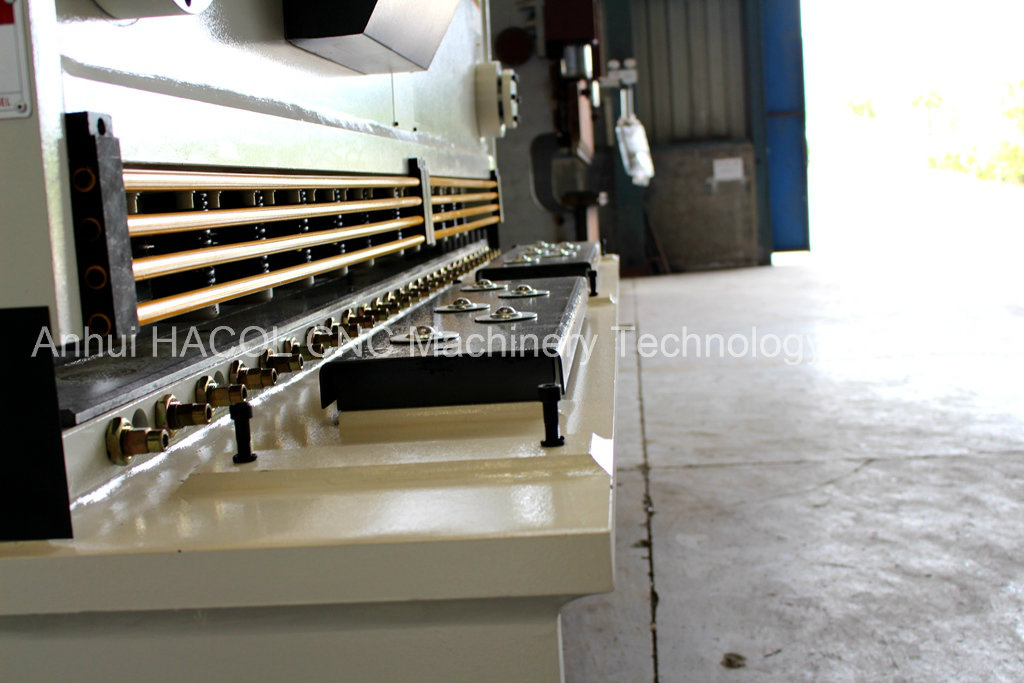

• Basic guard fence around the shear is for personnel safety;• Balls on worktable help for easy feeding of metal sheet and reducing labour intensity;
• Emergency stops on machine and foot switch, ensuring labor safety at every place;

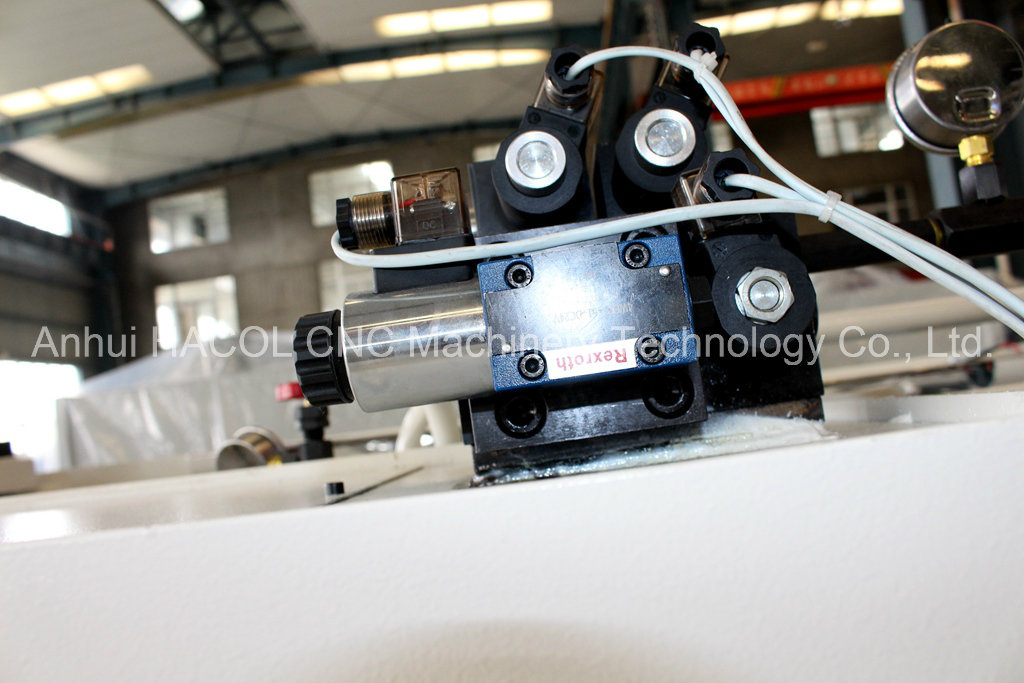

• Hydraulics of reputable brand is used for reliability;• Customized power connection voltage, such as 3phase, 220V, 60Hz in South America,etc;
| Model | Cutting Thickness | Cutting Length | Cutting angle | Strength | Strokes | Main power | Weight | Dimension(LxWxH) |
| | (mm) | (mm) | (°) | (KN/CM) | (Spm) | (kw) | (kg) | L×W×H(mm) |
| QC12Y-4×2500 | 4 | 2500 | 1°30′ | ≤450 | 10 | 5.5 | 3800 | 3040×1610×1620 |
| QC12Y-4×3200 | 4 | 3200 | 1°30′ | ≤450 | 10 | 5.5 | 5000 | 3840×1610×1620 |
| QC12Y-4×4000 | 4 | 4000 | 1°30′ | ≤450 | 8 | 5.5 | 6500 | 4600×1700×1700 |
| QC12Y-4×6000 | 4 | 6000 | 1°30′ | ≤450 | 5 | 7.5 | 11000 | 6460×2100×3200 |
| QC12Y-6×2000 | 6 | 2000 | 1°30′ | ≤450 | 12 | 7.5 | 430 | 2540×1610×1620 |
| QC12Y-6×2500 | 6 | 2500 | 1°30′ | ≤450 | 10 | 7.5 | 5000 | 3040×1610×1620 |
| QC12Y-6×3200 | 6 | 3200 | 1°30′ | ≤450 | 9 | 7.5 | 6000 | 3840×1610×1620 |
| QC12Y-6×4000 | 6 | 4000 | 1°30′ | ≤450 | 8 | 7.5 | 8200 | 4620×1750×1700 |
| QC12Y-6×6000 | 6 | 6000 | 1°30′ | ≤450 | 5 | 11 | 16500 | 6480×2100×2300 |
| QC12Y-8×2500 | 8 | 2500 | 1°30′ | ≤450 | 10 | 7.5 | 6000 | 3040×1700×1700 |
| QC12Y-8×3200 | 8 | 3200 | 1°30′ | ≤450 | 8 | 7.5 | 7200 | 3860×1700×1700 |
| QC12Y-8×4000 | 8 | 4000 | 1°30′ | ≤450 | 8 | 7.5 | 8800 | 4640×1700×1700 |
| QC12Y-8×6000 | 8 | 6000 | 1°30′ | ≤450 | 8 | 11 | 18000 | 6480×2100×2350 |
| QC12Y-10×2500 | 10 | 2500 | 1°30′ | ≤450 | 9 | 11 | 7300 | 3040×1700×1700 |
| QC12Y-10×3200 | 10 | 3200 | 2° | ≤450 | 9 | 11 | 8000 | 3860×1700×1700 |
| QC12Y-10×4000 | 10 | 4000 | 2° | ≤450 | 8 | 11 | 12050 | 4650×2100×2000 |
| QC12Y-10×6000 | 10 | 6000 | 1°30′ | ≤450 | 5 | 15 | 24000 | 6500×2100×2300 |
| QC12Y-12×2500 | 12 | 2500 | 1°40′ | ≤450 | 9 | 18.5 | 9000 | 3140×2150×2000 |
| QC12Y-12×3200 | 12 | 3200 | 1°40′ | ≤450 | 9 | 18.5 | 10800 | 3880×2150×2000 |
| QC12Y-12×4000 | 12 | 4000 | 1°40′ | ≤450 | 8 | 18.5 | 13000 | 4680×2150×2000 |
| QC12Y-12×6000 | 12 | 6000 | 2° | ≤450 | 5 | 18.5 | 29500 | 6900×2600×2700 |
| QC12Y-12×8000 | 12 | 8000 | 2° | ≤450 | 5 | 18.5 | 46500 | 9000×3500×3500 |
| QC12Y-16×2500 | 16 | 2500 | 2°30′ | ≤450 | 9 | 18.5 | 11000 | 3140×2150×2000 |
| QC12Y-16×3200 | 16 | 3200 | 2°30′ | ≤450 | 8 | 18.5 | 13000 | 3880×2150×2000 |
| QC12Y-16×4000 | 16 | 4000 | 2°30′ | ≤450 | 8 | 18.5 | 16300 | 4650×2150×2200 |
| QC12Y-16×6000 | 16 | 6000 | 2°30′ | ≤450 | 5 | 22 | 36000 | 6900×2700×2700 |
| QC12Y-16×8000 | 16 | 8000 | 2°30′ | ≤450 | 5 | 22 | 75000 | 9000×3500×3500 |
| QC12Y-20×2500 | 20 | 2500 | 3° | ≤450 | 8 | 22 | 15800 | 3440×2300×2500 |
| QC12Y-20×3200 | 20 | 3200 | 3° | ≤450 | 8 | 22 | 18500 | 4150×2350×2700 |
| QC12Y-20×4000 | 20 | 4000 | 3° | ≤450 | 5 | 22 | 21500 | 4850×2600×2400 |
| QC12Y-20×6000 | 20 | 6000 | 3° | ≤450 | 4 | 22 | 47000 | 6700×3000×3000 |
| QC12Y-25×2500 | 25 | 2500 | 3° | ≤450 | 8 | 37 | 19000 | 3200×2700×2900 |
| QC12Y-25×3200 | 25 | 3200 | 3° | ≤450 | 5 | 37 | 23000 | 4200×2500×2600 |
| QC12Y-30×2500 | 30 | 2500 | 3° | ≤450 | 4 | 37 | 23500 | 3300×2900×3000 |
| QC12Y-30×3200 | 30 | 3200 | 3°30′ | ≤450 | 4 | 40 | 26000 | 4200×2500×2600 |
| QC12Y-40×2500 | 40 | 2500 | 4° | ≤450 | 3 | 75 | 38000 | 3200×3300×3200 |
| QC12Y-40×3200 | 40 | 3200 | 4° | ≤450 | 3 | 90 | 49000 | 4300×3300×3000 |
Our Services:1 Standardization of Service "112"
1: Expect a response in 1 hour
1: a solution will be provided in 1 day
2: We will fix the issue in 2 days
2. Installation ServiceInstallation Services are available for HACOL machinery with disassemble machine. We dispatch technicians to customers' locations for installation and configuration of machines.( Customers only need to afford technician airfare and lodging)
3. Training ServiceOur technicians are available to visit your factory and offer comprehensive training of how to operate our CNC machines. You may also send your technician to our facilities to undergo a more rigorous training program.
4. Quality Guarantee1.All HACOL machines quality are in guarantee and produced according to the agreed technical data.
2. Each machine will be performed a final test after production and before shipment. We run the machines for a few days, and then use it under similar conditions that the customer will be using. After making sure the machines is performing properly, we will then make the shipment.
3.Each unit machine has a FIVE year warranty. If you would like to know some more details about this product, please leave a message with your contact information, we will reply you at earliest time!
Anhui HACOL CNC Machinery Technology Co., Ltd. (HACOL CNC) is a professional manufacture of Hydraulic CNC sheet metal processing equipment with over 15 years experience.
Our factory is located in Bowang District Industrial Area, closed to Nanjing Lukou Airport with just 30km, and we are conveniently located to the Yangtze River Delta, which is with developed shipping networks to facilitate the delivery in China.
The HACOL company supply mainly machines for sheet metal fabrication include CNC hydraulic shearing machines, CNC hydraulic press brakes, also hydraulic iron worker, power presses, rolling machines, and spare parts such as goose-neck blade and Multi-V die etc...
Our products are widely used in special production fields such as decoration, metallurgy, ship, automobile, machinery, aviation, etc. The Company has a strong technical development team and can satisfy your specific demand on a personalized product by providing Build-To-Order service.
Up to now, our products have been sold over 50 countries, include Australia, Brazil, Bangladesh, Kazakhstan, Pakistan, Ukraine, Russia, Spain, Saudi Arabia, Syria, India, Indonesia, Thailand, and Vietnam, etc...HACOL has also set up agents in many countries like Brazil, Chile, Colombia, Kazakhstan, and Peru etc...
All that we do is committed to our customers create the most value, and to provide the best technology, products and services!
