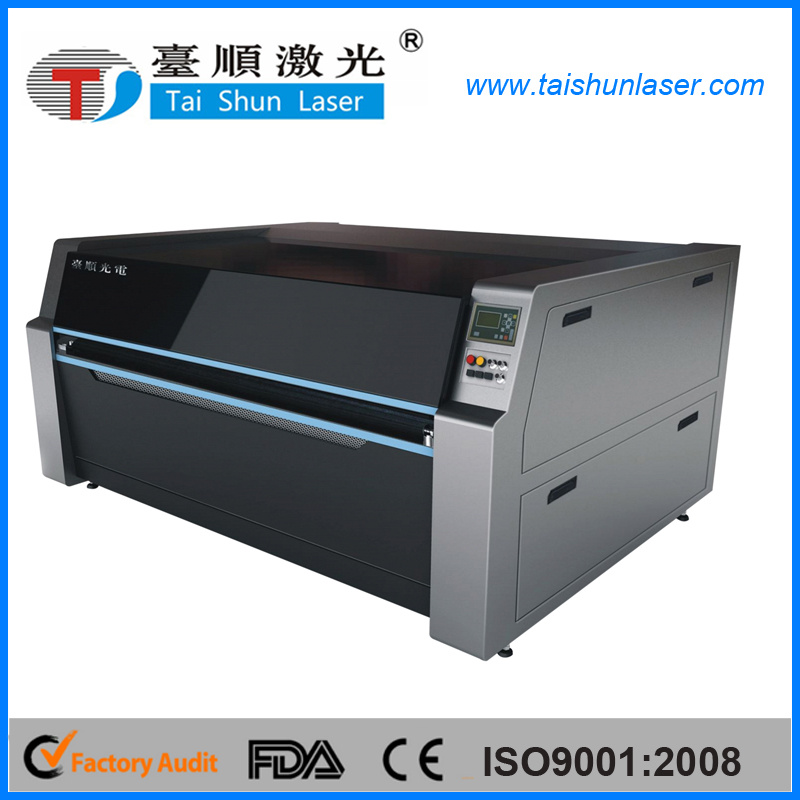

CO2 Laser Cutter for Fabric Textile Pattern Cutting
| Price: |
US $ 4000-6500/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
TSHY-180140LD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
CO2 |
| Application Area: |
Car Carpet, Plush Toys, Home Textiles, Garments |
| Application Material: |
Fabric, Non-Woven, Leather, Textile |
| Power Supply: |
AC220V+-5%50Hz |
| Graphic Format Supported: |
Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp |
| Cutting Area: |
1800X1400mm |
| Output Power: |
60W, 80W, 100W, 150W, 180W |
| Cutting Speed: |
Adjustable |
| Working Table: |
Conveyor Working Table |
| Guarantee: |
One Year Free Maintenance |
Product Description
Main Body shipped| 1). 1× 80watts Co2 Laser tube (Installed in the machine). |
| 2). 3× Reflecting Mirrors + 1× Focusing Lens (Installed in the machine). |
| 3). 1× 3000W Industrial Water Chiller |
| 4). 1× conveyor working table OR 1× Honeycomb table |
| 5). 1× Air Compressor + 2× Exhaust blower |
| 6). 1× USB cable (Connecting PC and Laser) |
| 7). 1× Manual (User-friendly User's Manual, Guiding video & Demo video.) |
| 8). 1× Power cable(we also stock 110V~240V power version and USA.UK.EU.AU plugs for the country all over the world) |
| 9). 1× Tool box |
Technic parameter:| Model | TSC160300LD | TSC210300LD | TSC320600 | TS160100LD | TSHY180100LD | TSHY180140 | TSZD9050 | TSZD15090 |
| Working Area | 1600x3000mm | 2100x3000mm | 3200x6000mm | 1600x1000 | 1800x1000mm | 1800x1400mm | 900x500mm | 1500x900mm |
| Laser power | 80w | 80w. | 80w | 80wx2 | 80wx2 | 80w | 60W | 60W |
| Cutting Depth | Rubber 0-25mm |
| Engraving speed | 0-1000mm/s adjustable |
| Cutting speed | 0-600mm/s adjustable |
| Worktable | Fiex or conveyor or honeycomb work table |
| Resetting Positioning Accuracy | ≤±0.01mm |
| Graphic format supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF,AI etc. |
| Software supported | Coreldraw, Photoshop, AutoCAD |

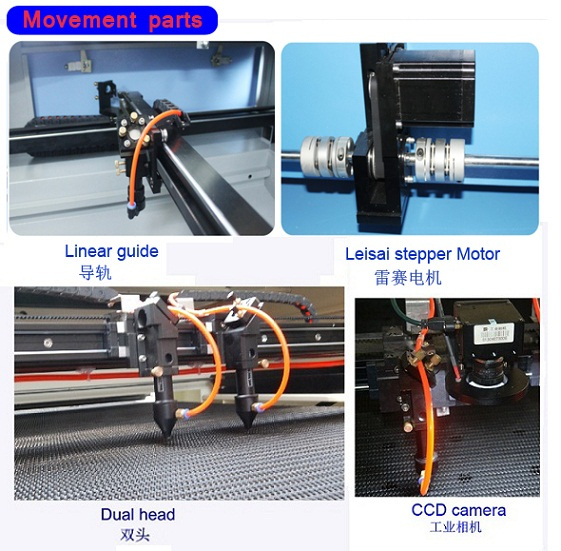

| Motor type | Stepper Motor |
| Cooling System | Water pumb/Water chiller |
| Laser tube lifetime | EFR/SPT/SP laser tube :3500h Reci laser tube:10000h |
| Power supply | 220V±10% 50HZ or 110V±10% 60HZ |
| Main configuration | 1x Laser tube |
| 1set x Reflector and lens |
| 1xWater chiller 1x air compressor 1x exhaust fan ,1x water pipe |
| 1x USB cable 1xcommunication cable 1x U disk |
| Optional Devices | Rotary device :engraving Cylinder, Pen ,Glass Cup |
| Red dot pointer, Auto Focus system |
| Auto-feeding system |
| Water chiller system |
| Consumable Parts | Laser Tube 80w/100w/130w ,reflectors and lens |
Feature:

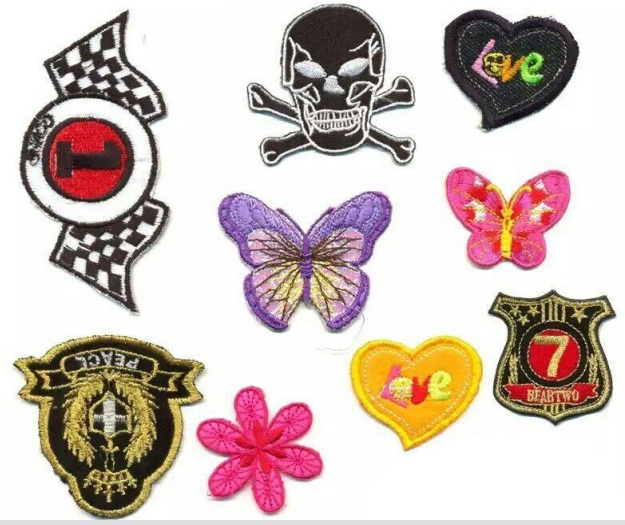

1, It's customized for various types fabric materials'cutting for embroidery,sportswear,printing insoles,shoes,etc
2, It's good to cut any shapes without fringe and sewing automatically.
3,Converyor working table with negative pressure adsorption function can cut long size fabric continuously and to impress you, thus the fabrics still kept flatly and smoothly.
4,The following-up fume extractor system is going with laser head to save power consumption and good fume chasing effect.
5, LCP control system support online and offline data transferring.
6, Built up a data base in computer to save space room for the cutting workshop7 Cutting material thickness: acrylic 0-30 mm, other material might be some change8 This machine uses USB port and USB flash disk to transmit data, improving working speed and efficiency greatly.Close up
Application:
1. Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, sponge, insulating material and other industrial flexible materials.
2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.
3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc.
4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc.
5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.
6. Outdoor products: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, fire balloon, parachute, paraglider, parasail, rubber dinghy, canopy, awning, etc.
Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Guarantee&After-sale service
1, Best components, perfect technics and strictly ex factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.Demo videohttps://www.youtube.com/watch?v=xs_Im20mv6g carpet cutting
https://www.youtube.com/watch?v=GbkX77rZW_Q labels engraving
https://www.youtube.com/watch?v=DOUXxajO3_w insole engraving
https://www.youtube.com/watch?v=hPIgjdvG_GY fiber laser cutting metal
https://www.youtube.com/watch?v=KJ4UGkaCjkk fiber laser cutting machine
https://youtu.be/5PgXtVNajn4 large format fabric cutting
https://youtu.be/L6Rz6L3UaXY embroidery applique cutting
https://youtu.be/uy6NRT4HsrU MDF laser cutting

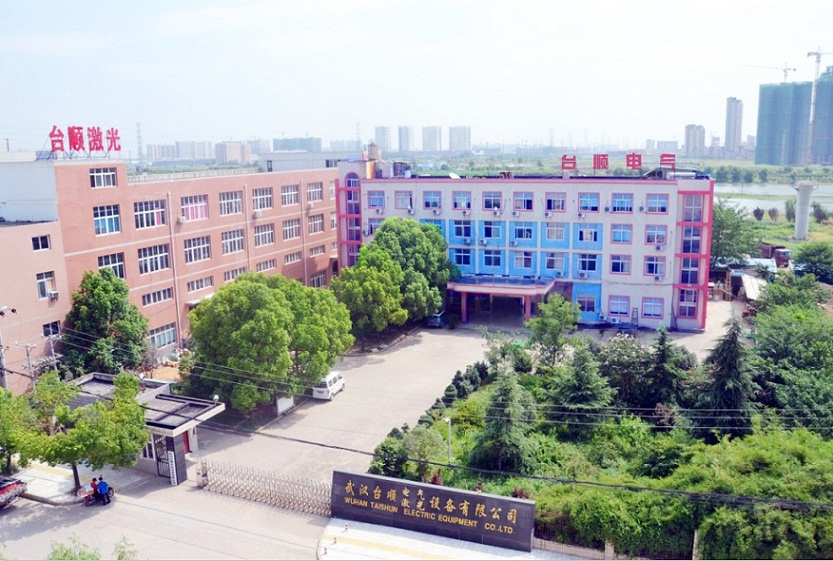

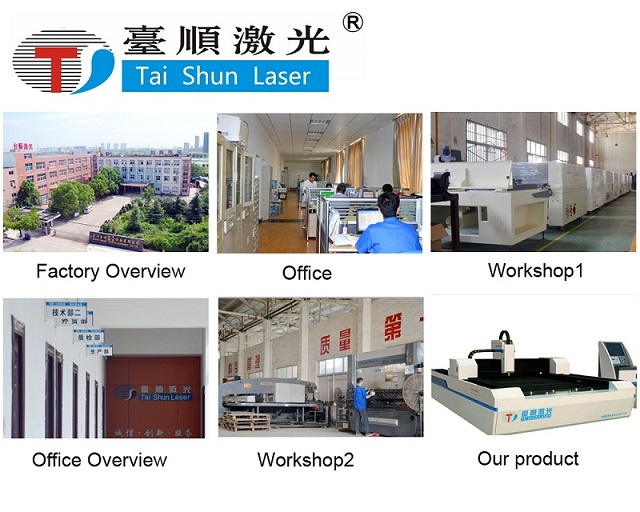

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.

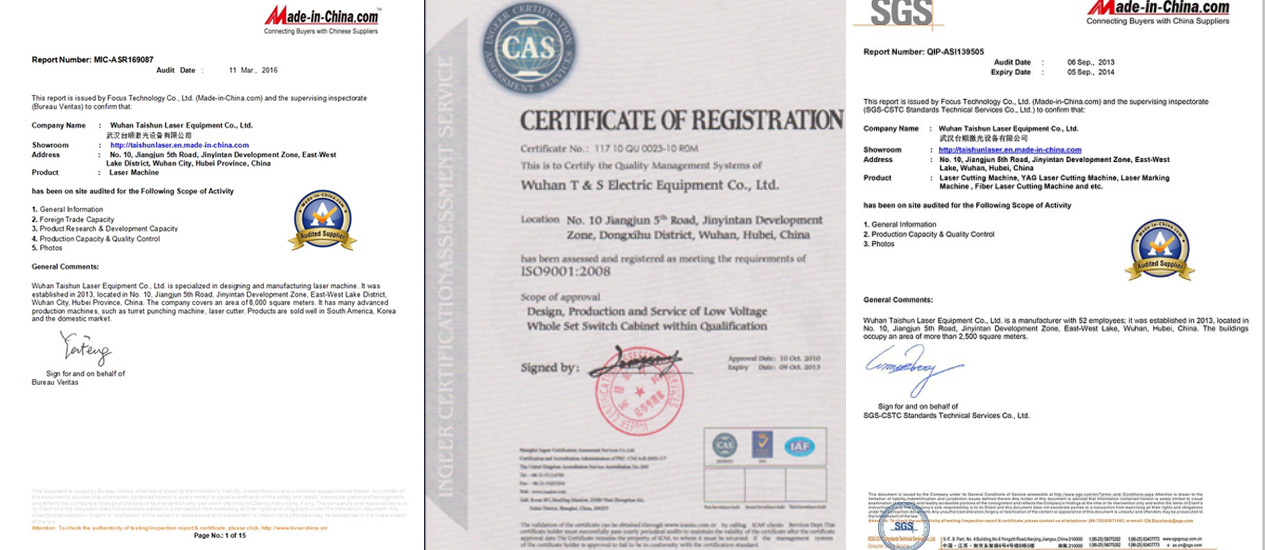

Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
