| Prod Model: |
TSC160100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
CO2 |
| Application Area: |
Car Accessories, Plush Toys, Home Textiles |
| Application Material: |
Fabric, Acrylic MDF, Wood, Leather |
| Power Supply: |
AC220V+-5%50Hz |
| Graphic Format Supported: |
Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp |
| Cutting Area: |
1600mmx1000mm |
| Output Power: |
80W×2 |
| Cutting Speed: |
Adjustable |
| Working Table: |
Conveyor Working Table |
| Guarantee: |
One Year Free Maintenance |
Product Description
Product parameter:
Laser Type:CO2 glass laser tube

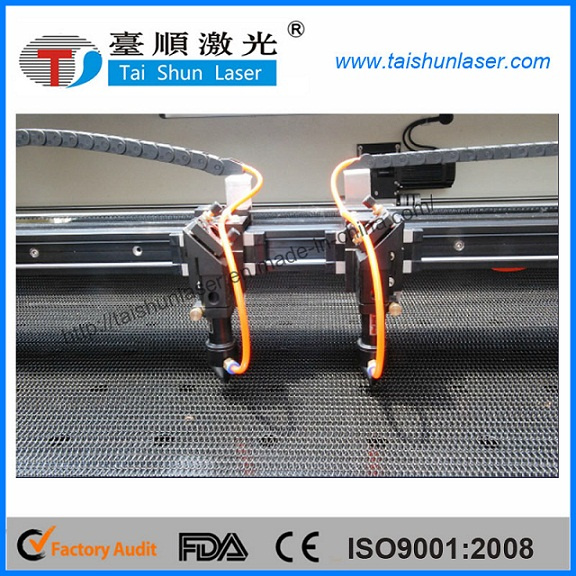

Laser head:dual head to cut faster,single head to cut for large format,available to choose according to the production demand
Type setting softable:intelligent Taishun typesetting software to achieve continuous feeding material
Water Chiller:standard industried water cooling system CW3000/make sure the laser tube work in ambient temperature.
Fume extractor: 2 sets 550W exhaust fan
Linear guide Rail:imported brand of Hiwin or others
Feature:
1.Humanized and most modernized design of appearance reflects caring idea of Tai Shan Design department

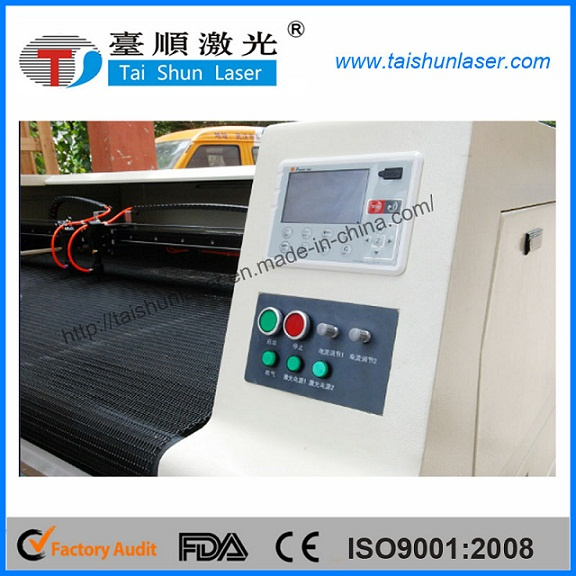

2.Advanced DSP control system and special motion control ship make the machines cut curve continuously
and rapidly,the selection function of the shortest path makes efficiency higher.
3.All machined are configurated with U-disk offline control system,so it is more simple and easier to operate.
4.The red-light positioning device can indicate process site of laser head to avoid trouble of manual position.
5 Strong steel frame structure body makes the engraving process stable with no moving or deformation

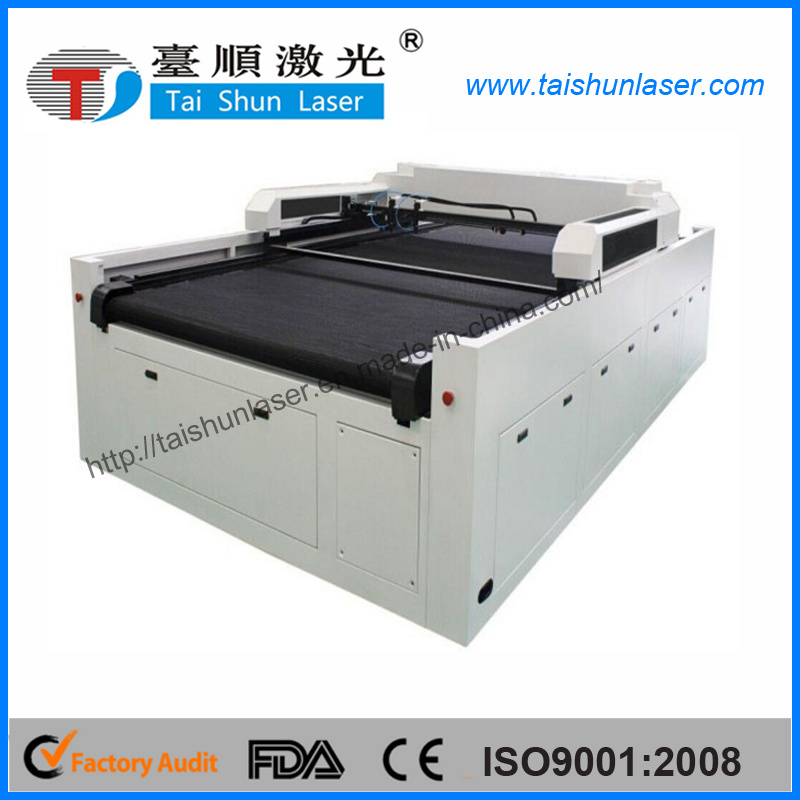

6,Converyor working table with negative pressure adsorption function can cut long size fabric continuously and to impress you, thus the fabrics still kept flatly and smoothly.
7,The following-up fume extractor system is going with laser head to save power consumption and good fume chasing effect.
Parameter:
| Laser type | Glass CO2 laser tube | Movement system | stepping motor system |
| Output power | 80Wx2 | Cooling system | Water cooling |
| Working area | 1600mmx1000mm | Electrical Voltage | AC220V+-5% 50/60hz |
| Working table | conveyor working table | Supported file format | AI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF |
| Working speed | Adjustable | Standard accessories | 1 set 550W exhuast fans |
| Position accuracy | plus minus 0.1mm | Connect interface | USB,PC |
| Laser head | double head CCD camera for recognition |
Application:
1. Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, sponge, insulating material and other industrial flexible materials.
2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.
3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc.
4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc.
5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.
6. Outdoor products: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, fire balloon, parachute, paraglider, parasail, rubber dinghy, canopy, awning, etc.
Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
