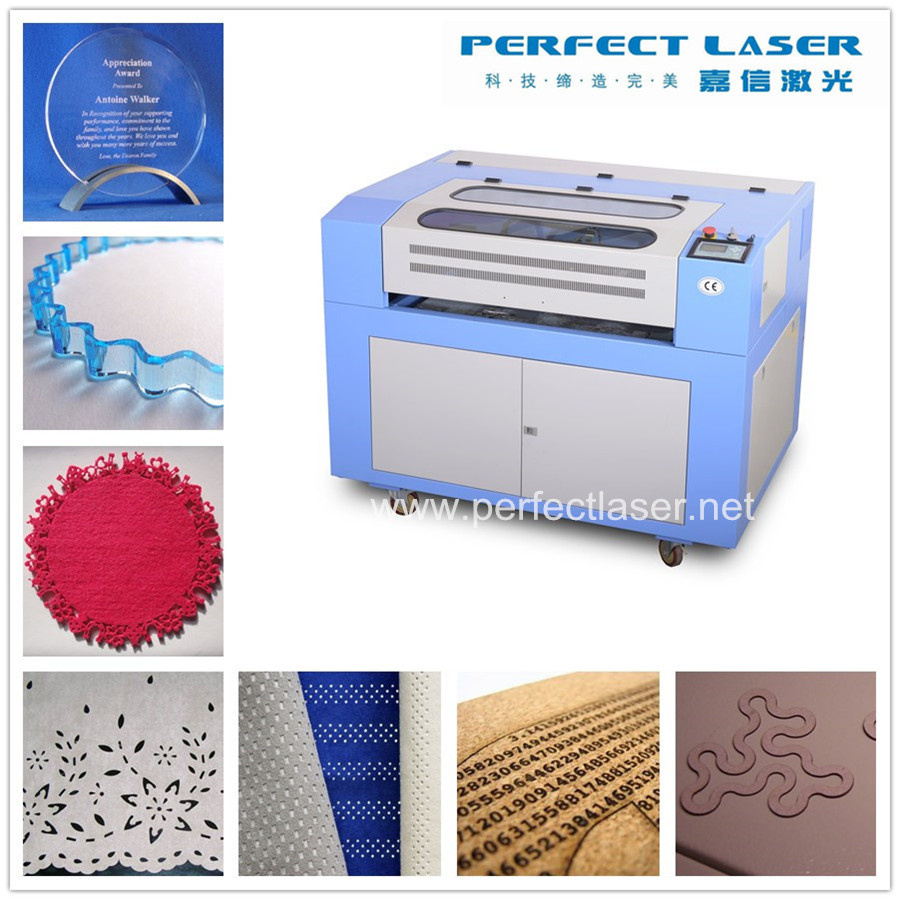

CO2 Laser Engraver Cutter Machine for Acrylic/Plastic/Wood Pedk-9060
| Price: |
US $ 3300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PEDK-9060 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Usage: |
Plastic |
| Certification: |
SGS, Ce, RoHS, ISO 9001 |
| Laser Type: |
CO2 |
| Control: |
CNC |
| Current: |
AC |
| Condition: |
New |
Product Description
CO2 Laser Engraver Cutter Machine for Acrylic/Plastic/Wood Pedk-9060
Applied Material:
Plexiglass, Acrylic, PVC, Leather, Textile, Cloth, Rubber, Plastic, Wood, Paper, Stone etc.
Non-metal materials.
Applied Industry:
Plexiglass, Rubber Plate, Mould, craft, advertising decoration, paper etc. Industry.
Features:
1) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
2)LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
3) Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
4) Special Front and back running-through design, the unique door for the limitless engraved materials through.
5)Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
6) Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7) Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8)High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
9) Red Light Pointer realizes the exact position without laser.
10) Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.
11) With powerful edition software and strong compatibility, it can support BMP, PLT, AL, DST, DXF etc.
File format.
Applied Scope:
Motorized up-down table as optional item, easy operation, wide application, it both can cut, engrave and make hole etc. It's the preferred type to produce different crafts.
Model |
PEDK-4030 |
PEDK-6040 |
PEDK-9060 |
PEDK-13090 |
PEDK-160100 |
PEDK-130250 |
PEDK-130180 |
PEDK-160260 |
Working Area |
400×300mm |
600×400mm |
900×600mm |
1300×900
mm |
1600×1000mm |
1300×2500mm |
1300×1800mm |
1600×2600mm |
Laser Power |
40W / 50W |
50W / 60W |
60W / 80W |
60W / 80W / 100W / 120W / 150W |
Laser Type |
Hermetic and Detached Co2 Laser Tube |
Engraving Speed |
1-60000mm/min |
Cutting Speed |
1-10000mm/min |
Repeat Location Accuracy |
± 0.0125mm |
Laser Power Controlling |
1-100% Manual Adjustment and Software Controlling |
Voltage |
220V(±10%) 50Hz |
Cooling Mode |
Water Cooling and Protect System |
Cutting Platform |
Professional Thickening Strip or Honeycomb Work Table |
Controlling Mode |
CNC Professional Control System |
Support Graphics Formats |
BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF
Compatible HPG Order To Support DXF, WMF, BMP, DXT |
Power Controlling Mode |
Laser Energy Combining Movement Control System |
Control Software |
Original Perfect Laser's Engraving & Cutting Software |
Training |
Video Training |
Guarantee |
12 month Guarantee Period |
Remark :
1.Payment terms: T/T, L/C, West Union,Alibaba Escrow.
2. Delivery lead time: 7-10 working days after receipt of the advance payment.
3. Delivery method: by sea or air shipment.
4. Packing: compound wooden cases with exporting standard
Training&Service:
1. 12months Gurantee Period;
2. Free Online Consulting Service
3. Free Operation Tranining in our factory;
4. Detailed Operational Manual &Traning CD in English Version
5. Guarantee of Quality and After Sales-Service:
The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination. Except the artificial damage and wearing parts, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China Perfect Laser!
1):The exact material you want to engrave/cut? (wood, acrylic, cloth, fabric, leather, rubber, paper, plastic, marble....)
2):The cutting depthon above materials?(max thickness, 3 mm, 6 mm, 15 mm, 20 mm....)
3):The working area you demand? (max dimension of material, width*length, 600*400 mm, 900*600 mm, 1300*900 mm,1600*1000mm...)Working area and laser power can be customized.
4)After cut/engrave, what will be the material used for? (application)
5)Are you an end user or reseller?
Welcome for your inquiry soon.
Perfect Laser (Wuhan) Co., Ltd. is a professional manufacturer of industrial laser equipment, located in China "Optics Valley" - Wuhan City. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipment.
With over 20 years efforts and innovation. Our products have been exported to 180 different countries and regions. Our company has the European CE certificate, Germany TUV certificate, ISO9001: 2000 quality system certificate.
We are one of the most trustworthy company in central China among laser equipment manufacturers. Winning the honor of "Hi-tech Eenterprise" and "Famous Brand in Hubei Province", Perfect Laser willcontinue to embrace and create a better future with open mind.
Perfect Laser History
1995, Company established. Distribute large laser medical surgical instruments.
2003, Renamed as Wuhan Perfect Laser Co., Ltd. (China), set up business in the field of laser equipment manufacturing and sales.
2005, Set up Perfect Laser (Wuhan) Co., Ltd international group. Become an international group Co., Ltd, which concludes mass production, science and technology research and development, global sales and after sales service.
2008, Obtained the ISO 9001: 2000 Quality Management System Certification.
2009, Obtained "The Most Competitive Brand In China".
2010, Become the most popular laser equipment manufacturers and exporters of central China.
2011, Acquired The European Union CE certification, to prove stable reliability of products.
2012, Became the most reliable and trustworthy integrity manufacturing enterprises, products exported to more than 130 countries and regions.
2013, Become the excellent member of the "Hubei Association of E-commerce Association", make mutual progress with other members through exchange of learning.
2014, Get approval to apply for "High-tech Enterprise" and gained eight patents. Products exported to over 180 countries.
2015, Won the honor of "high-tech Enterprises". Become director member of " Hubei Association of E-commerce Association"
Why Choose Perfect Laser
Professional
We produce 20 series product ranges and 200 different models, including: Fiber Laser, YAG laser, CO2 Laser Engraver, YAG Metal Cutting Machine, Fiber metal cutter, Robot Metal Laser Cutting Machine, Fiber & YAG Laser Welder, as well as supplying laser components.
Reliable Quality
Approved by ISO9001 and European CE certified, have excellent quality and reliable quality. We have full experience in R&D, manufacturing, sales, exporting and after-sales services.
24 hours Technical Support
Perfect Laser offer you the overall pre-sales service, including free pre-sales consulting, free sample making, factory-visiting is available for you any time. We offer 24 hours after-sales service.
Any kind of technical support are available for users.
Flexible Payment
With products exported to over 180 countries and regions, we have adequate funds circulation, we accept flexible payment terms to reduce your financial pressure.
Customer-Oriented
Perfect Laser always hold the banner of matching the needs of users of services throughout the course of service. We committed to grow together with customers and partners.
