| Prod Model: |
PEDK-9060 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Usage: |
Plastic |
| Laser Type: |
CO2 |
| Control: |
CNC |
| Current: |
AC |
| Condition: |
New |
| Model: |
Wood Process and Matching Equipment |
Product Description

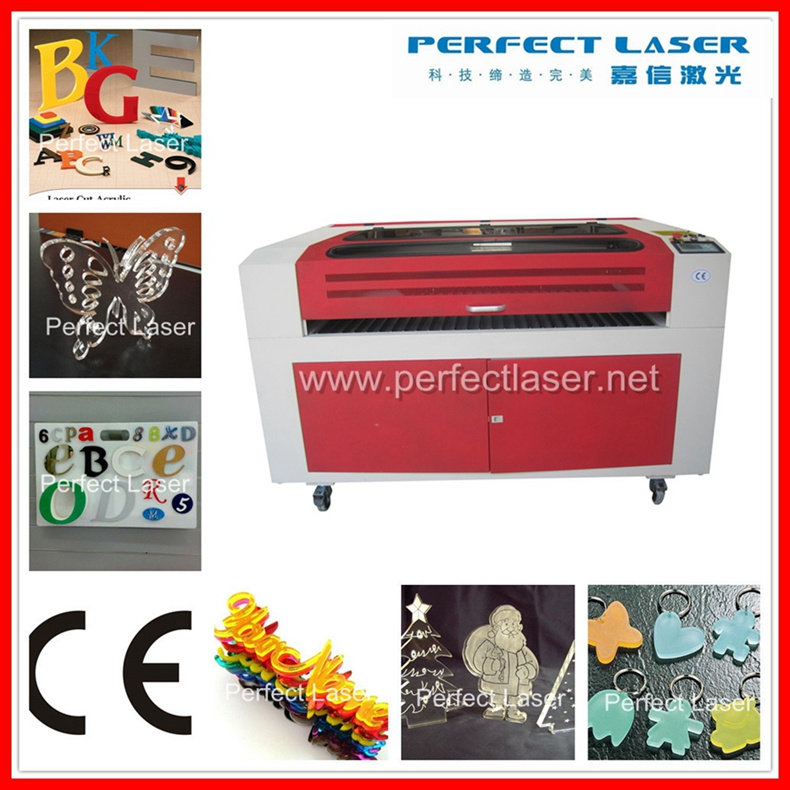

CO2 Laser Engraver Cutter Machine Pedk-9060
Description for 9060 Laser Cutter:Rotary Function Laser Engraving Machine install Rotary Control System with Rotary Fixture and Motorized up and down Table on the normal Laser engraving machine, which applicable in lots of column or cone and cylindrical work piece surface-engrave, usually applied in Advertisement and Craftwork.

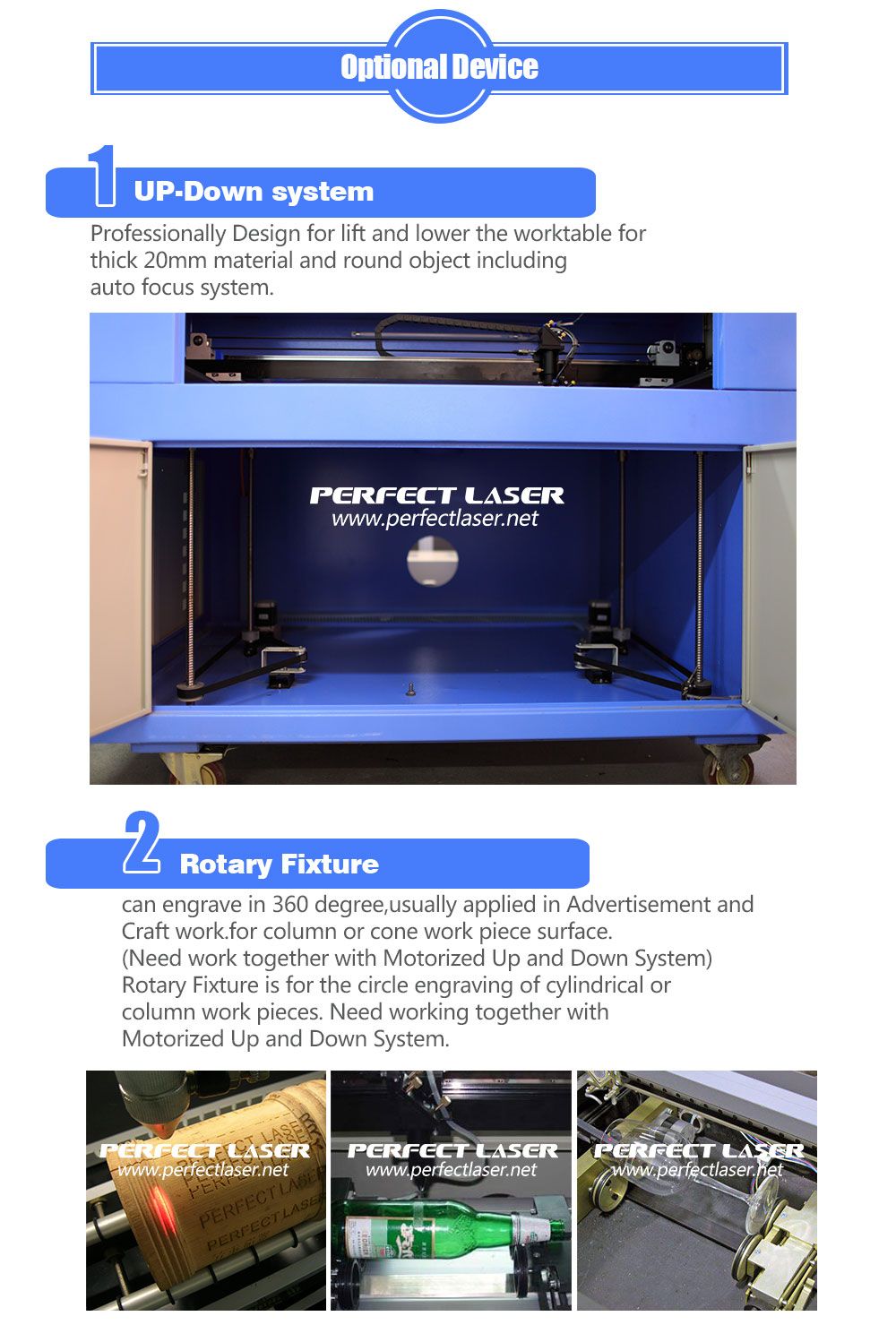

Features for 9060 Laser Cutter :1. Adopt "Rotary Fixture" and "Motorized up and down Table" to realize engraving circumrotately 360 degree along the circle of cylindrical or column work pieces.

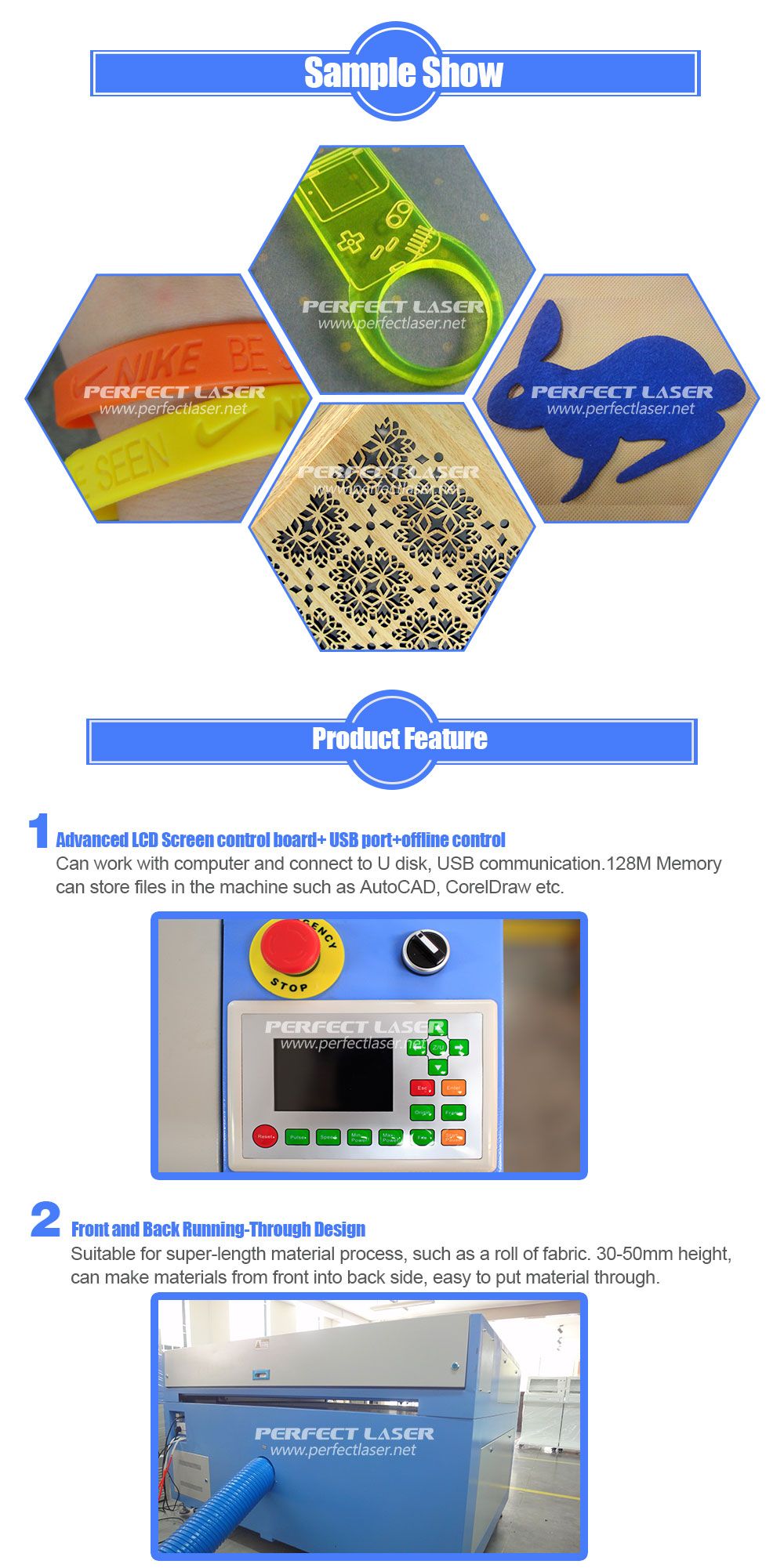

2. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
3. LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
4. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
5. Special Front and back running-through design, the unique door for the limitless engraved materials through.

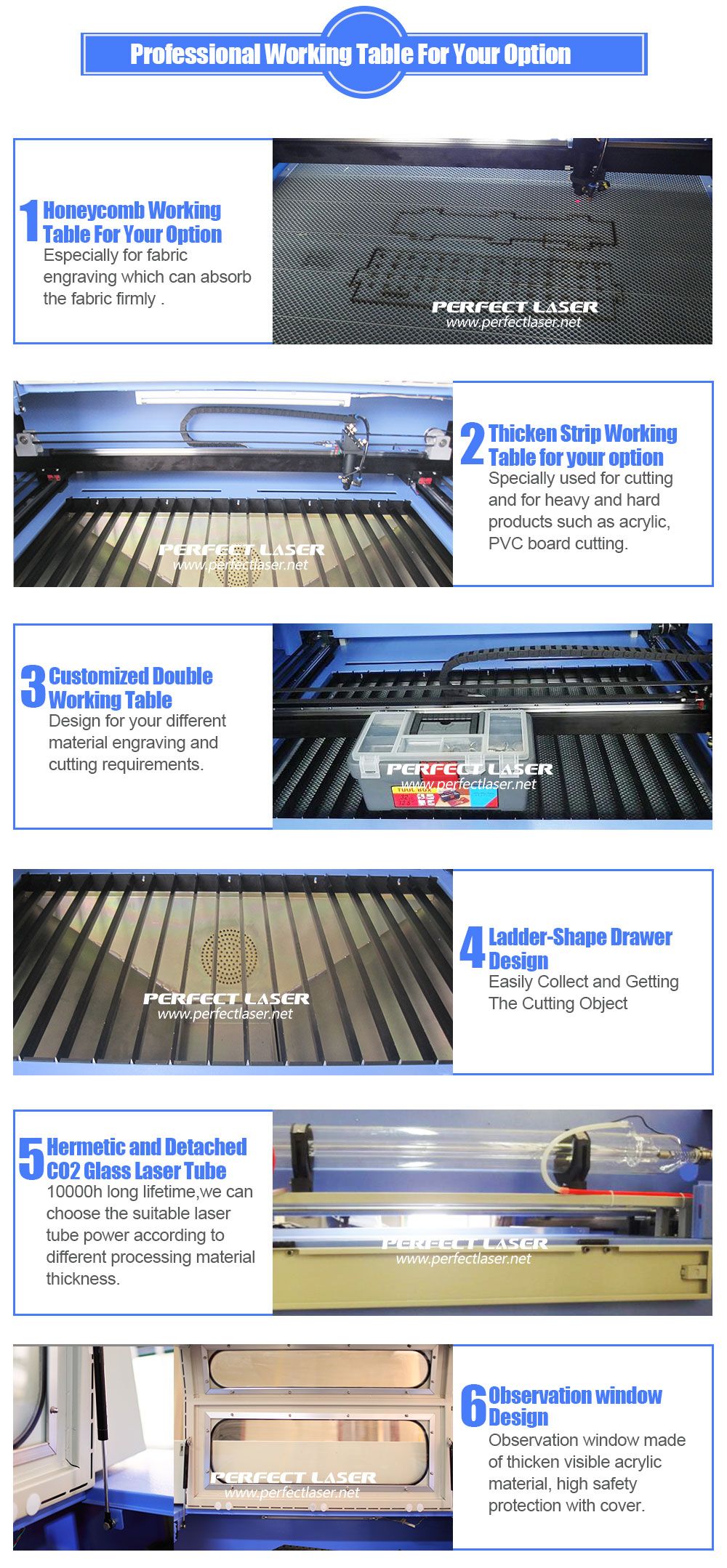

6. Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
7. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
8. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
9. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1× 1mm little English character perfect.
10. Red Light Pointer realizes the exact position without laser.
Application Fields for 9060 Laser Cutter:Available Materials:1. It's widely used in advertisement material, such as acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting, rubber plate engraving, seal engraving, organic glass engraving, plexiglass engraving, marble engraving, granite engraving, Gum engraving, EVA materials engraving, paper engraving and cutting.
2. Wood material: Wood engraving and cutting, MDF engraving, plywood cutting, bamboo engraving.
Application Industry:Advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.
Technical Data:| Model | PEDK-6040 | PEDK-9060 | PEDK-13090 |
| Working Area | 600×400mm | 900×600mm | 1300×900mm |
| Laser Power | 60W / 80W / 100W / 120W / 150W |
| Laser Type | Hermetic and Detached Co2 Laser Tube |
| Engraving Speed | 1-60000mm/min |
| Cutting Speed | 1-10000mm/min |
| Repeat Location Accuracy | ± 0.0125mm |
| Laser Power Controlling | 1-100% Manual Adjustment and Software Controlling |
| Voltage | 220V(±10%) 50Hz |
| Cooling Mode | Water Cooling and Protect System |
| Cutting Platform | Professional Thickening Strip or Honeycomb Work Table |
| Controlling Mode | CNC Professional Control System |
| Support Graphics Formats | BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT |
| Power Controlling Mode | Laser Energy Combining Movement Control System |
| Control Software | Original Perfect Laser Engraving & Cutting Software |
