| Prod Model: |
Dia. 0.89-6.58mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Iron |
| Raw Material: |
195#,235#Iron Wire Rod or According Request |
| Type: |
Common Nail |
| Shank: |
Smooth |
| Shank Dia.: |
0.89-6.58mm |
| Length: |
9.52-203.2mm |
| Finish: |
Galvanized/Hot Dipped/Colorful Plating/Red/Blue |
Product Description

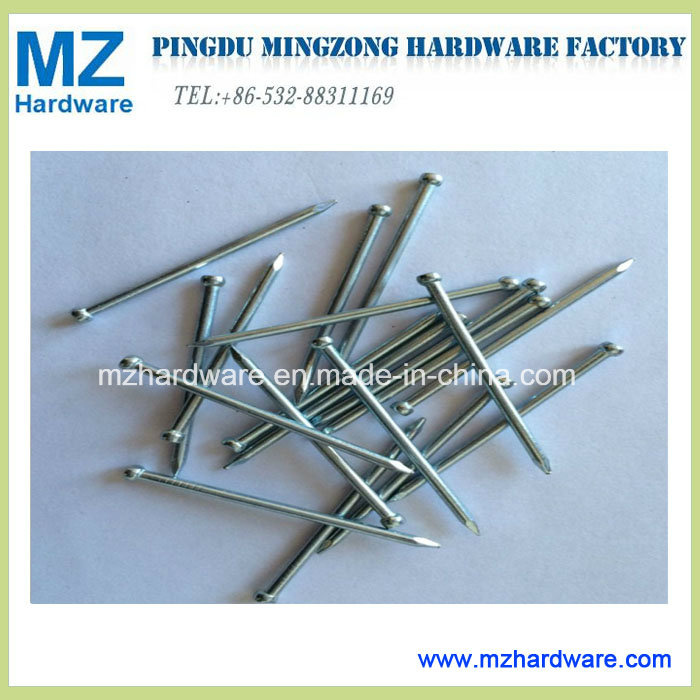

Common Iron Wire Nails Materials: Q195,Q235
Head: Flat head common nails
Shank: smooth shank
Point: diamond point
Shank Diameter: 4BWG~20BWG.
Length: 3/8"to 7" or according to your request.
Treatment: bright or galvanized finishes are available.

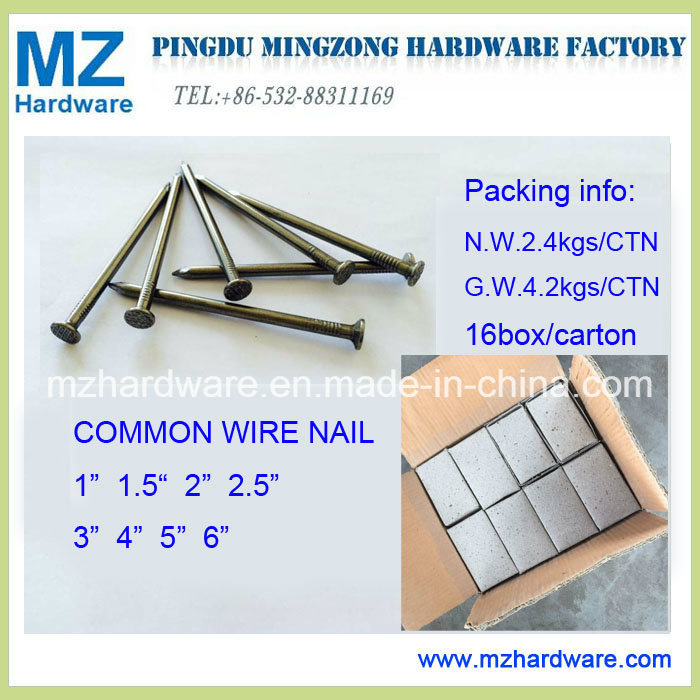

Standard Packing: 25Kgs/Bag,50Kgs/Gunny Bag or according to your request.
Application: Common nails are widely used for woodworking, carpentry and framing and construction industry.
| Length | Shank Diameter | Weight (kg)
/1000 Pcs | Approx.PCS
/1kg |
| Inch | mm | BWG | mm |
| 3/8 | 9.52 | 20 | 0.89 | 0.046 | 21730 |
| 1/2 | 12.70 | 19 | 1.07 | 0.088 | 11360 |
| 5/8 | 15.87 | 18 | 1.25 | 0.152 | 6580 |
| 3/4 | 19.05 | 17 | 1.47 | 0.52 | 4000 |
| 1 | 25.40 | 16 | 1.65 | 0.42 | 2980 |
| 1-1/4 | 31.75 | 15 | 1.83 | 0.65 | 1540 |
| 1-1/2 | 38.10 | 14 | 2.11 | 1.03 | 971 |
| 1-3/4 | 44.45 | 13 | 2.41 | 1.57 | 637 |
| 2 | 50.80 | 12 | 2.77 | 2.37 | 422 |
| 2-1/2 | 63.50 | 11 | 3.05 | 3.58 | 279 |
| 3 | 76.20 | 10 | 3.40 | 5.35 | 187 |
| 3-1/2 | 88.90 | 9 | 3.76 | 7.65 | 131 |
| 4 | 101.66 | 8 | 4.19 | 10.82 | 92.4 |
| 4-1/2 | 114.30 | 7 | 4.57 | 14.49 | 69.0 |
| 5 | 127.00 | 6 | 5.16 | 20.53 | 48.7 |
| 6 | 152.40 | 5 | 5.59 | 28.93 | 34.5 |
| 7 | 177.80 | 4 | 6.05 | 40.32 | 24.8 |
Finish Nails:Penny
Size | Length (inch) | Gauge No. | Head Dia.(inch) | Approx.PCS/LB |
| 2d | 1 | 16-1/2 | 0.086 | 1.473 |
| 3d | 1-1/4 | 15-1/2 | 0.099 | 880 |
| 4d | 1-1/2 | 15 | 0.1055 | 630 |
| 5d | 1-3/4 | 15 | 0.1055 | 535 |
| 6d | 2 | 13 | 0.135 | 288 |
| 7d | 2-1/4 | 13 | 0.135 | 254 |
| 8d | 2-1/2 | 12-1/2 | 0.142 | 196 |
| 9d | 2-3/4 | 12-1/2 | 0.142 | 178 |
| 10d | 3 | 11-1/2 | 0.155 | 124 |
| 12d | 3-1/4 | 11-1/2 | 0.155 | 113 |
| 16d | 3-1/2 | 11 | 0.162 | 93 |
| 20d | 4 | 10 | 0.177 | 65 |
| 30d | 4-1/2 | 9 | - | - |
| 40d | 5 | 8 | - |
|
Panel Pin:| Diam | BWG | 20G | 19G | 18G | 17G | 16G | 15G | 14G | 13G | 12G | 8G | 7G | 6G | 5G | 4G |
| mm | 0.89 | 1.07 | 1.25 | 1.47 | 1.65 | 1.83 | 2.11 | 2.41 | 2.77 | 4.19 | 4.57 | 5.16 | 5.59 | 6.05 |
| Length | Inch | 0.375" | 0.5" | 0.625" | 0.75" | 1" | 1.25" | 1.5" | 1.75" | 2" | 4" | 4.5" | 5" | 6" | 7" |
| mm | 9.52 | 12.7 | 15.87 | 19.05 | 25.4 | 31.75 | 38.1 | 44.45 | 50.8 | 101.6 | 114.3 | 127 | 152.4 | 177.8 |
| Finish | Polished/Galvanized/Hot dipped |
WHY CHOOSE US?
1) We have our own factory, quality can be controlled seriously.
2) We Specialize in manufacturing many years.
3) We have professional testing department and testing equipments.
4) Timely delivery and excellent service.
PINGDU MINGZONG HARDWARE FACTORY was founded in 2012 in Qingdao, China. Our factory covers an area of over 10, 000 square meters and employed nearly 50 people with annual productivity more than 10, 000 tons.
PINGDU MINGZONG HARDWARE FACTORY provides fastener products and services worldwide. Our company's manufacturing specialize in all kinds of nails and iron wires that including Common nails, Concrete nails, Clout nails, Finishing nails, Horseshoe nails, Shoe tacks, Panel Pins, Roofing nails, Roofing Twisted nails, U type nails, Annealed wires, Galvanzied wires, Barbed wires and Razor wires.
By providing quality parts with competitive pricing and consistent excellent services, we have earned our customers' trust developing strong partnerships.
Our advantage:
High quality
Competitive price
Fast delivery
Best service.
To learn more about how we can meet your needs most anywhere in the world, Please feel free to contact us.
