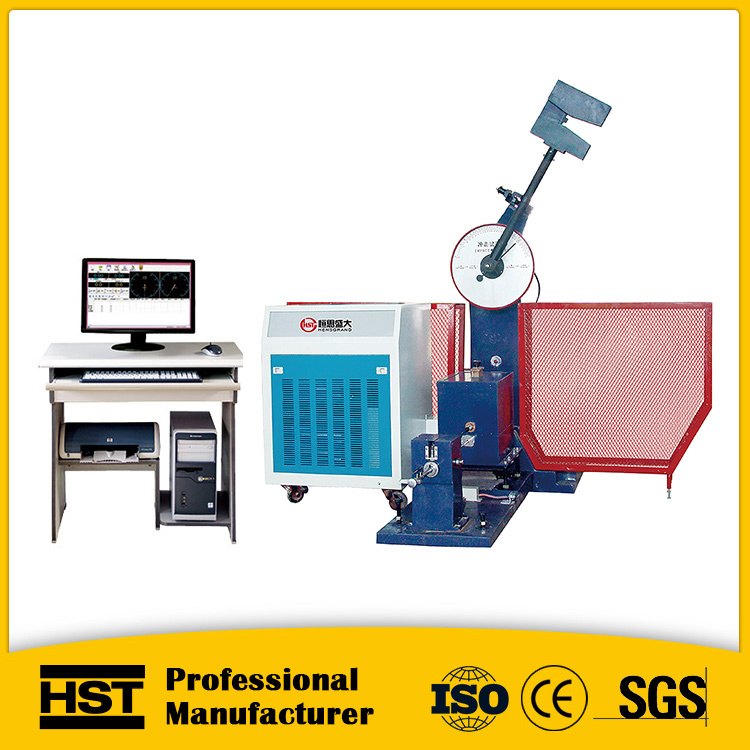

Computer Control Pendulum Impact Testing Machine for Metal Material (Jbw-C)

Prod Model:	JBW-300C
Delivery Time:	3 Days After Get Payment
Certification:	Ce ISO
Type:	Impact Testing Machine
Weight:	100-500Kg
Power Source:	AC220V

Product Description

Computer Control Pendulum Impact Testing Machine for metal material (Jbw-C)


1. Application
JBW-C type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.It's a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas, but also used for the science research.
2. Description
The type uses PC computer control, it can achieve Yang pendulum→impact→measure→operation→digital display→print etc computerized operations,high efficiency, high precision. Especially for continuous impact test lab and do a lot of impact test metallurgy, machinery manufacturing and other industries. The computer can calculate and display material impact absorbed energy, the pendulum Yang angle and test averages. It can achieve remote data transmission according to user needs.
3. Features
3.1 Main frame is dual prop, shaft simply supported beam supporting, hanging pendulum, a reasonable distribution of radial load bearing host stiffness, particularly suitable for large energy impact test.
3.2 Standard dual-stage reducer mention hammer, smooth operation.
3.3 Hanging pendulum device uses a hydraulic cushion, hanging pendulum steady
3.4 Pendulum 3D design, to ensure the combat center accurate, precise moment the pendulum.
3.5 Shock knife with screw mounting, easy replacement.
3.6 Main frame is equipped with safety pins, and is equipped with a fully enclosed safety net.
4. Main Technical Specifications

Model	JBW-300C	JBW-450C	JBW-600C		JBW-750C
Control Method	Computer Control
Max. impact energy	300J	450J	600J		750J
Impact speed	5.24m/s
Pre-rising angle of the pendulum	150°
Angle accuracy	±0.1°
Specimen bearer span	40mm
Round angle of the jaw	R1.0~1.5mm
Round angle of impact edge	R2.0~2.5mm(R8mm)
Thickness of impact knife	16mm
The distance between the pendulum shaft and impact  point	750mm
Standard specimen dimension	10×10(7.55)×55mm
Pendulum	300J 1pc	450J 1pc		600J 1pc		750J 1pc
Power supply	Three-phase four-wire system 50Hz /380V

5. Standard Accessories

Main unit----------1 setOperating Instrument holder-----1setPendulum-----1 pcReducer-----1setTake place transmission device-----1set

Automatic hanging pendulum device-----1set

Insurance agencies-----1setInternal hexagonal wrench S=12-----1pcBearing correctors-----1pcSample plummet-----1pcGround screw-----4pcImpact testing security guards----1 setMeasurement and Control System-----1setLenovo computer,HP Printer---1 setDedicated control software tester-----1setAdjustment wedges-----4pcs

6. Measurement and Control section
6.1 Record impact strength,  impact energy etc. Also calculate the average of the maximum and minimum.
6.2  The test data can be processed automatic, Automatic measure the cycle swing.
6.3  It has perfect Data analysis, Suitable for all types of complex data analysis to the user.
6.4  It has Complete operating system file, test report, test file etc.
6.5  The data can be stored as ASC, also can be reprocessed by any business report, word processing software.
6.6  The software support Multiple pendulum.
6.7  The test data can be statistic analysis automatic after test.
6.8  The report editing is flexible, Software offers a variety of report printing interface. (Excel, Word)
6.9  Interface display and control system.
