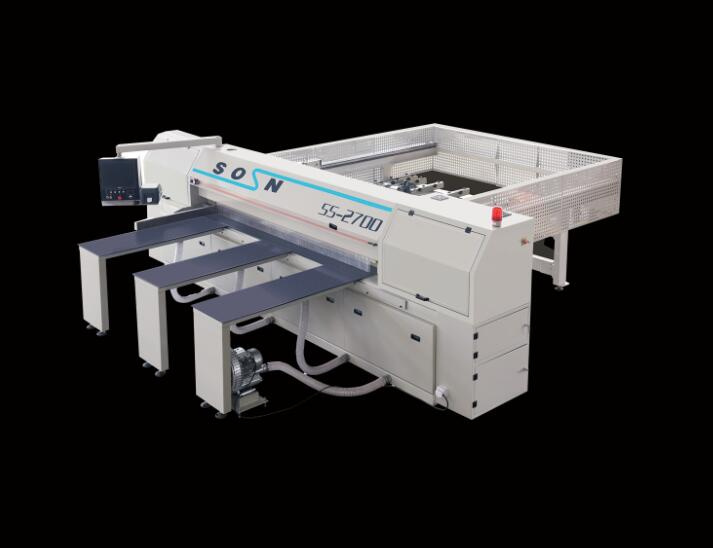

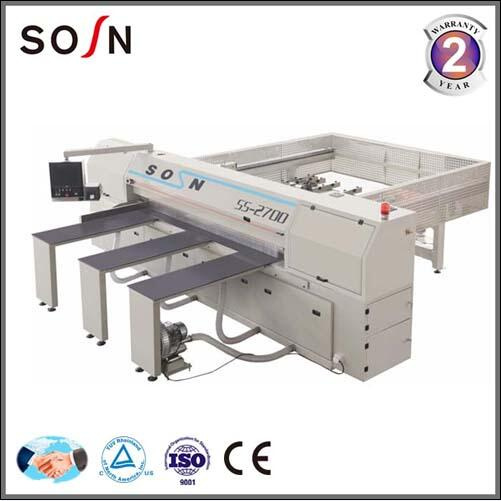

Computer Control Wood Cutting Machine Sosn-2700 Computer Beam Saw

Computer Control Wood Cutting Machine Sosn-2700 Computer Beam Saw
Price: US $ 30000-50000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: SS-2700
Max. Cutting Length: 2700mm
Max. Cutting Width (Depth): 2700mm
Max. Cutting Height: 100mm
Max. Gripper Opening: 105 mm
Max. Sawblade Projection: 105 mm
Main Sawblade Motor: 15HP (11.2kw)
Main Sawblade Diameter: 405 mm
Scoring Sawblade Speed: 6, 800 r.p.m.
Saw Carriage Drive Motor: 2HP (1.5kw)(Inverter)
Forward Speed(Adjustable): 0~45 M/Min
Type: Table Panel Saw
Layout: Horizontal
Controlling Mode: CNC
Automatic Grade: Semiautomatic
Precision: High Precision
Certification: ISO

Product Description



Parameters
MODELSS-2700
CAPACITYMax. cutting length2700 mm
Max. cutting width (depth)2700 mm
Max. cutting height100 mm
Max. gripper opening105 mm
Max. sawblade projection105 mm
MAIN SAWBLADEMain sawblade motor15HP (11.2KW)
Main sawblade diameterØ405 mm
Spindle diameterØ 1"or Ø30mm
Main sawblade speed4,800 R.P.M.
SCORING SAWBLADEScoring sawblade diameterØ176 mm
Spindle diameterØ 1"or Ø30mm
Scoring sawblade speed6,800 R.P.M.
SAW CARRIAGESaw carriage drive motor2HP (1.5KW)(Inverter)
Forward Speed(adjustable)0~45 M/min
Return Speed70 M/min
PUSHERPusher system drive motor1KW
Pusher system pull speed5~70 M/min
Pusher system push speed5~60 M/min
OTHERSHigh pressure blower motor3HP (2.2KW)
Side aligner motor 90W
Working air pressure5~6 kg/cm2
Table height from floor880 mm
Grippers9 units
Floating table3 units
Voltage220V380V415V440V575V
Hertz50HZ/60HZ
 Net weight4700kg
Gross weight5300Kg



Should you have any need of the machine , please feel free to contact with me

Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.

SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.

We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.

SOSN main product,

CNC Router

Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)

Edge banding machine: Manual, semi-automatic, full automatic

Boring/Drilling machine

Belt sanding machine

Dust collectors

Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc

For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.

High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!

You are warmly welcome to join us in this business line to have a Win-win situation!
