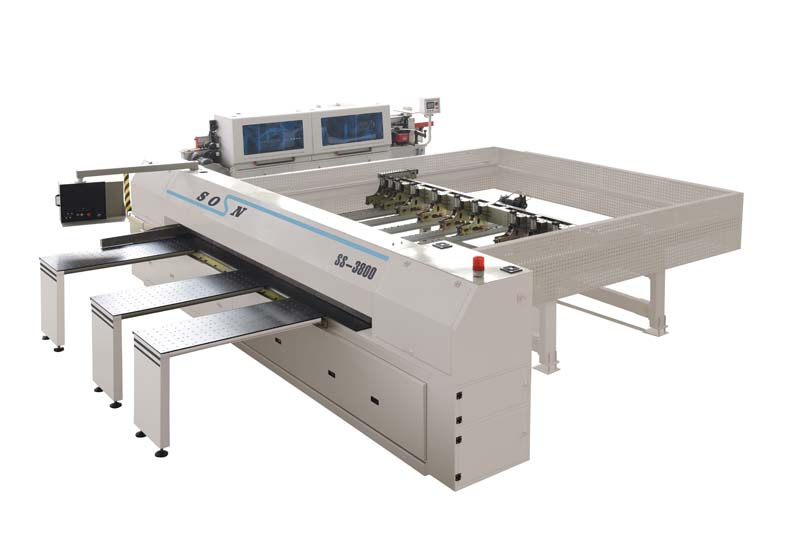

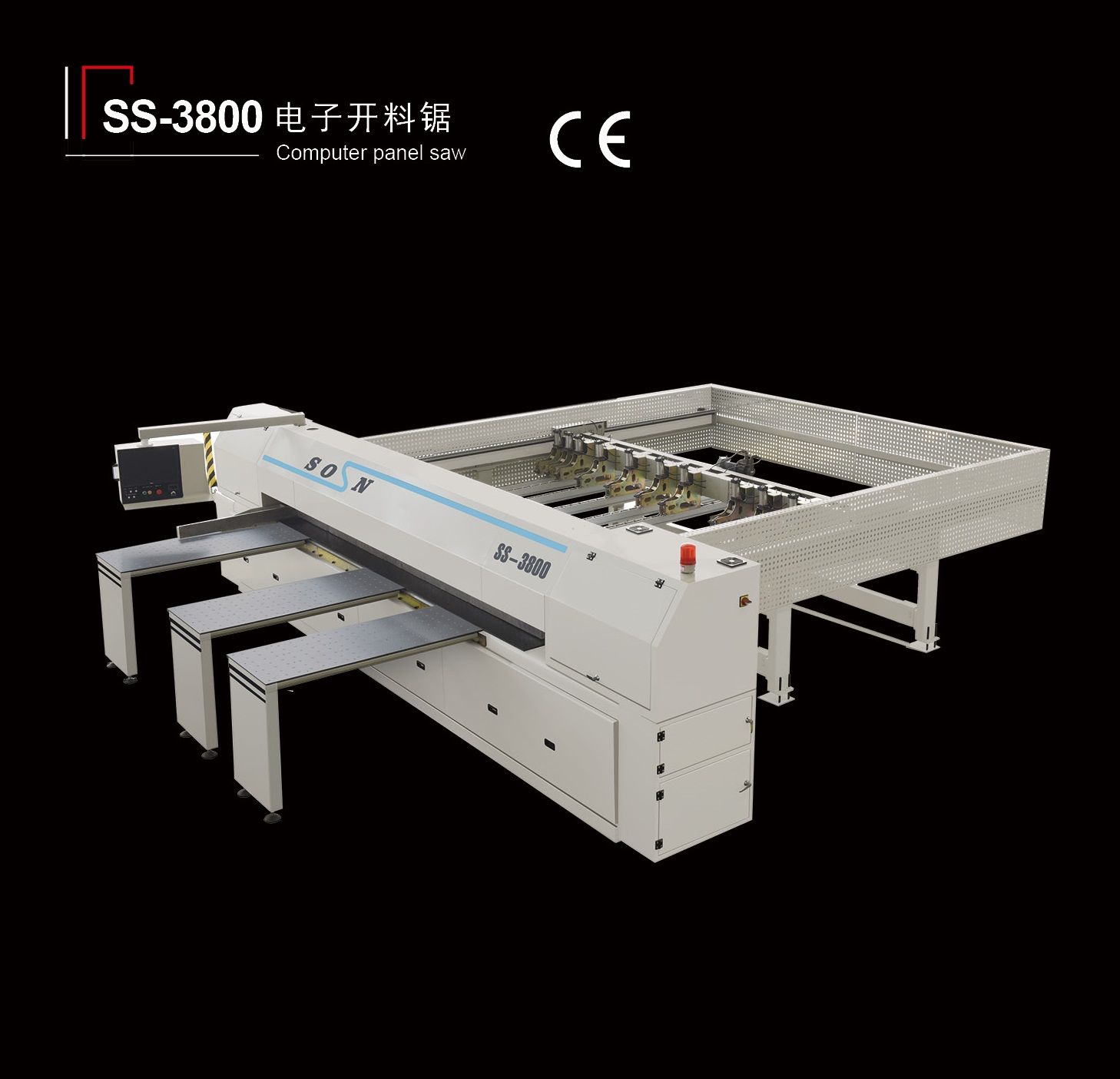

Computer Panel Saw for Woodworking/Furnitures Making (SS-3800)
| Price: |
US $ 2000-5000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
SS-3800 |
| Diameter Of Main Saw Blade: |
350mm |
| Scoring Saw Blade Diameter: |
176mm |
| Gross Cut Capacity: |
3800mm |
| Main Saw Blade Motor: |
17HP/13kw |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description
Panel saw is suitable for cutting different material plates, such as perspex sheet, plywood, ABS board, PVC board,solid wood, aluminum alloy and other materials in the vertical and horizontal cutting incision.
Details:
1.Japan imported Servo system
2.Automatic material return system
3.Air-bearing motor
4.Industrial control system
5.Cutting spindle systemParameters| MODEL | SS-2700 |
| CAPACITY | Max. cutting length | 3800 mm |
| Max. cutting width (depth) | 3200/3800 mm |
| Max. cutting height | 80 mm |
| Max. gripper | 100 mm |
| Max. sawblade projection | 100 mm |
| MAIN SAWBLADE | Main saw blade motor | 17HP (13KW) |
| Main saw blade diameter | Ø350 mm |
| Spindle diameter | Ø 1"or Ø30mm |
| Main sawblade speed | 4,800 R.P.M. |
| SCORING SAWBLADE | Scoring sawblade diameter | Ø176 mm |
| Spindle diameter | Ø 1"or Ø30mm |
| Scoring sawblade speed | 6,800 R.P.M. |
| SAW CARRIAGE | Saw carriage drive motor | 3HP (1.5KW)(Inverter) |
| Forward Speed(adjustable) | 0~45 M/min |
| Return Speed | 70 M/min |
| PUSHER | Pusher system drive motor | 1KW |
| Pusher system pull speed | 5~70 M/min |
| Pusher system push speed | 5~60 M/min |
| OTHERS | High pressure blower motor | 5HP (2.2KW) |
| Side aligner motor | 90W |
| Working air pressure | 5~6 kg/cm2 |
| Table height from floor | 880 mm |
| Grippers | 9 units |
| Floating table | 3 units |
| Voltage | 220V | 380V | 415V | 440V | 575V |
| Hertz | 50HZ/60HZ |
| | Net weight | 5000kg |
| Gross weight | 5600Kg |
I am ready to serve you all the time!
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
