| Prod Model: |
BL-BL-J1A/2A/3A/4A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Swing Dia. Over Bed: |
305mm |
| Max. Swing Dia. Over Cross Slide: |
173mm |
| Max. Swing Dia. Over Gap: |
440mm |
| Guideway Width: |
182mm |
| Center Distance: |
530mm |
| Spindle Bore: |
38mm |
| Main Motor Power: |
1.1kw |
| Coolant Pump Power: |
0.04kw |
| Net/Gross Weight: |
430/380kg |
| Spindle Speed Class: |
9 Class |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Processing Accessory: |
Chuck |
| Tool Holder: |
One |
Product Description

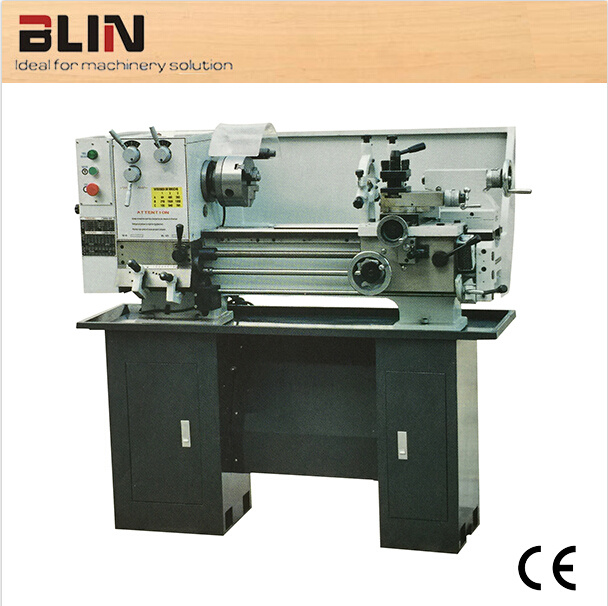

Gap Bed Lathe (BL-BL-J1A/2A/3A/4A)
Feature:
| High class cast iron |
| V shape guideway, ultrasonic harden and precise ground |
| Gap bed |
| Cross and longitudinal interlocking feed, with enough safety |
| Inching switch for test running |
| Metric/Imperial threading available |
| Precise gear-driven headstock |
| Norton Lever or Closed Box can be choosen |
Standard Accessories:
Tool post wrench
Double-head wrench
Allen wrench
Screwer
Dead Center
Center sleeve
Change gears
Oil gun
Tool box
Steady rest(Install on machine)
Follow rest(Install on machine)
Manual 3-jaw chuck(Install on machine)
steel board stand
4-jaw chuck
Optional Accessories:
Drilling Chuck
Arbor
Driling Stock
Live Center
Face Plate
Working Lamp(common)
Coolant System
Foot Brake
Ball screw guard
Work lamp(aluminium cover)
Taper turning Attachment
4-jaw chuck adapter
Tool post guard
Chuck guard
Back Splash guard
2 axes DRO
2 speed motor system
Fast change tool post
Two speed motor
Without 4-jaw chuck
Without steel board stand
| Item | Unit | BL-BL-J1A | BL-BL-J2A | BL-BL-J3A | BL-BL-J4A |
| Max. swing dia. over bed | mm | Φ305 | Φ330 |
| Max. swing dia. over slide | mm | Φ173 | Φ173 | Φ195 | Φ215 |
| Max. swing dia. over gap | mm | Φ440 | Φ440 | Φ465 | Φ485 |
| Guideway width | mm | 182 |
| Center distance | mm | 530 | 940 | 530 | 940 |
| Spindle taper | / | MT5# |
| Spindle bore | mm | Φ38 |
| Spindle speed class | / | 9 calss |
| Spindle speed range | rpm | 64~1500 |
| Metric thread | mm | Closed box:11kinds (0.5~3.5mm);Norton lever:15kinds (0.25~7.5mm) |
| Inch thread | TPI | Closed box:14kinds(7-1/2~48TPI);Norton lever: 40kinds(4~112TPI) |
| Feed range | mm/r | Closed box:0.051~0.303mm/r(0.002''~0.012'');Norton lever: 0.12~0.42mm(0.0047''~0.0165'') |
| Lead screw O.D. | mm | Φ22mm(7/8'') |
| Lead screw pitch | mm | 3mm or 8TPI |
| Max. travel of saddle | mm | 510 | 850 | 510 | 850 |
| Max. travel of cross | mm | 150 |
| Max. travel of tool post | mm | 85 |
| Tailstock quill travel | mm | 95 |
| Tailstock quill dia. | mm | Φ32 |
| Tailstock quill | / | MT3# |
| Spindle motor power | kw | 1.1(1.5HP) |
| Coolant pump power | kw | 0.04(0.055HP) |
| Packing size of main machine | mm | 1420×750×760 | 1780×750×760 | 1420×750×760 | 1780×750×760 |
| Packing size of Left foot stand | mm | 400×370×700 |
| Packing size of right foot stand | mm | 300×370×700 |
| Main machine G.W./N.W. | kg | 430/380 | 450/400 | 430/380 | 450/400 |
| Foot stand G.W./N.W. | kg | 60/65 | 60/65 | 60/65 | 60/65 |
| Loading amount(20GP container) | pcs | 27 | 24 | 27 | 24 |
