| Prod Model: |
BJJ-1200×830 |
| Certification: |
ISO |
| Temperature Regulating Range (ºC): |
0-200 |
| Timing Adjustment Range: |
0-99min |
| Voltage: |
380V |
| Work Press: |
0---1.8MPa |
| Power: |
15.5kw |
| Type: |
Zlj Series Combined Type Conveyor Belts Joint Vulc |
Product Description

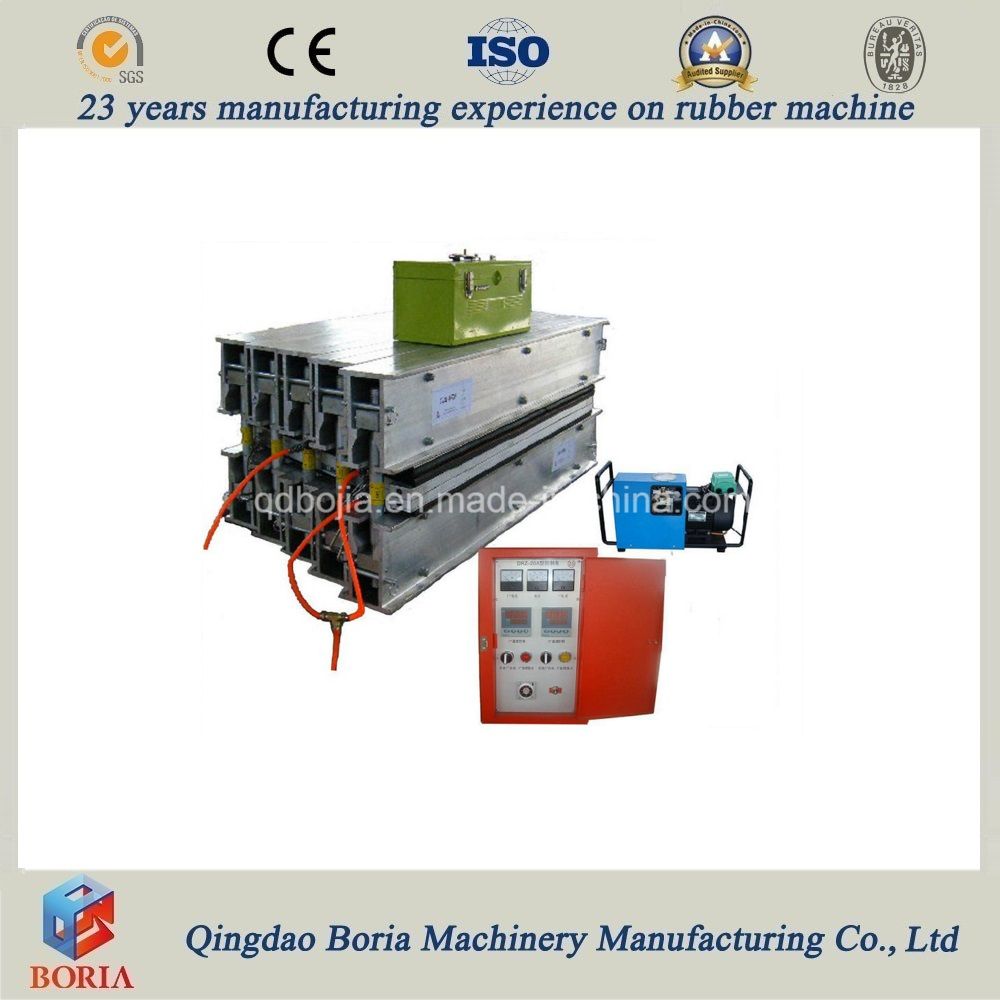

Conveyor Belts Joint Vulcanizing Machine, Conveyor Belts Amending Machine (ZLJ-1200*830)
1,Technical parameter
| NO | Name | A=1200mm | Notes |
| 1 | Tape joint vulcanizing machine | 1 set | |
| 2 | Type
| BJJ-1200×830 | |
| 3 | Sulfide tape width | 1200 | |
| 4 | Vulcanizing machine work press (Mpa) | 1.0-3.0 Mpa(adjustable) | |
| 5 | Vulcanizing temperature | 145ºC | |
| 6 | Surface temperature difference (ºC) | ±2ºC | |
| 7 | Heating up time(Normal atmospheric temperature 145ºC) | ≤15min | |
| 8 | Temperature regulating range (ºC) | 0-200ºC | |
| 9 | Timing adjustment range | 0-99min | |
| 10 | Sulfide board size | 1420*830mm | |
| 11 | weight | 850kg | |
| 12 | Voltage | 380V | |
| 13 | Work press | 0---1.8mpa | |
| 14 | Power | 15.5kw | |

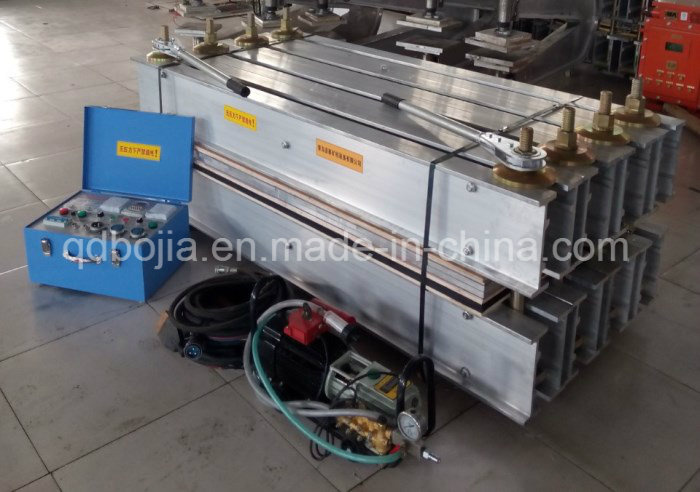

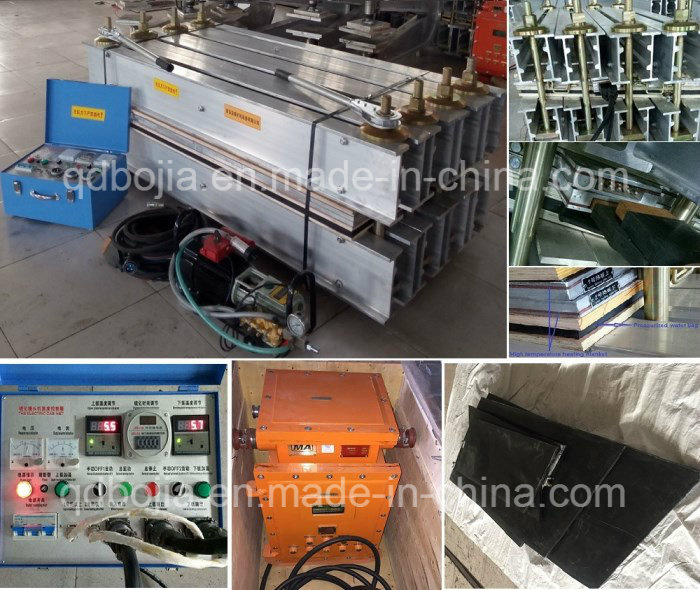

2,Random accessories:
1,Top and bottom heating plate:2 pcs(1420×830mm)(tickness25mm);
2,Pressure water bag: 1set(1420×830mm);
3,press plate: 1set(1420×830mm);
4,Heat insulation board: 2set(1420×830mm);
5,Pressurized beam: 8 group;
6,The large bar: 8 set;
7,Control box: 1set(All using CHINT electric);
8,Input line: 1set(Combined air plugP40);
9,Output line: 2set(Combined air plugP40);
10,Sensors: 2set(Internal burial)
11,Electric pressure pump:1set;
12,High pressure water pipe:1 root;
13,Ratchet wrench:2 bundle.
3,Technical description:
1,Qingdao Bojia Machinery Manufacturing Co. production of curing machine, heating plate and pressure beam all with high strength aluminum alloy production.
2,Heating system is the latest research and development of new products - "Bojia" card vulcanizing machine heating blanket, vulcanizing machine heating blanket is a domestic initiative, hot plate heating fast, uniform temperature, the quality of Canada's technical level, because the blanket is sealed, Will not be caused by damp and leakage phenomenon, effectively avoiding the risk of personal electrical shock and other problems.
3,Pressure device is our newly developed high-tech products "was" brand pressure vulcanizing machine bag at the leading level in the same industry, it has the advantages of light weight, uniform pressure, high pressure under repeated use without pressure relief, Water Leakage phenomenon.
4,Bo Jia" brand vulcanizing machine control box,The components using Chint and SIEMENS appliances, from heating to cooling insulation, all automatic control.
If you interested in our products mentioned above, kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
Our Services
Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
In the process of production, we will take photos and send to customers for their track the progress.
Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
We supply overseas engineer service and help to train your workers to operate the machine.
