Prod Model: |
1-20mm |
Use: |
Metal Drilling, Masonry Drilling |
Delivery Time: |
5 ~ 15 Days |
Overall Length: |
50-100mm |
Hole: |
Have or No |
Drill Direction: |
Right and Left |
Hardness: |
HRC45/55/60/65 |
Grade: |
Yg6,Yg8, Yg10, etc. |
Pressure: |
0.5-0.7MPa |
Coating: |
Altin, Tiain |
Diameter: |
1-20mm |
Product Description
Product Description:
1. Raw micro grain material, high hardness and T.R.S
a, Co: 10%,Wc:90%
b, TRS: >3600 N/mm2
c, HRA: 91.8-92.4, HRC:45-50/55-60/65/68
d, Grain size: 0.4-0.6μm
e, Helix angle: 30°-45 °
Diameter of cutting edge: 0.2-0.9mm; 1-20mm
Diameter of rods: 6-25mm
Total Length: 62mm-200mm
Cutting Form: Flat,Square,Ball nose, Ball, Corner Radius, Taper Flute, etc.
2. Application and usage
Suitable to cut Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Stainless steel, Plastic, Arcylic, etc.
3. Super coating

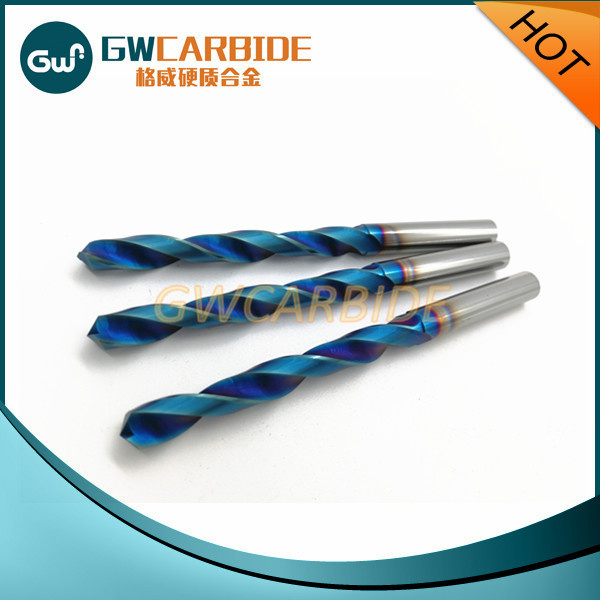

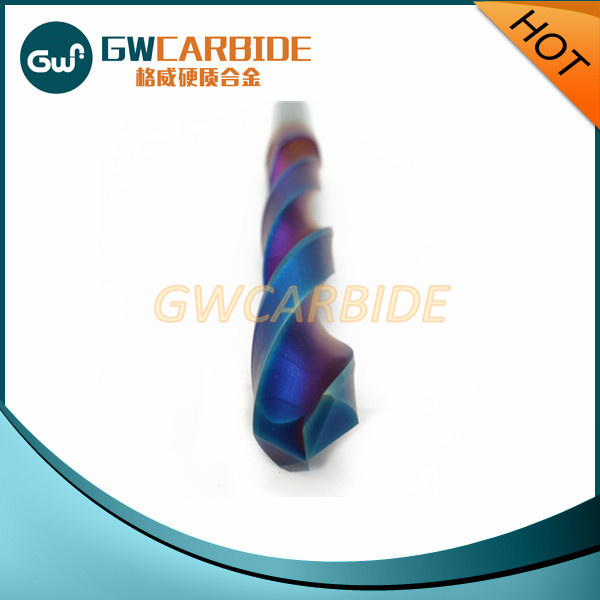

TiSiN TiAlN AlTiN TiCN or Blue Nano Coating
Item | AlTiN | TiAiN | TiSiN | nAcO |
Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
Oxidation Temp( ° ) | 900 | 800 | 1000 | 1200 |
Friction | 0.3 | 0.3 | 0.45 | 0.4 |
Color | Black | Violet | Copper | Blue |
| Flute dia (d) | Cutting length ( l ) | Shank dia (D) | Overall length(L) |
1.0×3×4D×50L | 1.0 | 3 | 4 | 50 |
1.5×4×4D×50L | 1.5 | 4 | 4 | 50 |
2.0×6×4D×50L | 2.0 | 6 | 4 | 50 |
2.5×7×4D×50L | 2.5 | 7 | 4 | 50 |
3.0×8×4D×50L | 3.0 | 8 | 4 | 50 |
3.5×10×4D×50L | 3.5 | 10 | 4 | 50 |
4.0×11×4D×50L | 4 | 11 | 4 | 50 |
4.5×13×6D×50L | 4.5 | 13 | 6 | 50 |
5.0×13×6D×50L | 5.0 | 13 | 6 | 50 |
5.5×13×6D×50L | 5.5 | 13 | 6 | 50 |
6.0×15×6D×50L | 6.0 | 15 | 6 | 50 |
6.5×15×8D×60L | 6.5 | 15 | 8 | 60 |
7.0×17×8D×60L | 7.0 | 17 | 8 | 60 |
7.5×17×8D×60L | 7.5 | 17 | 8 | 60 |
8.0×20×8D×60L | 8.0 | 20 | 8 | 60 |
8.5×23×10D×75L | 8.5 | 23 | 10 | 75 |
9.0×23×10D×75L | 9.0 | 23 | 10 | 75 |
9.5×25×10D×75L | 9.5 | 25 | 10 | 75 |
10.0×25×12D×75L | 10.0 | 25 | 12 | 75 |
10.5×28×12D×75L | 10.5 | 28 | 12 | 75 |
11.0×28×12D×75L | 11.0 | 28 | 12 | 75 |
11.5×28×12D×75L | 11.5 | 28 | 12 | 75 |
12.0×30×12D×75L | 12.0 | 30 | 12 | 75 |
13.0×33×16D×100L | 13.0 | 33 | 16 | 100 |
14.0×35×16D×100L | 14.0 | 35 | 16 | 100 |
15.0×38×16D×100L | 15.0 | 38 | 16 | 100 |
16.0×40×16D×100L | 16.0 | 40 | 16 | 100 |
17.0×40×20D×100L | 17.0 | 40 | 20 | 100 |
18.0×40×20D×100L | 18.0 | 40 | 20 | 100 |
19.0×40×20D×100L | 19.0 | 40 | 20 | 100 |
20.0×40×20D×100L | 20.0 | 40 | 20 | 100 |
25.0×40×25D×100L | 25.0 | 40 | 25 | 100 |
