a, C, E, F, G, H Tungsten Carbide Rotary Burrs

Name: a, C, E, F, G, H Tungsten Carbide Rotary Burrs
Brand: tool-buy.com
SKU: 797161955
Availability: InStock
Rating: 4.9 (112 reviews)

Price:	US $ 1.5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd.

Showroom Product Company Profile

Prod Model:	Type A, C, D, E, F, G, H, J, K, L, M, N, S, T
Cutting Type:	Medium Cut, Fine Cut, Double Cut, Aluminum Cut
Type Of Cutting:	Medium Cut, Fine Cut, Double Cut, Aluminum Cut
Flute Type:	Coarse, Fine, Double, Chip Breaker
Work Piece:	Steel, Aluminium, Light Alloy, Brass, Copper, Zinc
Model No:	A0312, B0312, C0312, D0302, E0306, F0313, G0310
Quality:	High Quality, Customized Available
Types:	a, C, D, E, F, G, H, J, K, L, M, N, S, T
Delivery Time:	Keep Stock for Regular Types
Handle Material:	Steel
Brand:	Gw
Type:	Carbide Burrs
Material:	Carbide
Processing Methods:	Milling File
Tooth Pattern:	Bidentate Pattern
Section Shape:	Square

Product Description

1. Introduction of carbide burrs

Carbide Rotary Files/Tungsten Carbide Burrs is a new tape milling cutter with high efficiency, instead of grinding wheel bur with handle. It can cut and process various kinds of metal(including hardened steel)and nonmetal(such as marble)with hardness up to HRC less then 70.

2. Details of carbide burrs

Product Name	Tungsten Carbide Rotary Burrs
Material	Carbide
Tooth Types	Single Cut/Double Cut
Sizes	Shank dia:3mm,4mm,6mm;blade dia/blade length/overall length: standard/as request

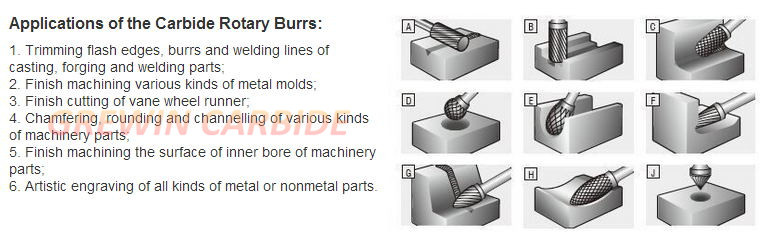

Applications	Using Carbide Rotary Burrs is a effective way to realize mechanization in hand works operations. In the industries of airplane, ship building automobile, machinery, chemistry etc. Carbide Rotary Burrs can be widely used in machining iron, steel casting, carbon steel, alloy steel, stainless steel, hardened steel, copper, Aluminium etc.
Advantage	high productivity, good processing quality, high finish, can be used to process a variety of high economic efficiency.

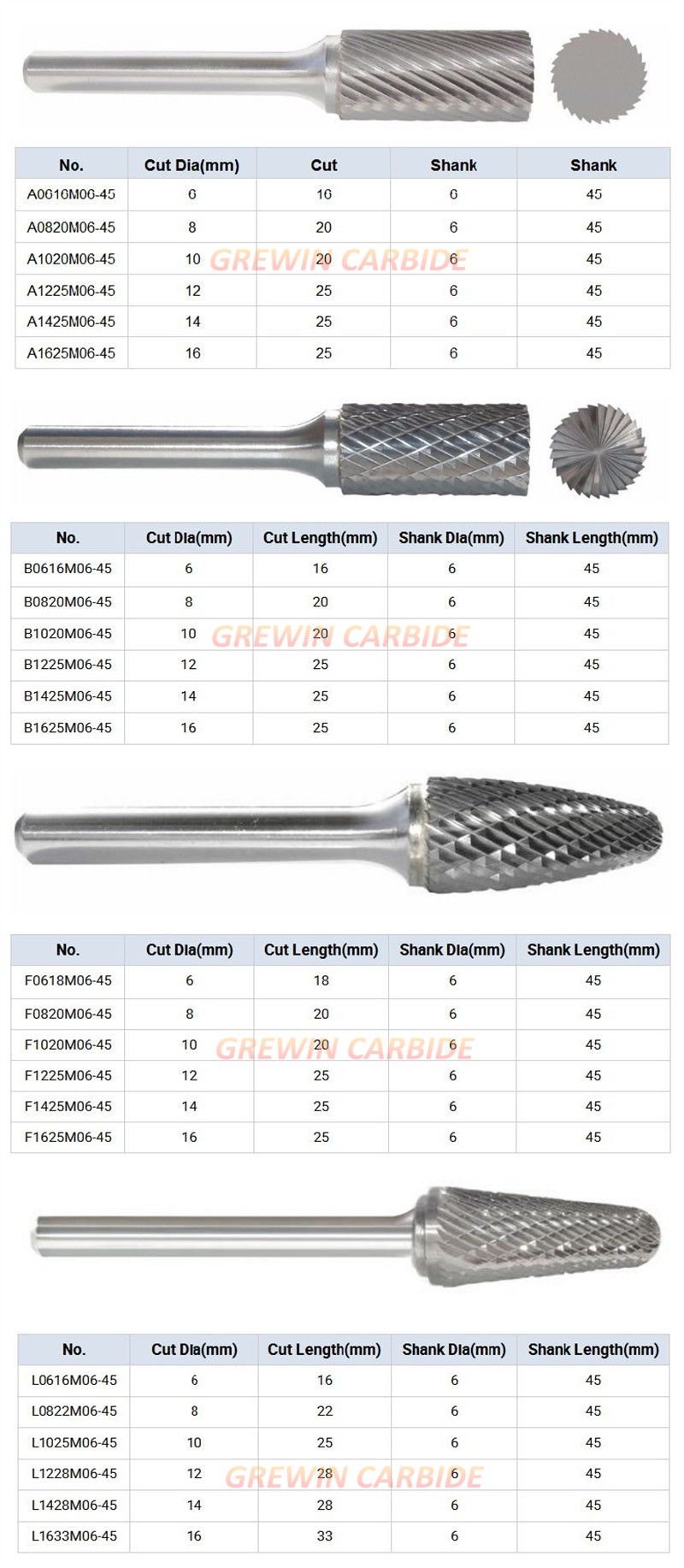

3. Shapes of for carbide burrs

Shapes of carbide burrs

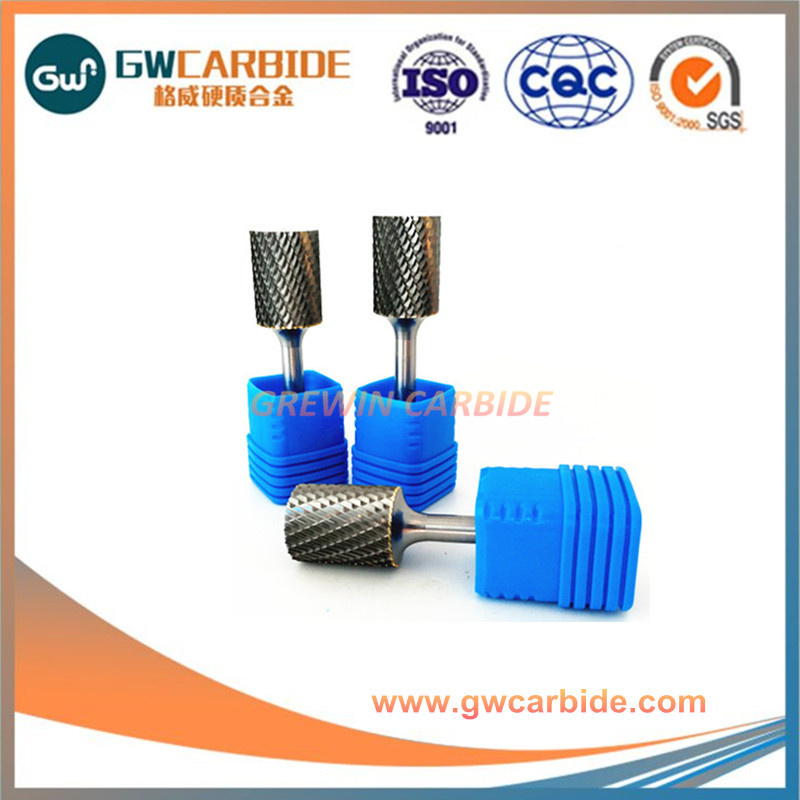

1.Cylindrical (Plain End)-Shape A;
2.Cylindrical (End Cut)_Shape B;
3.Cylindrical (Radius End)-Shape C;

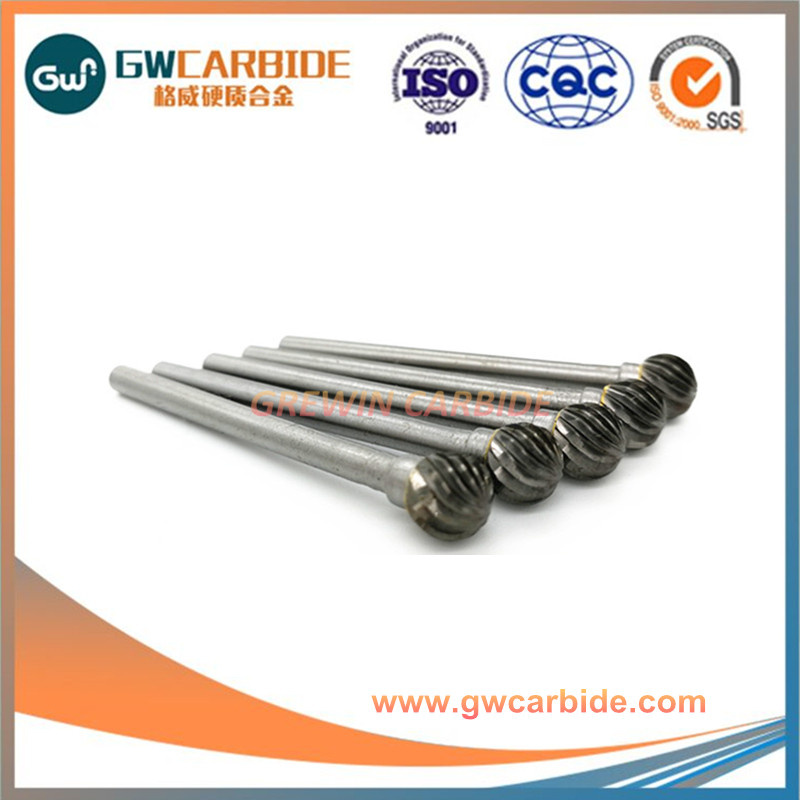

4.Ball-Shape D;
5.Oval-Shape E;
6.Tree (Radius End)-Shape F;
7.Tree (Pointed Ends)-Shape G;
8.Flame-Shape H;
9. 60°Cone-Shape J;
10.Taper (Radius End)-Shape L;Conical Round Nose-Shape L;
11. Cone -Shape M;
12. 90°Cone-Shape K;
13.Inverted Cone-Shape N;
14.Disc Type with arc edge_Shape W;
15.Disc Type-Shape X;
16.Dics type with 90°Angle-Shape Y

4. Package details

(1) One plastic pipe packs one piece, 10 pieces per group.
(2) Use air bubble paper to encase the plastic pipes.
(3) Put goods encased with air bubble paper into the carton box.
(4) Laser print brand name on cutter shank, 1 PCS in a plastic tube, 10 PCS per group.

Company Introduction

Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc

The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, middle east, south America, etc.The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
