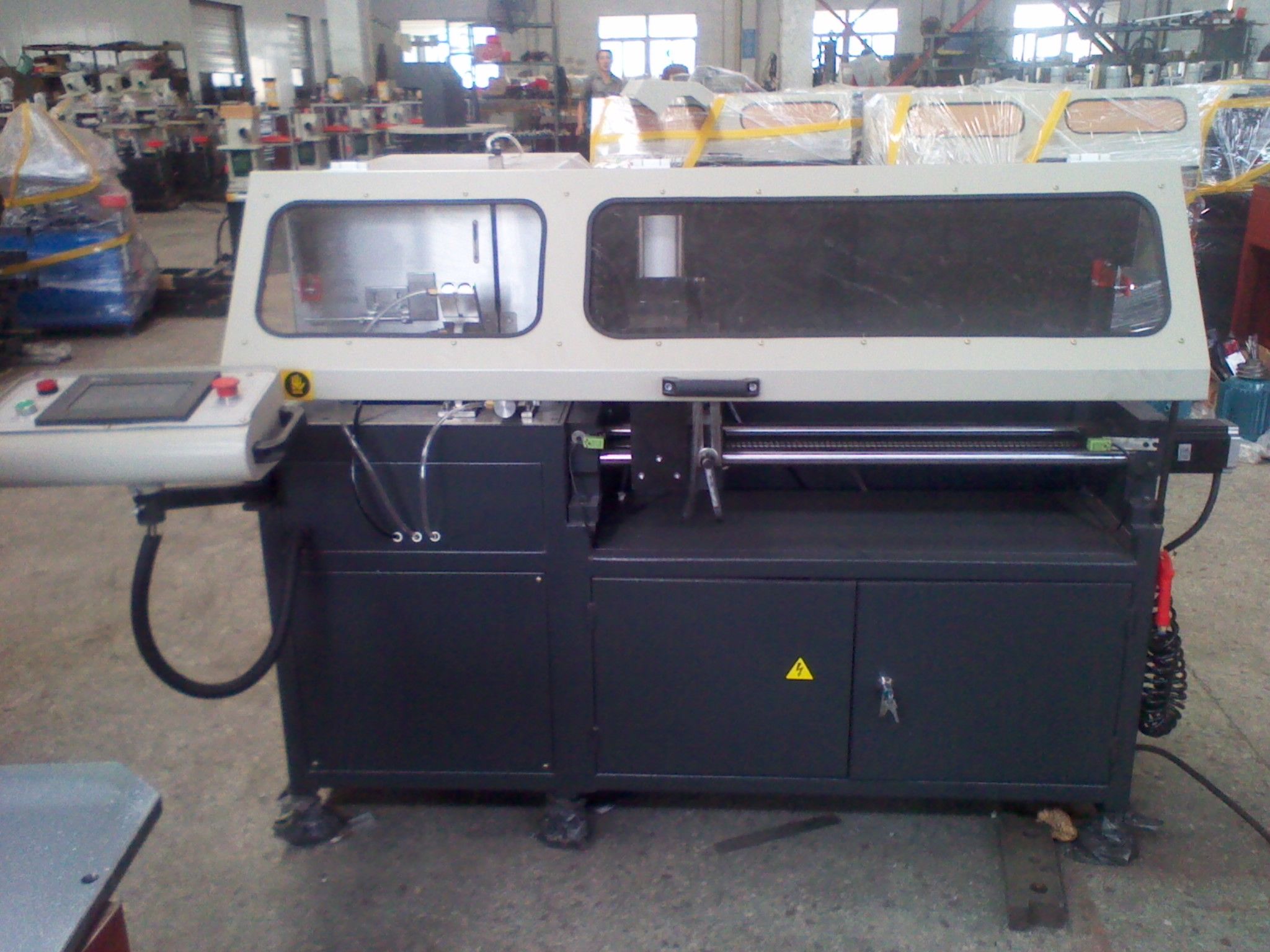

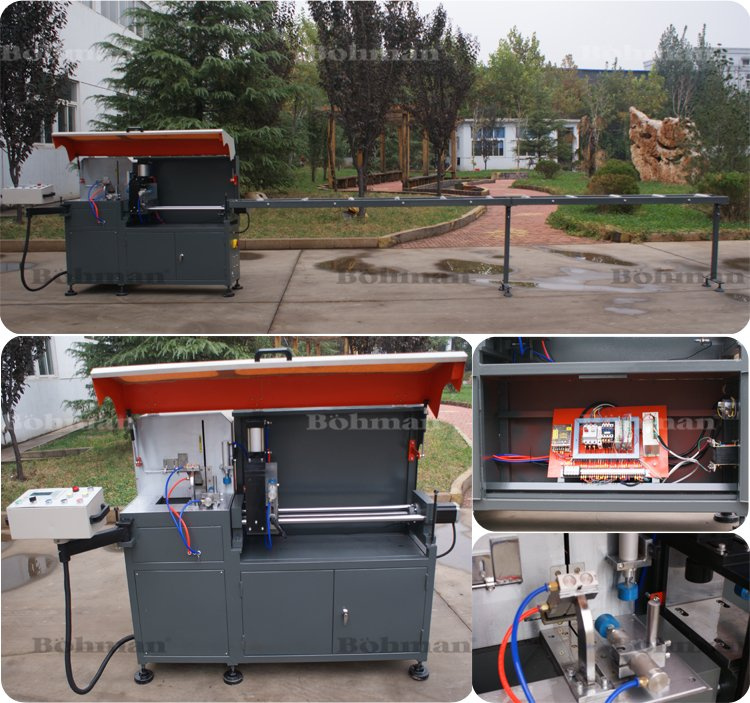

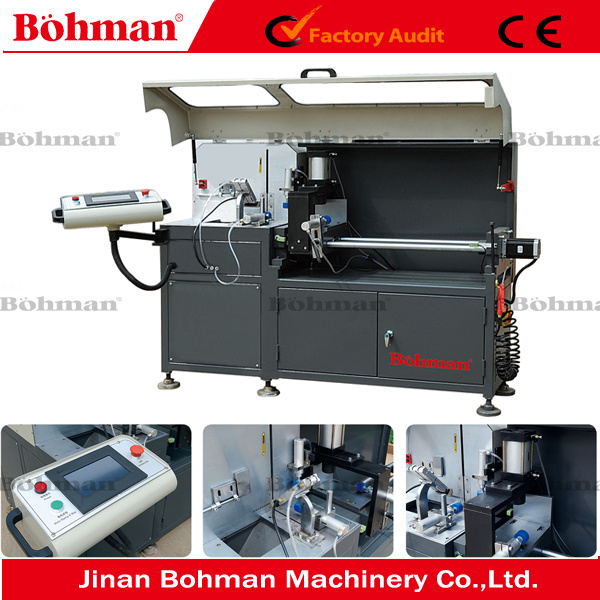

Corner Connector Automatic Heavy Duty Cutting Saw

Corner Connector Automatic Heavy Duty Cutting Saw
Price: US $ 3700-4200/Set
Min Order: 1/Set
Pay Type: T/T,Western Union,Paypal
Prod Model: LJJAS-500
Weight: 800kg

Product Description

  Production Name: Auto Aluminum Corner Connector Cutting Saw

     Features:
       ♦ It has features of easy operation reliable performance advanced technique and
     convenient maintenance.
       ♦ Used for cutting of the corner profiles for aluminum doors and windows.
       Only one time clamping,can achieve 6 meters corner section bar continuous
       Cutting.
       The use of imported control system.Control system adopts the man-machine
       interface,high automation degree.
       ♦ Imported carbide saw blade is of high cutting speed, accurate processing and
       high efficiency.
       Feed motion using linear motion bearing small movement resistance of high
       precision.
       Feeding machanism of automatic feeding system is stable and reliable with high
       efficiency.
       Work clamping,cutting and uses the pneumatic control system,convenient
       operation,safety and reliability ,high productivity.

       Technical Parameters:
Power Supply380V 50Hz
Cutting Motor Power3.2kw
Motor Rotary Speed2800r/min
Operation Air Pressure0.5-0.8mpa
Auto-feeding Length5-700mm
Air Consumption80l/min
Cutting Speed0-3m/min
Blade SpecificationØ500*Ø30*4.4 mm
Cutting width*height135*300
Outside Dimension1680*1650*1200mm
Weight800kg




Jinan Bohman Machinery Co., Ltd., located in West-high Speed Railway Station, Jinan City, Shandong Province, is a high-tech enterprise specialized in the research, manufacture and sale of aluminum-plastic door & window production equipment, high and medium grades of insulating glass production equipment and CNC router. Our products sell very well in China and are exported to many foreign countries and regions. We have many experienced technical engineers and experts who have been worked in this industry for many years. We are familiar with the situation of this industry at home and abroad. We have mastered the latest technique of the similar equipment, and have got strong ability of product research and technique support.

Based on the modern technique, we have produced all kinds of aluminum-plastic door & window production equipment and high and medium grade insulating glass production equipment, with modern technology and stable performance. Our main products are saw cutting equipment, milling equipment, angle seam cleaning equipment, angle joint equipment, various specifications of vertical insulating glass production lines, glass curtain wall production lines, LJT butyl coating machines, GT03 bicomponent rubber spreading machines, compound sealing spacer insulating glass production lines and all kinds of auxiliary equipment.

By virtue of specialized production, good quality and excellent after-sales service, Bohman has got wide recognition and praise from customers at home and abroad. Since the establishment of our company, we have taken "being an honest enterprise, producing the best equipment" as our tenet and taken the quality of our products as the lifeline of our enterprise. We also focus on the research and development of energy saving and environmentally friendly products, try to make the best equipment for manufacturing aluminum-plastic doors & windows and insulating glass and make Bohman a world famous brand.
