| Prod Model: |
MDL-80 |
| Markets: |
South America,Southeast Asia,Africa,Mid East |
| Brand Name: |
Gold |
| Power: |
39 Kw |
| Warranty: |
12 Months |
| Dimension(L*W*H): |
3000 *1800 *1500 mm |
| Weight: |
3200 Kg |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Voltage: |
380V |
| Bit: |
Diamond,Tsp,PDC,ND,Diamond Core,Diamond Bit |
Product Description

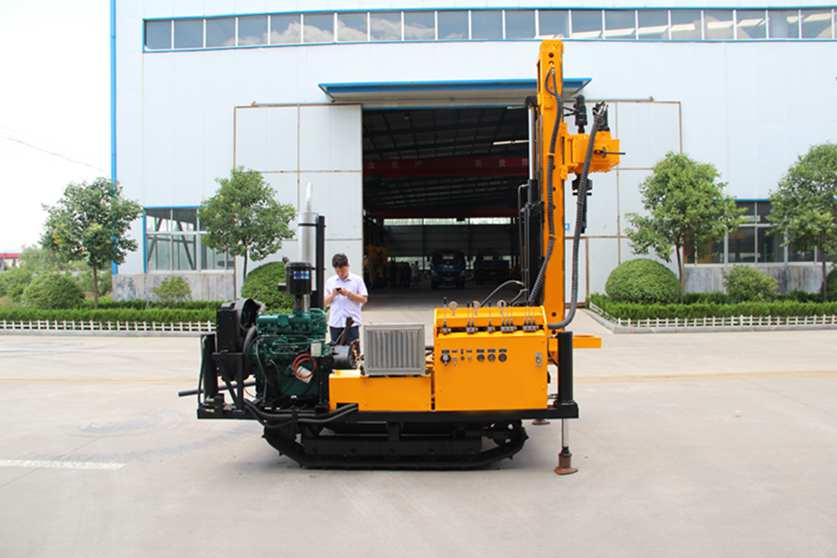

MDL-80 Crawler Drilling Rig Machine features:
1.Based on years of experience and customers' requirements, learning from international well-known manufacturers, we developed this model for mountain climbing, walking with special motor, it provides a powerful climbing ability and outstanding mobile performance.
2.MDL-80 has a rational layout, friendly integrated console what makes it very easy to operate. It adopts up and down two control valves; otherwise it's suitable for long-distance transition, efficient, safe and reduce labor intensity of users.
Specification
1. Hole diameter (mm): φ100 ~ φ210
2. Drilling depth (m): 60 ~ 100
3. Drilling angle (°): - 10 ~ 90
4. Drill diameter (mm): φ73, φ89, φ102, φ114
5. Rated output torque (Nm): 4200
6. Rated speed (r / min): 16/30/38/55/75/105
7. Lifting speed (m / min): 0 ~ 5 adjustable, 7,23,30
8. Feed rate (m / min): 0 ~ 10 adjustable, 14,46,59
9. Rated lifting force (kN): 65
10. Rated feed force (kN): 33
11. Carry out the process (mm): 1800
12. Slip stroke (mm): 600
13. Power: Electrical (power: 30kW + 1.5kW) Diesel (power: 39KW)
14, Weight (kg): 3200
15. Breaking climb angle: ≤25 °
16. Working condition: 2500 × 1800 × 3500
Transport condition: 3000 × 1800 × 1500
Packaging & Shipping
1. Inudustrial professional export packing, full inspection on all packing details.
2. Standard wooden case for Crawler Drilling Rig Machine exporting and shock absorbing for better outerior protection.
3. Considerate interior plastic sheeting protection to prevent from wet and moisture.
