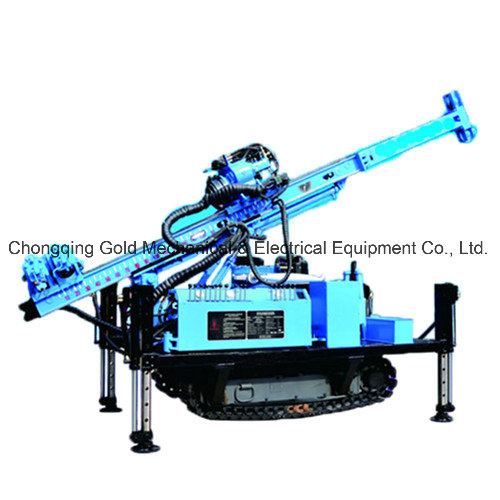

200m Shallow Hole Water Well Air Compressor Drilling Machine Equipment

200m Shallow Hole Water Well Air Compressor Drilling Machine Equipment
Price: US $ 1/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Weight: 1600kg
After-Sales Service Provided: Engineers Available
Drilling Depth: 600m
Max. Open Hole Caliber: 400mm
Usage: Coal, Ore, Water Well
Diesel Engine: R4105zd 50HP
Spindle Forward Speed: 30-1050 R/Min
Gear Oil Pump: Duplex Gear Oil Pump Cbf-F63/25
Drilling Diameter: 75 150 200 300 mm
Drilling Rod Diameter: 60mm

Product Description

XYX-3 hand well drilling equipment is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air conditioner,etc.
feature of hand well drilling equipment

1.Hydraulic cylinder,high efficiency.
2.Wheel walking mechanism,very convenient for transport and adjusting the drilling rig level.
3.Pressure gauge display the condition of the bottom of the drill hole.
4.Diesel engine with electric starter,convenient and reduce the labor itensity.
5.Equipped with BW 250 mud pump.

Drilling depth                            m100250300600
Drilling  DI                       mm30020015075
Open hole DImm300
End hole  DI                       mm75
Drilling rod                              mmΦ60
Drilling angle                           90°-65°
Rotary Spindle
Spindle forward speed                r/min30-1050
Spindle reverse speed                r/min29-137
Spindle stroke                           mm560
Spindle inner diameter                mm96
Spindle lifting capacity            KN60
Main Winch  ( drive hydraulic system)
Single line lifting speed               m/min0-45
Hug floodgate belt width                  mm90
Tightrope diameter                       mm14
Hoist single line lifting capacity     KN40
Roller diameter                            mm200
Roller cubic measure                      m30
Mud pump
Horizontal Triplex BW-250 mud pump
Displacement                               L/min250
Work pressure                           Mpa7
Water inlet caliber                      mm75
Water to exit caliber                    mm50
Gear Oil pump
Duplex gear oil pump           CBF-F63/25
Front displacement , pressure           63mL/r    20Mpa
Behind displacement , pressure        25mL/r    20Mpa
Drilling rig Power
Diesel engine                            Hp4100#      50HP
Electric motor                               KW   Y180L-4      22KW

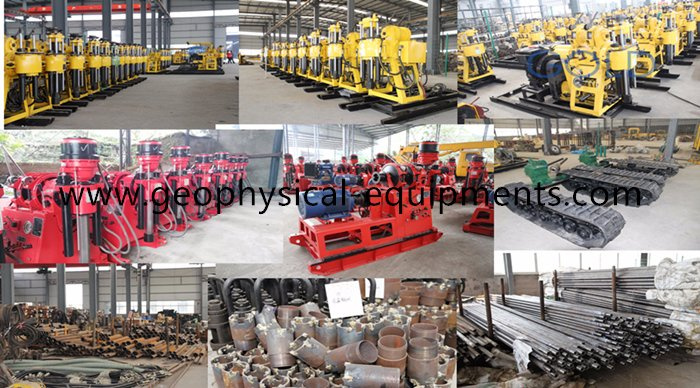

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester, electric tester, laboratory instrument, road building instrument and geophysical equipment.

Though highly acclaimed and favorably accepted by numerous customers and possessed of the right to import and export, to ensure the high quality of our products, we conduct our manufacturing in strict accordance with various standards of ISO, ASTM D, IP, GB etc. We have developed sales channels in many countries and regions such as Thailand, Philippine, Iran, Indonesia, Spain, Iceland, Chile, Regions of Southeast Asia, Middle East, Europe, North and South America etc, and have gained strong advantage and high reputation in international market.

We have persisted on the business idea of "Integrity Basis and Quality First" for the stable and constant development. We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity. Client, quality and service are our supreme target!
