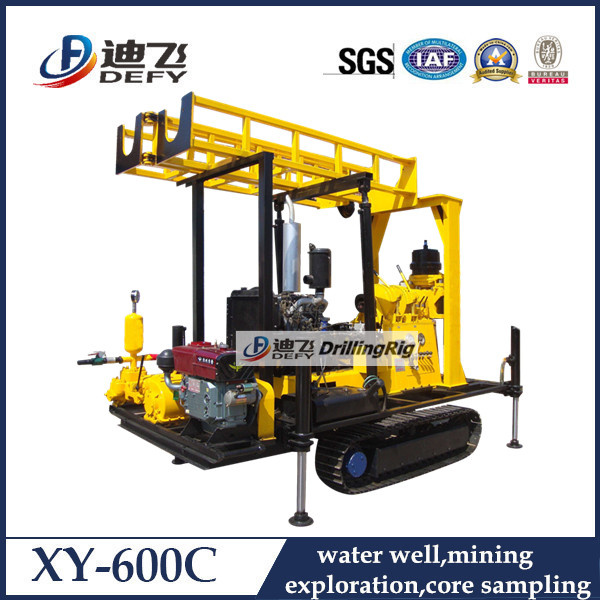

Crawler Type 600m Drill Machine for Water Used

Crawler Type 600m Drill Machine for Water Used
Price: US $ 20000-25000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: xy-600c
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Depth: 600m
Borehole Caliber Range: 75-500mm
Drilling Angle: 90°~75°
Application: Water Well, Soil Investigation, Mining Core
Control System: Hydraulic Control, Support Leg, Drill Tower
Mud Pump: Bw-200/Bw-250
Chassis: Trailer, Truck, Crawler
Usage: Water Well
Power Type: Diesel
Type: Rotary Drilling Rig
Condition: New

Product Description


XY-600C crawler mounted rock used borehole drilling machine, hot sale in Nigeria, Algeria, Uganda, South Africa, Chile, Peru, Russia, Zimbabwe, etc.

Product Description
XY-600C rock used borehole drilling machine is a hydraulic drilling rig, adopting the latest technology for diamond drilling. It is widely used   for water well, geological exploration, mining exploration, geothermal well, irrigation well, bridge conservancy, etc.

Technical Parameter


1. Main Parameters

Max. Drilling Depth

600m

Diameter of drill pipe

Φ42,Φ50,Φ60,Φ76

Angle of vertical spindle

90°~65°

Drilling capability

Φ75mm drill diameter

600m depth

Φ127mm drill diameter

400m depth

Φ219mm drill diameter

210m depth

Φ273mm drill diameter

150m depth

2. Vertical Spindle

Rotation speed

Forward 10 grades

30-1050r/min

Reverse 2 grades

29-137r/min

3. Main hoist

Lifting speed of single wire

0.5-1.9m/s

Diameter of wire rope

12.5mm

Carry capacity of single wire

4000kg

4. Mud pump(as per your choice)

Horizontal triplex mud pump

BW-200

Displacement

200L/min

5.Power supply(choose one between the following two)

Diesel engine

Model 4100,38kw(50HP)

Electrical motor

Y180M-4B35,22kw

6.Six-wheel Trailer



Walking speed

25Km/hr


Characteristics
1. Power supply:
It can be powered by diesel engine or electric motor as options; Diesel engine is started by electric battery.

2. Mobile base:
It can be mounted on trailer, crawler or truck for easy move and different drilling environment;

3. Automobile transmission assembly:
10 grades forward rotation speed and 2 grades reverse rotation speed, can meet various stratum drilling requirements.

4. Mud pump
Designed wih BW-200 or BW-250 mud pump, XY-600C is with much larger water flushing rate, with better scraps cleaning effects.

5. For different stratum
Soil, sand, gravel, rocks. XY-600C can work with alloy bit for soil and sand, PDC bit for gravel, and diamond bit for rocks and hard rocks.

6. Wide application
It can work for geological exploration, core sample, water well, geothermal well, etc. With good customer feedback.

After-Sales Service
1. One year quality guarantee for main machine;
2. Training: operation manual, overseas installation is also available;
3. Spare parts are available in our factory at cost price for former customers;
4. 24 hour on-line guidance for operation and maintenance.















Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. locates in High-tech zone of Zhengzhou City, China. Our factory dedicates to manufacturing drilling rigs since 1970s, more than 40 years experience of production and development makes our product quality rank in the leading position at home and abroad. We are always seeking for ever greater perfection, keeping improving the production technology, offering better user experience.

Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advices whenever you need.

Benefiting from the excellent performance of our drilling rigs, as well as our professional service, we have established friendly business relations with clients all over the world. Our products are serving for projects in Africa, South America, United States, Asia and so on. We cordially look forward to cooperating with you, let's work together to realize win-win result!
