Prod Model: |
STK-M-1103 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Core And Cavity Material: |
718, 718h, Nak80, P20, SKD61 etc |
Material: |
ABS, PP, PE, Pet, EVA, PMMA, PC, PU, PA etc |
Mould Steel: |
#45, #50, P20, H13, 718, 2738, Nak80, S136 etc |
Mould Life: |
500000 Shots |
Machine Size: |
80tons-1600tons |
Value-Added Service: |
Polish, Texture, Painting, Screen-Printing |
Software Applied: |
PRO/E, Autocad 2000, Solidwork 2001 |
Gate: |
Cold Runner, Dme/Hasco Hot Runner |
Certificate: |
ISO 9001: 2000 |
Surface Finish: |
EDM & High Polish |
Shaping Mode: |
Injection Mould |
Process Combination Type: |
Compound Die |
Application: |
Hardware |
Installation: |
Semi Fixed |
Plastic Material: |
as Per Clients' Request |
Product Description

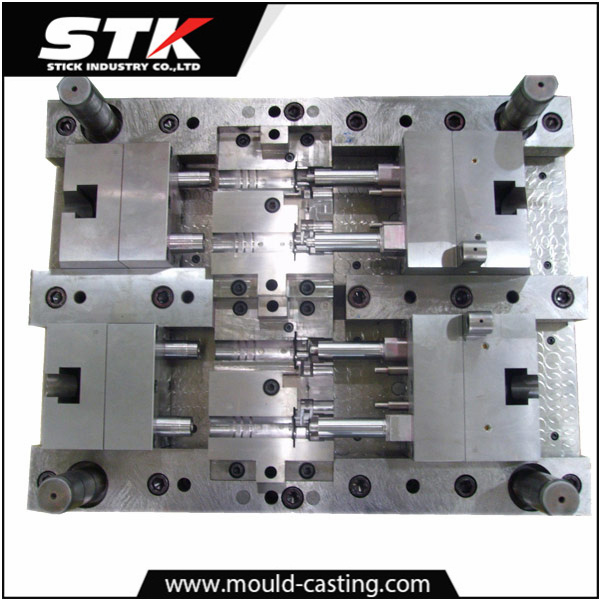

Product Name: Customed Industrial Machanical Metal Polished Plastic Injection Mould
Mold Standard | HASCO, DME, JIS, CHINA LKM |
Mold Base | LKM & HASCO & DME standard |
Material Main Core & Cavity Insert | P20, 718, 718H, S136, 420ESR, NAK80, SKD61, 8407, H13 |
Hardness of Steel | 46~56HRC |
Cavity | Single-cavity, Multi-cavity |
Surface Finish | EDM & High Polish |
Gate | Cold Runner, DME/HASCO Hot Runner |
Maximum Mold Size | 1500mm(L)*1300mm(W) |
Mold Life Time | 50,000shots ~ +1,000,000shots |
Applied Software | Pro-E, Solid Works, UG, CAD |
Quality | ISO9001-2000 Certification |
Product Material | PA, PA6/6+GF, ABS, POM, PC, PP, PET, TPE, PVC, HDPE etc |
Lead-time | 4-7 weeks |
Package | Wooden/plywood case for tool. PE bags and Export Carton for parts |
Export Country | Europe, The US, Mexico, Russia, Australia, Middle-East, Asia etc |
Value-added Service | Polish, Texture, Painting, Screen-Printing |
Advantage:
u In-house mold design and mold manufacturing
u Precision Single-cavity and multi-cavity molds
u Design for Manufacturability
u Fast Turnaround
Ms Ivy Lo
XIAMEN STICK INDUSTRY CO., LTD
Unit 05C,5th Floor,Hai Fu Business Center,
A 597 Shi Shui Road,Xiamen,China. Post Code:361008
Pho: (86)592-5209671, Fax: (86)592-5209672
Web: www.stickindustry.com www.mold-custom.com
We believe that the best way to ensure our success is by providing our customers consistent quality in a timely fashion and at a fair price.
Stick Industry was established in 2004, with factory located in Haicang district, Xiamen city, South East of China. The company has been in business for over 10 years, beginning as a small plastic mold and die casting mold workshop growing into an industrial leading, multi-plant molder with factory size over 10000 square meters and employees about 150.
Conveniently located in the south of China, our ISO 9001-2000 Certified facility economically services markets throughout the world including USA, Russia, Canada, Mexico, Brazil, Germany, Spain, Italy, Poland etc
In addition to outstanding growth in our die cast and injection molding department, our secondary machining operations have continued to grow to meet the varied needs of our customers, including: Drilling, tapping, turning, boring, milling, sanding, shot blasting, vibratory finish, and more.
From concept to final production, from mechanical and electronic design to components sourcing, and from prototype manufacturing to mold design, our engineer team can jump in at any stage to complete your valuable project on time.
Our service include: Moulds, plastic injection molding, Aluminum/Zinc Die casting, CNC Machining, Sheet Metal Forming, Surface Treatments, Assembly and packaging.
