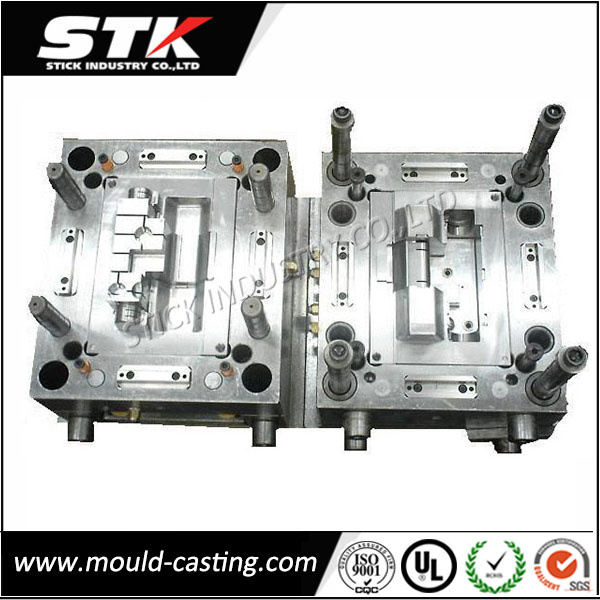

High Precision Home Appliance Plastic Injection Moulding Mold

High Precision Home Appliance Plastic Injection Moulding Mold
Price: US $ 500-10000/Set
Trade Terms: FOB,CIF,CIP
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: STK-MP0003
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Core And Cavity Material: 718, 718h, Nak80, P20, SKD61 etc
Material: ABS, PP, PE, Pet, EVA, PMMA, PC, PU, PA etc
Mould Steel: #45, #50, P20, H13, 718, 2738, Nak80, S136 etc
Mould Life: 500000 Shots
Machine Size: 80tons-1600tons
Tolerance: +/-0.05mm (Post Processing Is Available)
Cavity: Single or Multiple
Port Of Loading: Xiamen Port
Certificate: ISO 9001:2000, SGS
Lead-Time: 2-4 Weeks
Shaping Mode: Injection Mould
Process Combination Type: Compound Die
Application: Hardware
Installation: Semi Fixed
Plastic Material: as Per Clients' Request

Product Description

Xiamen Stick Industry Co., Ltd., a professional die cast and injection molding manufacturer in China,specializing in producing Moulds, plastic injection molding, Aluminum/Zinc Die casting, CNC Machining, Sheet Metal Forming, Surface Treatments, Assembly for your OEM order with competitive price


Advantage:

*  In-house mold design and mold manufacturing
*  Precision Single-cavity and multi-cavity molds
*  Design for Manufacturability
*  Fast Turnaround



Why Choose Us

1. Founded in 2004, Cover an area of 10000 sqms Plant; Provide OEM/ODM Service

2. Certified by ISO90001, SGS,CE,UL etc

3. Over 10 years experience in Mold Making & Die Casting Parts Mass Production

4. Integrating R&D, QC System & Marketing Sales.

5. Onestop Service of Custom mold design from Initial drawing design,

    Material selection assistance, Mold structure/Mold flow analysis,

    Trial & mass production to Final mold assembly & shipment.


.

Mould Specifications
Mold StandardHASCO, DME, JIS, CHINA LKM
Mold BaseLKM & HASCO & DME standard
Material Main Core & Cavity InsertP20, 718, 718H, S136, 420ESR, NAK80, SKD61, 8407, H13
Hardness of Steel46~56HRC
CavitySingle-cavity, Multi-cavity

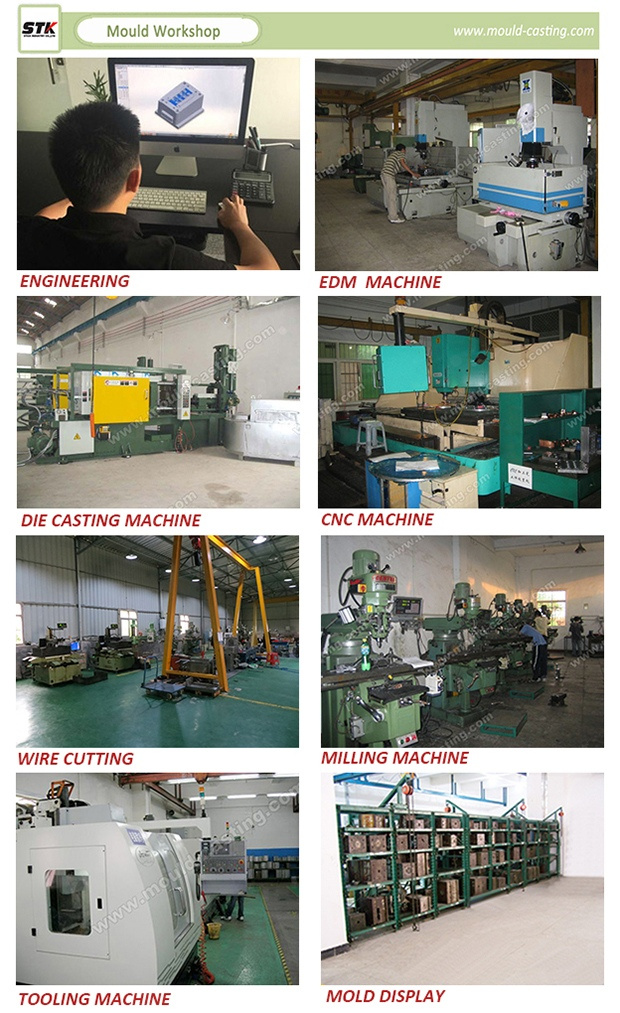

Main Processing EquipmentCNC, Grinding machine, Lathe, Drill Press, EDM center
Surface FinishEDM & High Polish
GateCold Runner, DME/HASCO Hot Runner
Maximum Mold Size1500mm(L)*1300mm(W)
Mold Life Time50,000shots ~ +1,000,000shots
Applied SoftwarePro-E, Solid Works, UG, CAD
QualityISO9001-2000 Certification
Product MaterialPA, PA6/6+GF, ABS, POM, PC, PP, PET, TPE, PVC, HDPE etc
Lead-time4-7 weeks
PackageWooden/plywood case for tool. PE bags and Export Carton for parts
Export CountryEurope, The US, Mexico, Russia, Australia, Middle-East, Asia etc
Value-added ServicePolish, Texture, Painting, Screen-Printing
Business Scope1, Industrial design

2, Mould making

3, Parts machining

4, Reverse engineering

5, Injection molding

6, CNC prototype manufacturing




Introduction:

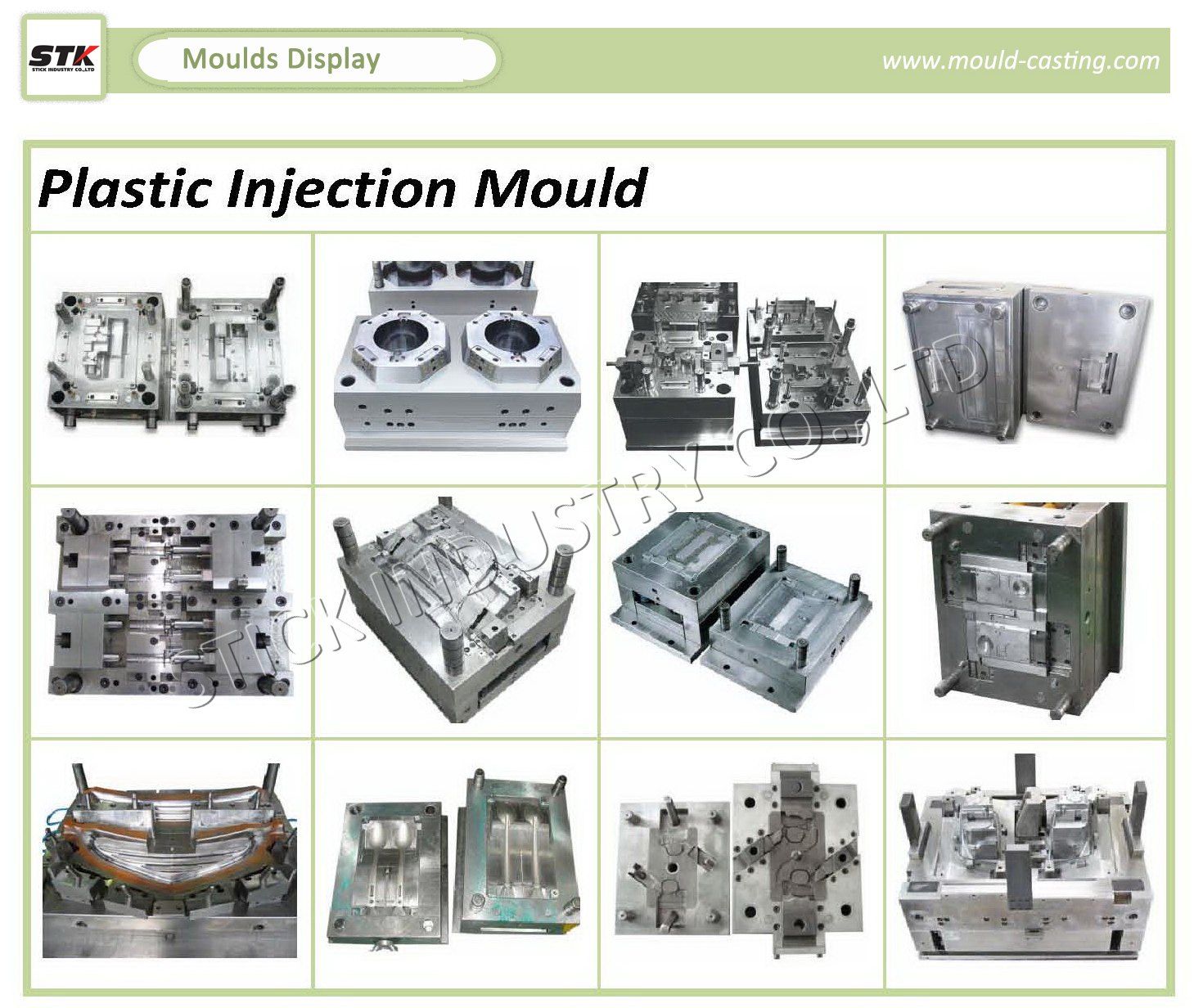

Over the years, STK has designed and exported hundreds of different plastic injection and die casting molds. Whether you require a basin mold or a complex mold, we have the skills and experience to design you mold accurately and on time.

The high quality mold is the core business of STK. We have 10 special mold designers who have rich experience in plastic properties and mold structure. Before Designing start, our designers will run mold Flow Analysis and attend a technical meet for each mold with Tool Dept. and Injection Dept. to avoid potential manufacture problem and trouble shoot. All these are the strong guarantee of our high quality and short lead time.

Our design of manufacturability ensures the molding to make high quality parts all the time, consistently meeting customers' highest expectation. Having professional industry knowledge of mold design and mold manufacturing, we are eligible for offering the most effective molds and molded products with the most favorable price. We can efficiently work out your mold design with low maintenance land long lifespan.







We will pay great attention to your any question or enquiry.
If any questions, please feel free to contact us at any time.

We believe that the best way to ensure our success is by providing our customers consistent quality in a timely fashion and at a fair price.

Stick Industry was established in 2004, with factory located in Haicang district, Xiamen city, South East of China. The company has been in business for over 10 years, beginning as a small plastic mold and die casting mold workshop growing into an industrial leading, multi-plant molder with factory size over 10000 square meters and employees about 150.

Conveniently located in the south of China, our ISO 9001-2000 Certified facility economically services markets throughout the world including USA, Russia, Canada, Mexico, Brazil, Germany, Spain, Italy, Poland etc

In addition to outstanding growth in our die cast and injection molding department, our secondary machining operations have continued to grow to meet the varied needs of our customers, including: Drilling, tapping, turning, boring, milling, sanding, shot blasting, vibratory finish, and more.

From concept to final production, from mechanical and electronic design to components sourcing, and from prototype manufacturing to mold design, our engineer team can jump in at any stage to complete your valuable project on time.

Our service include: Moulds, plastic injection molding, Aluminum/Zinc Die casting, CNC Machining, Sheet Metal Forming, Surface Treatments, Assembly and packaging.

We will pay great attention to your any question or enquiry.

If any questions, please feel free to contact us at any time.

Tel: 86-592- 5209671

Fax: 86-592- 5209672

Ms. Anna Lin

Website: Www. Stickindustry. COM / www. Mould-casting. COM
