| Prod Model: |
7.2.1.14 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
14 Inch |
| Usage: |
Cutting |
| Manufacturing Arts: |
Welding |
| Kind: |
Diamond Laser Saw Blade |
| Saw Blade External Diameter: |
350mm |
Product Description

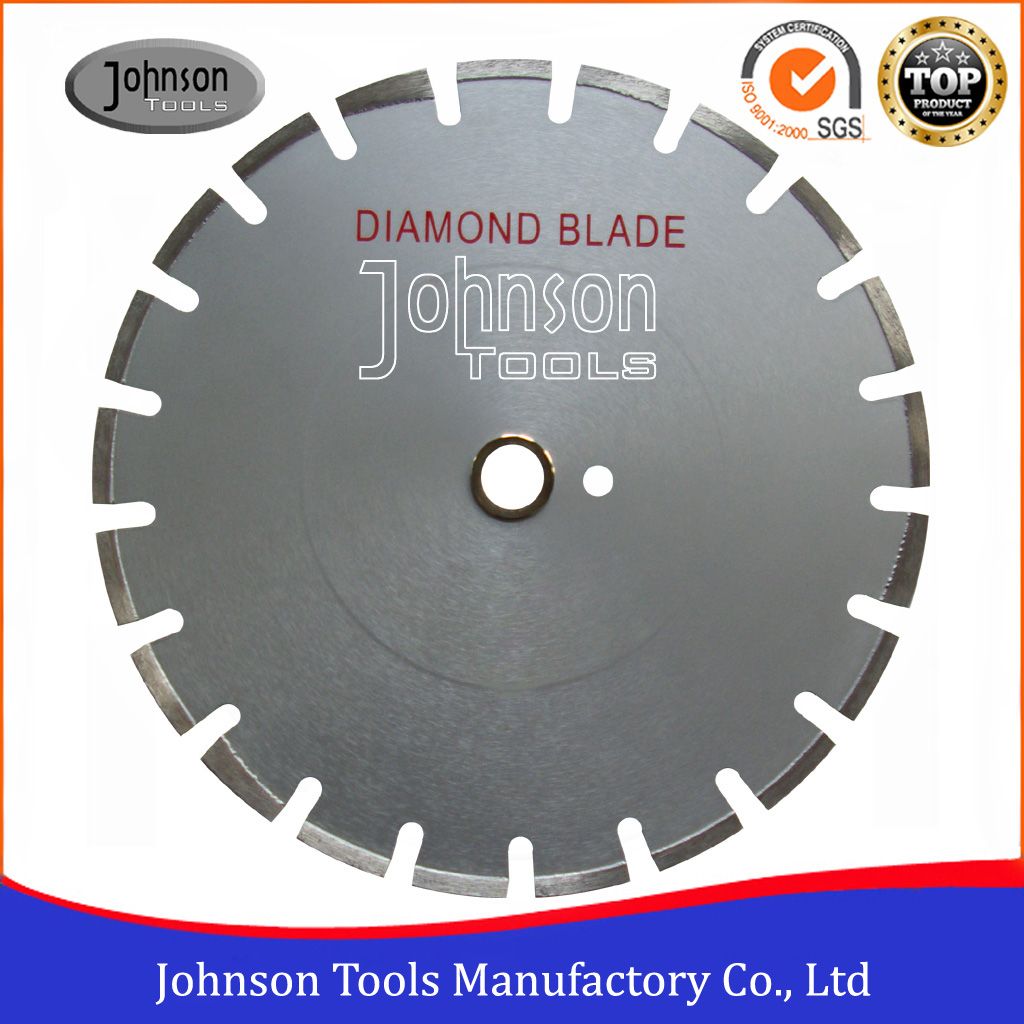

350mm Laser Welded Diamond Saw Blade for General Purpose
1. Description of 350mm Laser Welded Diamond Saw Blade for General Purpose
General purpose diamond blade is perfect for those contractors who need to cut a wide variety of different materials. These materials include masonry, concrete, brick, block, slate or quarry. Universal blades also work well on a wide variety of saws including masonry saws, brick saws, concrete saws, cut-off saws, walk behind saws, gas powered saws and circular saws. One of the obvious advantage of using this type of saw blade is that the saw cutting blade does not have to be changed between jobs. This efficiency and flexibility results in lower operating costs.
We could offer a wide variety of diamond saw blades for general construction cutting, stone cutting. We also carry saw blades for brick, block, masonry, ductile iron, marble, granite, cured concrete, green concrete, and tile. Besides, We also produce other diamond tools like diamond cup wheels, tuck point blades, core drill bits, diamond polishing pads and profiling wheels. All of these diamond tools are meet to GB standart. Every diamond blade cuts fast and gives long life on abrasive materials to hard masonry, concrete and stone materials. If you need a blade for a concrete saw, asphalt saw, high speed gas powered saw or walk behind saw, please don't hesitate to call us, we could provide any tools you want.
2. Features of 350mm Laser Welded Diamond Saw Blade for General Purpose
1) 100% laser welding technology.
2) Wet or dry cutting granite, marble, sandstone, masonry, concrete, reinforced concrete, asphalt, brick etc.
3) Unercut protection segments provide longer lifetime.
4) Suit to high Speed Hand Saws, Table Saws, Low HP Walk-Behind Saws.
5) Well exported to America, European, Asia, Africa, Australia market.
3. Specification information of 350mm Laser Welded Diamond Saw Blade for General Purpose
Diameter:350mm
Segment thickness:3.2mm
Segment height:10/12/15mm
Bore size:25.4mm, 25.4/20mm, 50mm, 60mm etc or as your request.
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 14" | 350 | 40 | 3.2 | 10 | 24/21 |
| 14" | 350 | 40 | 3.2 | 12 | 24/21 |
| 14" | 350 | 40 | 3.2 | 15 | 24/21 |
Other size we could do
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20/18 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28/24 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32/26 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36/30 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42/36 |
| 32" | 800 | 40 | 6.0 | 10/12/15 | 46/40 |
4. Packing and Shipping of 350mm Laser Welded Diamond Saw Blade for General Purpose
Each saw blade is packed in white box or colored box packing, then according to the size, 10pcs put in an export standard carton, gross weight per carton is limited within 20-25kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. Our Technology:
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
7. FAQ
Q: How to place order to your company?
1) Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2) Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3) Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4) Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5) After-Sale Service: Track the goods, learn the products' performance.
6) Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
8. Company information
Established in 2000 year, Johnson Tools Manufactory Co.,Ltd have been acting as one of leading manufacturers in China's stone and construction industries.
We enjoy good reputation among customers with trustworthy product quality and creditable service. Provide good quality diamond tools on sawing, grinding, polishing and drilling industry, such as laser welded wall saw blade, floor saw blade, concrete saw blade, asphalt saw blade, stone saw blade, electroplated saw blade, tuck pointing saw blade, diamond segments, grinding wheels, polishing pad, core bits, TCT saw blade, also stone cutting machine, etc.
Johnson Tools people sincerely looking forward to serving you in the near future!
Let's work together to make the business better and better.
9. Contact us
More information about our products, welcome to visit our website www.johnsontoolscn.com and www.diamondsaw-blade.com, you will get more than you can see.
