Prod Model: |
Xy-44A, Xy-8 |
Product Name: |
Xy Series Core Drilling Rig |
Model: |
Xy-44A,Xy-8 |
Max. Drilling Depth: |
1400m,3000m |
Maximum Opening Diameter: |
1000mm,1000mm |
Drill Pipe Diameter: |
42-89mm,42-89mm |
Borehole Inclination: |
0°- 360°,0°- 360° |
Electric Motor: |
37/1480kw/R/Min,75/1480kw/R/Min |
Diesel Motor: |
81/2800kw/R/Min,177/2300kw/R/Min |
Type: |
Feed with Double Cylinders Oil Hydraulic |
Spindle L.D: |
93mm,96mm |
Product Description
XY-44A and XY-8 Drilling RigIntroduction XY-44A and XY-8 drilling rig are big core drilling rig.It is mainly used for the small,big diameter hole core drilling by alloy and diamond bit drilling.Suitable for the metal,mining exploration,water well,shallow oil field and gas exploration,geothermal well drilling and large diameter pile foundation engineering construction.
Feature
1.More speed grade,Max.torque is up to 8000N.m.
2.Large spindle,powerful drilling capacity,high efficiency.
3.Good dismountability,light weight,move easily.
4.Equipped with a water brake for steady and smooth deep hole drilling.
5.With low center of gravity and long traveling distance,much more reliable and stable.
6.With an antivibration meter,easy to know the condition in the hole.
Parameters
The whole machine parameters |
Model | XY-44A | XY-8 |
Max. Drilling depth | 1400m | 3000m |
Maximum opening diameter | 1000mm | 1000mm |
Drill pipe diameter | Φ42-89mm | Φ42-89mm |
Borehole inclination | 0°- 360° | 0°- 360° |
Electric motor | 37/1480kw/r/min | 75/1480kw/r/min |
Diesel motor | 81/2800kw/r/min | 177/2300kw/r/min |
Rotator |
Type | Feed with double cylinders oil hydraulic |
Spindle L.D | 93mm | 96mm |
Spindle |
Spindle speed | 60-1476r/min | 74-1256r/min |
Max. Torque of spindle | 8000N.m | 12500N.m |
Winch |
Single line lifting capacity | Φ18.5mm | Φ21.5mm |
Single rope lifting speed | 95m | 120m |
Skids type drill frame |
Rig backward stroke | 460mm | 530mm |
Dimension | 3050*1100*1920mm | 3800*1500*2460mm |
Weight | 2300kg(without power motor) | 6500kg |

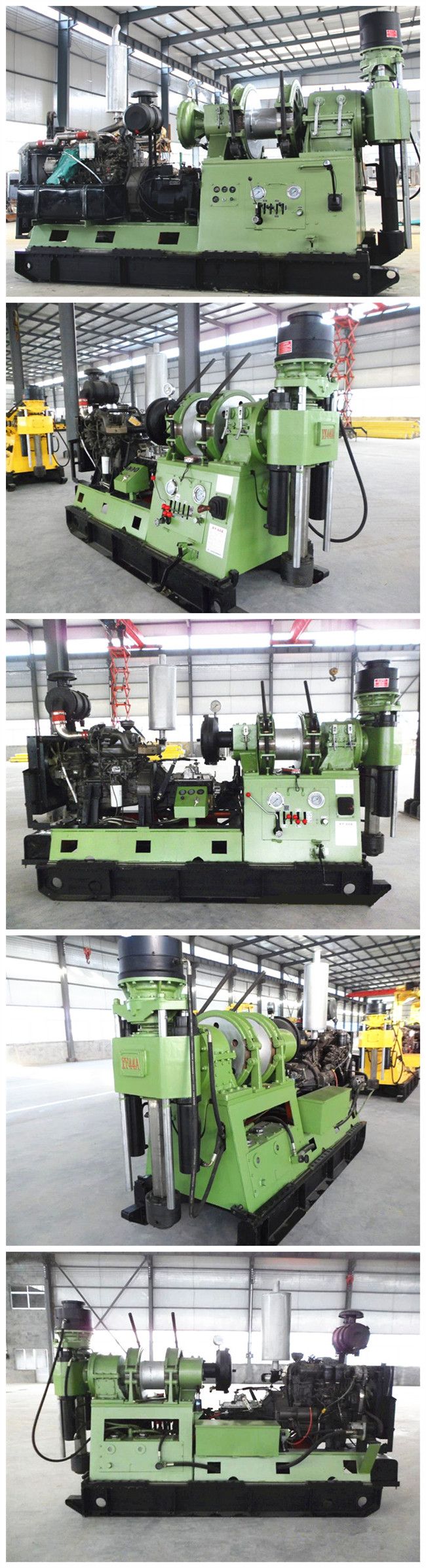

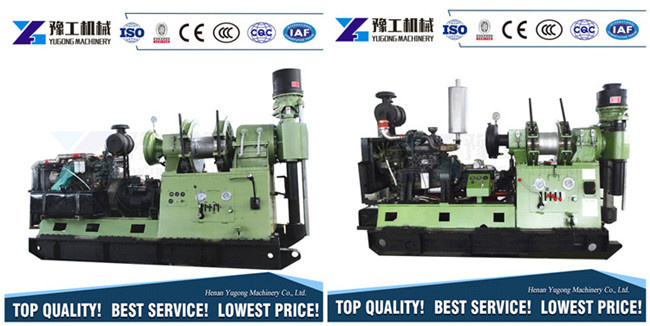

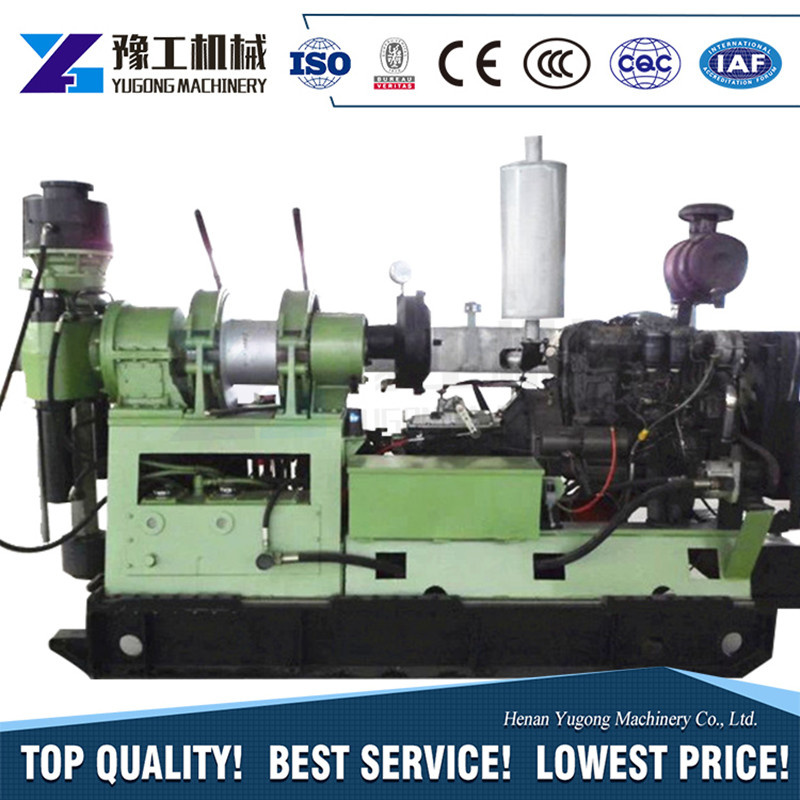

Product Display

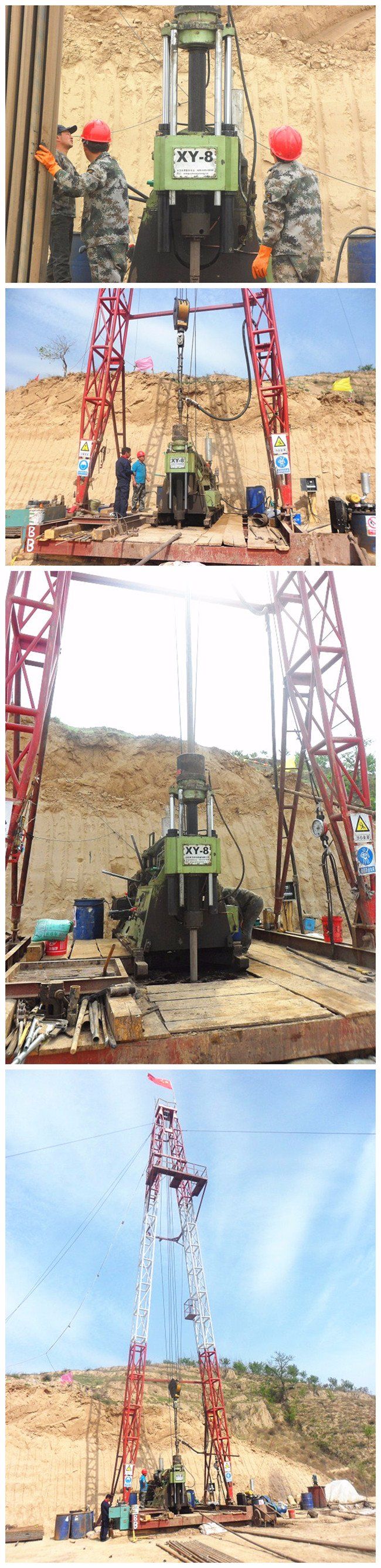

Working
Packing and Shipping
FAQ Q1: Are you trading company or manufacturer?
A1: We are original equipment manufacturer.
Q2: How long is your delivery time?
A2: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
Q3: Do you provide samples? Is it free or extra?
A3: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
Q4: What is your terms of payment?
A4: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.
