Df-H-4 Full Hydraulic Diamond Mining Core Drilling Machine

Name: Df-H-4 Full Hydraulic Diamond Mining Core Drilling Machine
Brand: tool-buy.com
SKU: 714966392
Availability: InStock
Rating: 4.8 (148 reviews)

Price:	US $ 160000-200000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	DF-H-4
Bq:	1000m
Nq:	700m
Hq:	500m
Features:	Full Hydraulic Control, Easy to Operate
Drill Head Max.Spindle Torque:	3700 N.M
Rated Rpm (Factory Setting):	2200rpm
Mast Height:	9.6 M(31.49 Feet)
Max. Feeding Power:	60 Kn(13480 Lbf)
Power(W):	132kw (180HP)
Dimension(LWH):	510022002650mm
Usage:	Core Drilling
Power Type:	Diesel
Type:	Core Drilling Rig
Condition:	New

Product Description

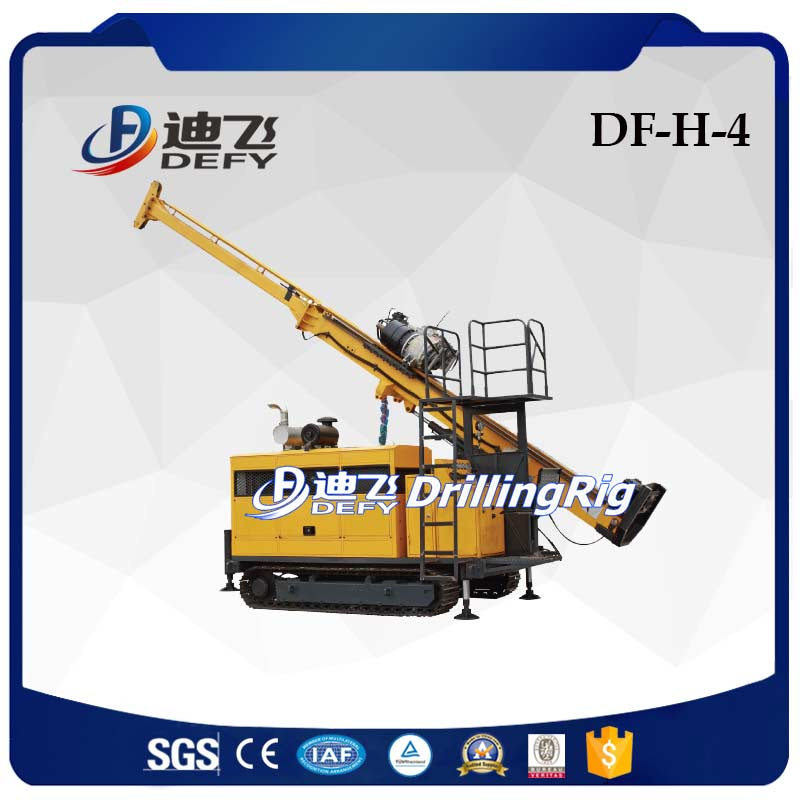

DF-H-4 Full hydraulic diamond mining core drilling machine

Production Description:
DF-H-4 Full hydraulic diamond mining core drilling machine is widely applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.

Technical Parameter:

DF-H-4 Full hydraulic diamond mining core drilling machine
Diesel Engine	Model	Cummins 6BTA5.9-C180 (turbocharged and charge water cooled)
	Displacement	5.9L (1.56 US Gallons)
	Power	132Kw (180HP)
	Rated RPM(Factory setting)	2200rpm
Drilling Capacity	BQ	1000m(3280feet)
	NQ	700m(2296 feet)
	HQ	500m(1640 feet)
	PQ	300m(984 feet)
Drill Head	Rotation Motor	Hydraulic Motor-variable Maker: SAUER-DANFOSS
	RPM	Four Shifts/ Stepless Change, 0-1100 RPM
	Head Opener	Pivoting style, Manual actuated
	Hydraulic Chuck(PQ)	Hydraulically opened, Disc Spring, Clamping, Normally C Closed Type, Axial Holding Capacity of 222 400 N
	Max. Torque	3700 N·m(2727 lbf·ft)
	Hold Diameter	121 mm(4.76 inch)
	Max. Lifting capacity of Spindle	150 kN(33720 lbf)
	Max. Feeding Power	60 kN(13480 lbf)
Capacity of Main Hoist	Hoisting force (single wire)	57kN(12814 lbf) (bare drum)
	Hoisting Speed (single wire)	38-70m/min(bare drum)
	Steel Wire Diameter	18 mm(0.71 inch)
	Steel Wire Length	50 m(164 feet)
Capacity of Wireline Hoist	Hoisting Force (single wire)	1200 Kg(2646 lb) (bare drum)
	Hoisting Speed (single wire)	60-90m/min (bare drum)
	Steel Wire Diameter	5.3 mm(0.2 inch)
	Steel Wire Length	1000 m(3280 feet)
Mast	Mast Height	9.6 m(31.49 feet)
	Mast Adjusting Angle	0°-90°
	Drilling Angle	45º off horizontal to 90ºvertical down
	Feed Pull	15000kg(33075 lb)
	Feed Thrust	6000kg(13230 lb)
	Rod Pull	3m or 6m(9.84feet or 19.68feet)
	Feeding Stroke	3500 mm(137.80 inch)
	Slippage Stroke	600 mm(23.62 inch)
Mud Pump	Type	Reciprocating pump Triplex Plunger
	Model	BW160/10
	Stroke	70mm(2.76 inch)
	Discharge pressure	2.5, 4.0, 6.5, 10.0 Mpa (363, 580, 943, 1450 psi)

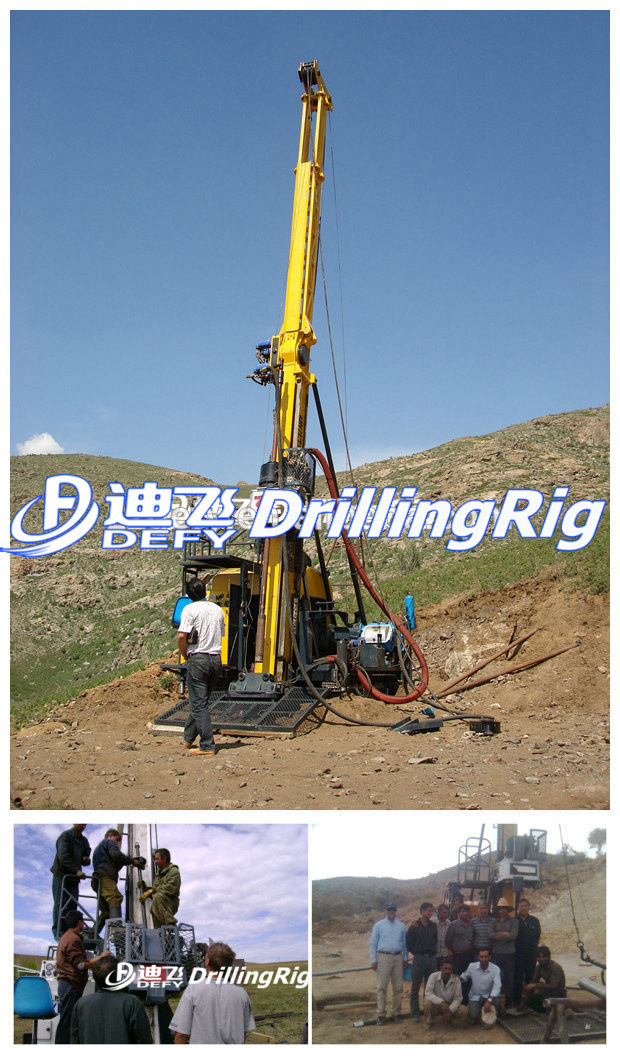

Working Site:

Certificates:

Contact me:
Name: James Feng
Mobile: 0086-159 3715 7989
Web: www.zzdefy.com.cn;www.zzdefydrillrig.com

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. locates in High-tech zone of Zhengzhou City, China. Our factory dedicates to manufacturing drilling rigs since 1970s, more than 40 years experience of production and development makes our product quality rank in the leading position at home and abroad. We are always seeking for ever greater perfection, keeping improving the production technology, offering better user experience.

Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advices whenever you need.

Benefiting from the excellent performance of our drilling rigs, as well as our professional service, we have established friendly business relations with clients all over the world. Our products are serving for projects in Africa, South America, United States, Asia and so on. We cordially look forward to cooperating with you, let's work together to realize win-win result!
