| Prod Model: |
DF-Y-2 |
| Weight: |
1200kg Without Power |
| Warranty: |
1 Year for Main Machine |
| Max.Lifting Capacity Of Spindle: |
60 Kn |
| Rotation Angle Of Spindle: |
0-360 Degree |
| Max.Rotary Torque Of Spindle: |
3147 N. M |
Product Description
Product Description

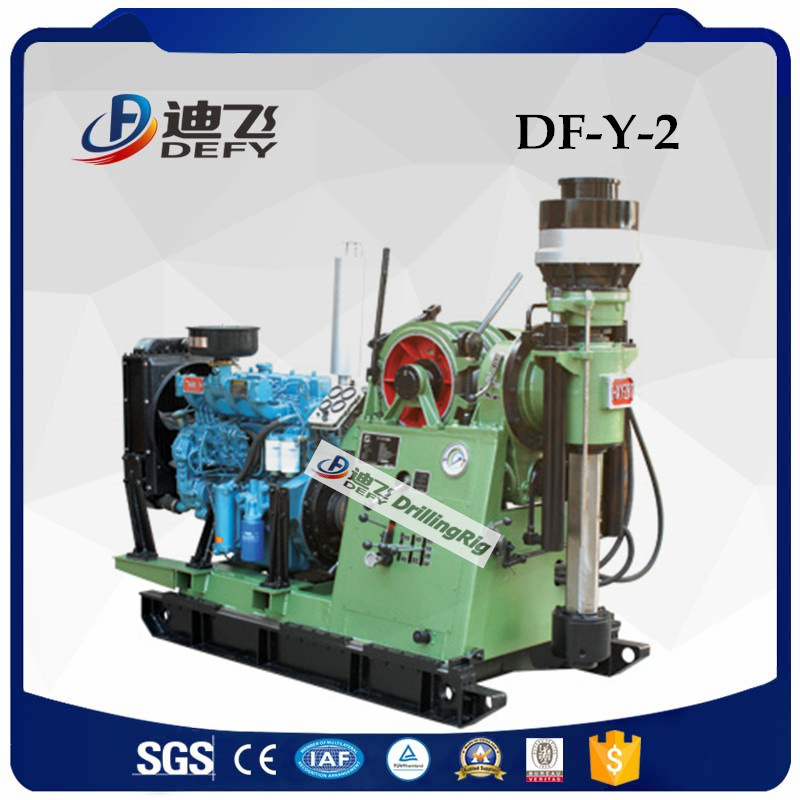

DF-Y-2 hydraulic exploration core drills
I.General Description of DF-Y-2 Core Drilling Machine:
DF-Y-2 Core Drill is up-dated designed according to the development of geological works to meet the needs of
users.It is a new type spindle core drill rig. It is applied for engineering geological exploration drilling, hydrogeology
well drilling and big-hole basic engineering drilling including core drilling with tungsten-carbide tipped and diamond
bit mainly.
II.Characteristics of DF-Y-2 Core Drilling Machine :
1. Light in weight, easy relocation.
2. Adopting traversal winch, this will overcome the fault of wire arbitrary intertwine and quick wearing out of the
winch laid in length ways.
3. Belt transmission is adopted for the high speed level to make the drill soft in the uneven formation, and reduce
the damage to the components and other mechanical failure.
4. In large spindle hole.
5. With wide speed range and large torque moment in lower speed, it is suitable for engineering geological
subterranean and water explorations.
6. The rig is stable in relocation and firmly for position.
7. Debuts F3L 912 diesel engine or 22Kw electric motor for your selection.
Specifications
core drilling machine
1.Used for both diamond coring and water wells
2.Using wireline coring
3.Integrated tower
4.ISO&CE
Drilling capacity | Drilling type | Drilling depth |
| Foundation pile drilling | 100m (328 feet) |
| Hydro geological well drilling | 150m (492 feet) |
| Core Drilling | 600m (1968 feet) |
Rotator | Type of power engine | Diesel/electric motor |
| Positive speed (r/min) | 92;152;230;330;293;485;734;1056 |
| Negative speed (r/min) | 81;258 |
| Max. torque of Spindle | 2.1 KN·m (1548 lbf·ft) |
| Spindle I.D | 93mm (3.66 inch) |
Hoist | Hoisting capacity | |
| (single-third of the rope ) | 31300,12600,8800 N |
| (7034;2831;1978 lbf) | |
| Lifting speed of wire rope | |
| (The third rope) | 0.64; 1.05; 1.6; 2.3 m/s |
| (2.1;3.44;5.25;7.54 inch/s) | |
| Wire rope diameter | 12.5mm (0.49 inch) |
| Drum diameter | 194mm (7.64 inch) |
| Brake rim diameter | 360mm (14.17 inch) |
| Drum length | 150mm(5.91inch) |
| Brake band width | 90mm (3.54 inch) |
| Drum capacity | 80m (262.4feet) |
Traveling device | Retraction cylinder stroke | 600mm (23.62 inch) |
| Distance between drill rig and hole | 420m (16.54inch) |
Pressurizing system | Cylinder I.D. | 70 mm(2.76 inch) |
| Cylinder rod dia. | 35 mm (1.38 inch) |
| Max. pressure | 45 KN(10116 lbf) |
| Max. lifting force | 60 KN(13488lbf) |
| Cylinder stroke | 550 mm (21.65 inch) |
Oil pump | Type | CBF-E416-AL |
| Displacement | 16L/min (4.22 US Gallons/min) |
| Speed | 1500(r/min) |
| Working pressure | 8Mpa (1160 psi) |
| Max. pressure | 20Mpa (2901 psi) |
The hexagonal Kelly | Φ89×79 mm,Φ76×66 mm,Φ60×53 mm
(Φ3.50×3.11 inch,Φ3.0×2.60 inch,Φ2.36×2.09 inch) | Φ89 mm,Φ71 mm,Φ50 mm
(Φ3.50 inch,Φ2.80 inch,Φ1.97 inch) |
|
|
| Dimensions (L×W×H) | 2177×950×1863 mm (85.71×37.40×73.35 inch) |
| Weight of drill (without power unit) | about 1300 kg (2867 lb) |
