| Prod Model: |
DF-Y-8 |
| Voltage: |
380V |
| Power(W): |
134kw |
| Weight: |
7900kg Without Power Unit |
| Warranty: |
1 Year |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Max. Torque Of Spindle: |
11498n.M |
| Max. Lifting Capacity Of Spindle: |
310kn |
| Max. Pressuring Force Of Spindle: |
145kn |
| Max. Hoisting Force(Single Rope): |
135kn |
| Application: |
Water Well, Fundation and Mineral Exploration, Cor |
Product Description

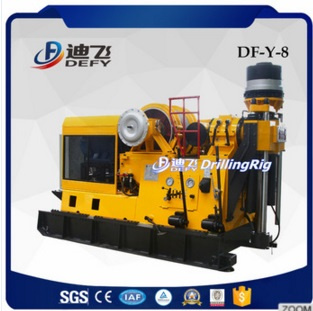

DF-Y-8 3000m Portable Hydraulic Diamond Rotary Core Drill
Rotary Core Drill
Portable Core Drill
Diamond Core Drill
Product Application
1.DF-Y-8 3000m Experienced Manufacturer Core Drilling Rig Machin is mainly used for engineering exploration, water well and foundation hole drilling
2.It is used in mineral exploration,groundwater exploration, shallow layer oil and natural gas exploration. and even hole for sap ventilation and sap drain etc. projects with diamond bit or tungsten-carbide tipped bit too.
3.DF-Y-8 3000m Experienced Manufacturer Core Drilling Rig Machine is very widely used in China, it has good performance in South-east Asia, Africa, European countries too.
Structure Features
1.The hydraulic chuck adopts one-way oil supply and equipped with hydraulic lock. The chuck is powerful and stable in clamping.
2.DF-Y-8 3000m Experienced Manufacturer Core Drilling Rig Machine is equipped with water brake, the rig is steady and secure in deep hole drilling.
3.Compact in structure and reasonable layout, and all exposed outside, non overlapped components, it is easier for maintenance and repair.
4.DF-Y-8 3000m Portable Hydraulic Diamond Rotary Core Drill is a kind of core drill rig for medium and deep hole drilling using diamond andcarbide-tipped bits, with mechanical transmission, spindle rotation, hydraulic feeding.
Technical Specifications
DF-Y-8 3000m Portable Hydraulic Diamond Rotary Core Drill
|
| Model | DF-Y-8 Core drill |
| Drilling depth | 1000-3000m |
| Max. lifting capacity of Spindle | 310KN |
| Rotation angle of Spindle | 0-360° |
| Max. pressuring force of Spindle | 145KN |
| Max. Hoisting force(single rope) | 135KN |
| Positive Spindle speed | 63/120/175/220/292/333/364/611/811/1012rpm |
| Negative spindle speed | 59/164rpm |
| Max. Torque of spindle | 11498N.M |
| Spindle stroke | 1000mm |
| Spindle diameter | 118mm |
| Steel wire diameter | 21.5mm |
| Content of Winding Drum | 160m |
| Dimension(L*W*H) | 4105*1892*2803mm |
| Weight(without power unit) | 7900kg |
Related Models of Core Drill Rig
| Model | Power | Drilling Capacity | Drilling Tools |
| DF-Y-9 | 170KW/1500rpm | 2000-4000M | BQ, NQ, HQ,PQ |
| DF-Y-9B | 170KW/1480rpm | 2000-4000m | BQ, NQ, HQ, PQ |
| DF-Y-8B | 134KW/1800rpm | 1000-3000M | BQ, NQ, HQ,PQ |
| DF-Y-6A | 84KW/1500rpm | 1000-2100M | BQ, NQ, HQ,PQ |
| DF-Y-6B | 84KW/1500rpm | 1200-2400M | BQ, NQ, HQ,PQ |
| DF-Y-44 | 50KW/1500rpm | 100-1400m | BQ, NQ, HQ,PQ |
| DF-Y-42 | 42KW/1500rpm | 100-1100m | BQ, NQ, HQ,PQ |
| DF-Y-4 | 31KW/1500rpm | 700-1000m | BQ, NQ, HQ,PQ |
| DF-Y-2 | 31KW/1500rpm | 300-500M | BQ, NQ, HQ,PQ |
Company Details
Our factory dedicates to manufacturing drilling rigs since 1970s, more than 40 years experience of production and development makes our product quality rank in the leading position at home and abroad. We are always seeking for ever greater perfection, keeping improving the production technology, offering better user experience
Our Factory
Related Accessories for Core Drill Rig
Hydraulic System
Diesel Engine
Drilling Tools
Core Drill Working Site
Certificates
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. Free training how to use the machine in our factory.
* Performance testing support. Engineers available to service machinery overseas
* View our Factory
Key Points To Buy
In order to order the suitable product,firstly you need to make sure the following details:
application→drilling depth→drilling caliber→stratum
The final right to interpret the drilling rig product is owned by DEFY company!!
Please donot hesitate to contact us if this model is fit for your business. And you are highly appreciated that if you could tell us more details of your business, then we can recommend most suitable model of drilling rig to you.
