| Prod Model: |
DFQ-200c |
| Weight: |
6500kgs |
| Power(W): |
50kw |
| Application: |
Water Well, Soil Sampling etc |
| Stratum: |
Gravel, Soil, Sand, Hard Rock etc |
| Control System: |
Hydraulic System.High Efficiency |
| Mobile Base: |
Mounted on Trailer, Wheel or Tractor, Crawler |
| Unit Length Of Drill Pipe: |
3m |
| Work Pressure: |
1-3.45 MPa |
| Apply To Rock Hardness: |
F=6-12 |
| Voltage: |
Customized |
Product Description

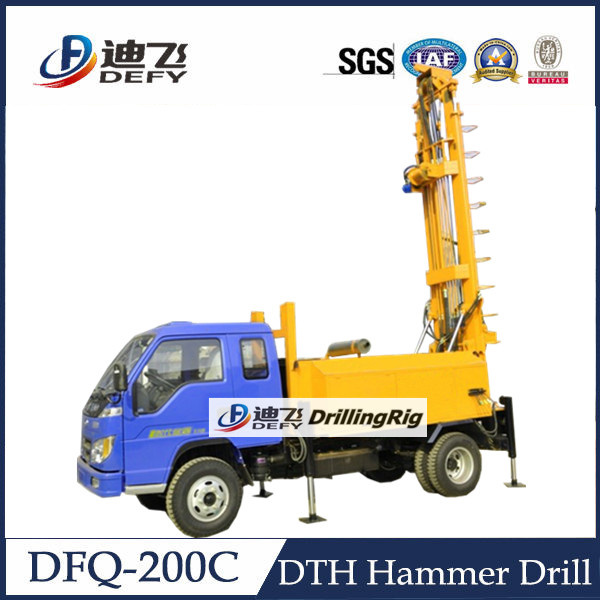

DFQ-200C truck mounted groundwater mining rotary drilling rig
DFQ-200C truck mounted groundwater mining rotary drilling rig is widely used for water wells, farm irrigation, geothermal wells.
Truck mounted, three or four people can sit in the truck, very convenient to move from one drilling site to another.
Technical Parameter
| Drilling diameter | 100-305 mm |
| Depth | <= 200m |
| Hoist lifting force | <=1.5t |
| Rotation speed | Slow 20r/min |
| | Quick 100r/min |
| Mud pump | BW800 |
| Drill rod | 89x8x3300mm |
| Drill tower height | 4-7 m |
| Power | 110 kw diesel engine |
| Dimension | L5500xW2000xH2400mm |
| Weight | 10 ton |
DFQ-200C truck mounted groundwater mining rotary drilling rig working site:
Advantages
1. It is applied to different drilling conditions.
2. Hydraulic control, mounted on truck, with easy operation and transportation.
3. Four hydraulic standing legs for stable working.
4. Automatic loading and unloading drill rods, automatic clearing wells.
5. It can work with both air compressor and mud pump system.
Packing & Delivery
| DFQ-200C truck mounted groundwater mining rotary drilling rig |
| Container | 40` HQ container |
| Main machine | L5500 x W2000 x H2400 , 24.2m3; |
| Weight | 10 ton |
| | |
| | |
