| Prod Model: |
XY-600C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Drilling Ability: |
Xy-600c |
| Max. Drilling Depth: |
600m |
| 75mm Drill Diameter: |
600m Depth |
| 108mm Drill Diameter: |
500m Depth |
| 127mm Drill Diameter: |
400m Depth |
| 159mm Drill Diameter: |
300m Depth |
| 219mm Drill Diameter: |
210m Depth |
| 273mm Drill Diameter: |
150m Depth |
| 500mm Drill Diameter: |
80m Depth |
| Power Type: |
Diesel |
| Type: |
Rotary Drilling Rig |
| Condition: |
New |
| Usage: |
Geological Exploration |
Product Description

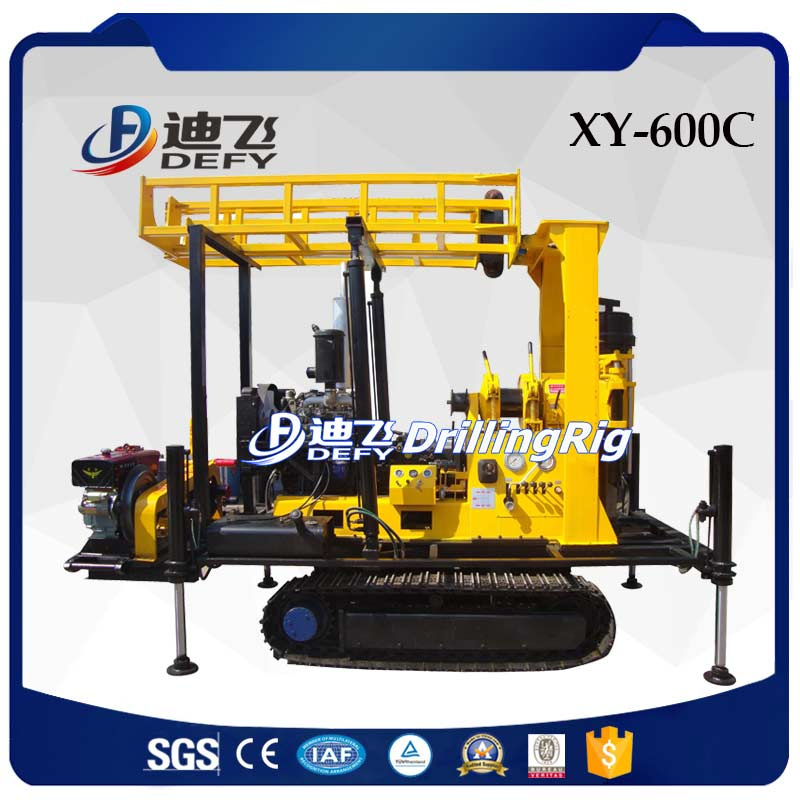

XY-600C portable diamond core sample drilling machine for sale
Introduction:
XY-600C core sample drilling machine is a rotary type water well drilling machine, widely used for geological exploration, mining blast, water borehle, etc.
Features:
1. Power supply:
It can be powered by diesel engine or electric motor as options;
2. Mobile base:
It can be mounted on trailer, crawler or truck for easy move and different drilling environment;
3. Automobile transmission assembly:
With 10 grades forward rotation speed and 2 grades reverse rotation speed, can meet various stratum drilling requirements.
4. Mud pump
Designed wih BW-200 or BW-250 mud pump, XY-600F is with much larger water flushing rate, with better scraps cleaning effects.
5. For different stratum
Soil, sand, gravel, rocks. XY-600C can work with alloy bit for soil and sand, PDC bit for gravel, and diamond bit for rocks and hard rocks.
Specification of XY-600C core sample drilling machine:
1. Main Parameters |
Max. Drilling Depth |
600m |
Diameter of drill pipe |
Φ42,Φ50,Φ60,Φ76 |
Angle of vertical spindle |
90°~65° |
2. Drilling capability |
Φ75mm drill diameter |
600m depth |
Φ108mm drill diameter |
500m depth |
Φ127mm drill diameter |
400m depth |
Φ159mm drill diameter |
300m depth |
Φ219mm drill diameter |
210m depth |
Φ273mm drill diameter |
150m depth |
Φ500mm drill diameter |
80m depth |
3. Mud pump(as per your choice) |
Horizontal triplex mud pump |
BW-200II |
Displacement |
200L/min |
Working pressure |
50kg/cm² @ 5MPa |
Diameter of water inlet hose |
65mm |
Diameter of water outlet hose |
38mm |
4. Power supply |
Diesel engine |
Model 4100,38kw(50PS) |
Electrical motor |
Y180M-4B35,22kw |
5. Weight and Dimension of main drilling rig |
Weight |
2880kg |
Dimension |
3700×1850×3200mm |
If you have any interest in our portable drilling rigs, please don't hesitate to send me inquiry, together with your detail requirement, our experienced engineers will create a complete set of drilling rig and accessories, ensuring you can use it directly after receiving goods. ^_^
