| Prod Model: |
DFR-12C |
| Type: |
Hydraulic Hammer |
| Motor Power: |
120kw |
Product Description

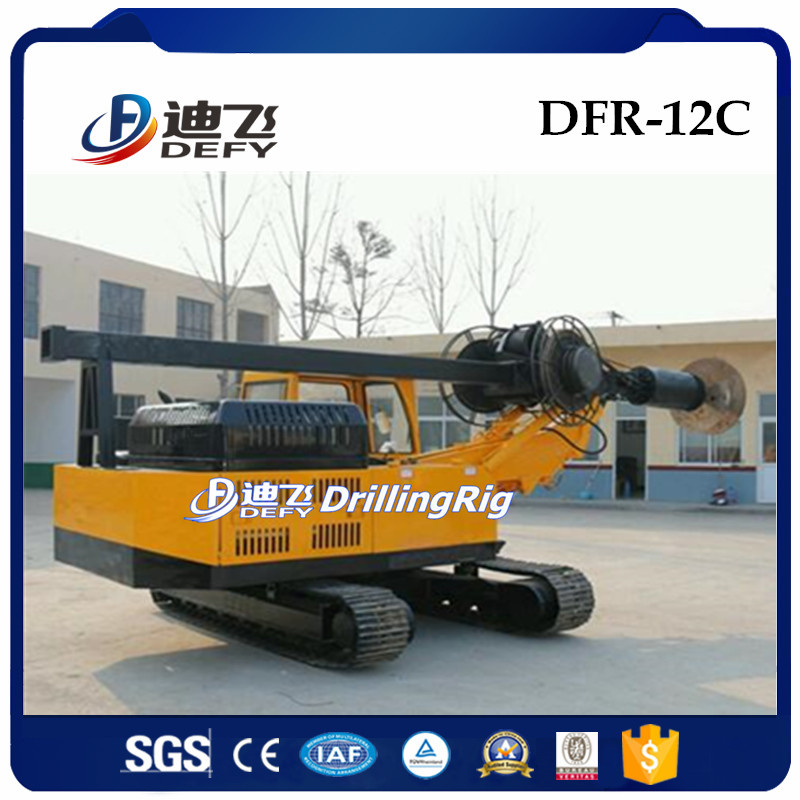

DFR-12C hydraulic rotary drilling rig pile driving hammer for solar energy
Product Application
DFR-12C pile driver is widely used for cement pole borehole of power construction, roads and bridges construction, high-rise buildings and other foundation construction project.
Technical Parameters
| Model | DFR-12C |
| Max. Drilling depth | 20 m |
| Drilling diameter | φ600-1200 mm |
| Diesel engine | 6105 turbocharging |
| Diameter of drill rod | 450-1200 mm |
| Walking speed | 8-12.8 Km/h |
| Rotation Angle | 360° |
| Continuous torque when drilling | 9000 N.M |
| Max. torque | 11000 N.M |
| Rotation speed | 0/30r/min |
| Hydraulic system pressure | 16 MPA |
| Working mode | Gravity drilling or pressure drilling |
Dimension
(L*W*H) | 7000*2200*3200 mm Transport |
| 7000*2200*8800 mm Working |
| Weight | 10~12 T |
| stratum | soft soil,clay,hard rock |
Product Features
1. Hydraulic power head drives to work with stable operation, large torque, high efficiency.
2. Adapt to various terrain and different geological conditions,apply to a variety of construction
requirements.
3. Two kinds of wheel-mounted and crawler-mounted models for your choice.
4. Can match with different drilling tools, such as engineering special short spiral, rotary bucket, core drilling tools etc.
5. Safety and reliability, the models are on the basis of excavator technology, facilitate accessories maintenance is easy.
Key Points To Buy
In order to order the suitable product,firstly you need to make sure the following details:
application→drilling depth→drilling caliber→stratum
