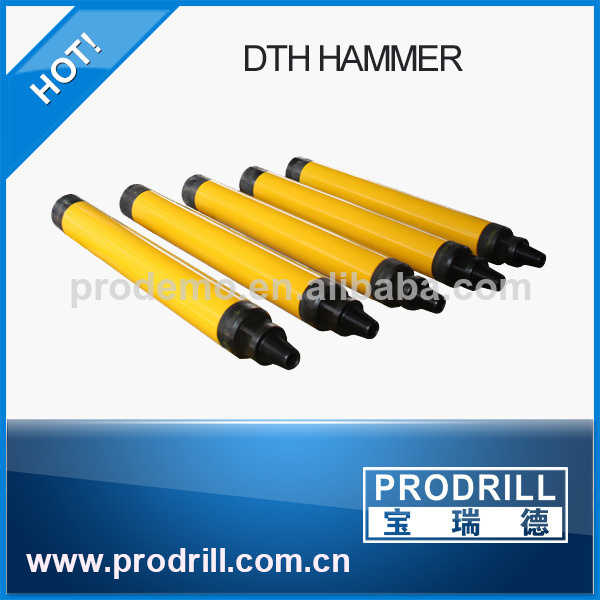

DHD 3.5, Mission 30, Br 3 DTH Hammer

Prod Model:	DHD 3.5, Mission 30, BR 3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Prodrill
Model Number:	DTH
Machine Type:	Drilling Tool
Certification:	API
Processing Type:	Forging
Model Type:	Cop 34, Cop 32, DHD 3.5, Mission 30, Br 3
Application:	Deep Hole Drilling
Color:	Red or as Your Request

Product Description

1) Specific heat treatment standards
2) Premium hardened steel alloy
3) High-grade cemented tungsten carbide buttons.
4) Certification: GB/T 19001-2008/ISO 9001: 2008

1.      Introduction and Description:
What is ?
Introduction: DTH is short for "down-the-hole".
DTH Drill Bits are produced from premium quality nickel-alloy steel for increased durability and wear characteristics. Specific heat treatment standards and special "stress relief" processes ensure consistent performance. DTH hammer bits are designed for maximum performance and hole cleaning ability and high penetration rate.

"Down-the-hole" (DTH) drill bits are used with "Down-the-hole" hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill bits are designed with a splined drive for rotating the bit in the ground. Drill bits are available in different sizes and different styles so they can drill a wide range of hole sizes.

All Prodrill's DTH drill bits are also CAD designed, CNC manufactured for perfect bits body, and multiple heat-treated to enhance hardness, surface-compressed for fatigue resistance, all thus to extend the product life for maximum wear and performance in the toughest of drilling conditions.

Application: The down-the-hole drilling tool is used to drill large-diameter holes in rocks, usually in the initial stage prior to blasting, but it is also used in non-blasting application.
DTH drilling are used mostly in mining quarries, but can be used in a variety of other construction application.
The DTH drilling method is growing in popularity, with the increase in all application segments, including blast-hole, water well, foundation, oil & gas, cooling systems and drilling for heat exchange pumps.
Applications were later found for the underground DTH method, where the direction of drilling is generally upwards instead of downwards.

Description:

Product Name:	DTH drill bits
Description:	DTH drill bits are used for blast hole drilling and water well drilling projects. Working with DTH hammer, mainly applied in Mining, Marble quarry or well drilling and other construction projects.
Material:	High quality carbide + High quality carbon steel
MOQ:	5pcs
Compatibility Series:	COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc


2.       Technical Specification

Specification:	Diameter: (mm)	Weight: (kg)
Low air pressure DTH bits CIR type	68 ~ 200	2.6 ~ 48
Middle air pressure BR & COP type	76 ~ 110	3.8 ~ 15
3 inch high Air pressure DTH bits	85 / 90 / 95 / 100 / 105	4.2 ~ 5.5
4 inch high Air pressure DTH bits	105 / 110 / 115 / 120 / 127	9 ~ 12
5 inch high Air pressure DTH bits	133 / 140 / 146 / 152 / 165	15 ~ 18.5
6 inch high Air pressure DTH bits	152 / 165 / 178 / 190 / 203	26 ~ 36
8 inch high Air pressure DTH bits	195 / 203 / 216 / 254 / 305	33 ~ 95

Specification:	Weight (kg)	External Diameter (mm)	Connection thread	Hole rang (mm)	Impact rate	Recommended rotation speed
3 inch DTH hammer   COP34/QL30 etc	24.5	81	API 2 3/8" Reg	90~110	28Hz (at 17 bar)	28 r/min
4 inch DTH hammer COP44/DHD340 etc	39.2	99	API 2 3/8" Reg	110~150	27Hz (at 17 bar)	25~40 r/min
5 inch DTH hammer COP54/Mission50 etc	71.5	125	API 2 3/8" or API 3 1/2" Reg	135~165	25Hz (at 17 bar)	20~30 r/min
6 inch DTH hammer COP64/QL60 etc	98	142	API 3 1/2" Reg	152~216	23Hz (at 17 bar)	15~25 r/min
8 inch DTH hammer COP84/SD8 etc	188	180	API 4 1/2" Reg	203~305	20Hz (at 17 bar)	15~



How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)
3", 4", 5", 6", 7", 8", etc.. you can choose bits equiped with related hammer)

Ps.: Other rock drill: besides Down-The-Hole tools, we also supply following rock drilling tools:
Construction & Mining & Rock Drill Tools:
A. DTH Hammer and Bit (drill hole dia.: 76 ~ 381mm), Overburden Drilling System;
B. Top Hammer (drill hole dia.: 33 ~ 152mm):
Thread Tools (Button Bits, Rod, Coupling, Shank Adaptor): (R25/28/32/38, T38/45/51, ST58)
C. High Rang Soundless Cracking Agent (dia. 40 ~ 50mm): break rock or reinforced concrete with silent.

2. Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory

3. About Us:
1.    Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2.    We have advanced technology and equipment.
3.    Our technician has more than 13 year's professional working experience.
4.    Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
