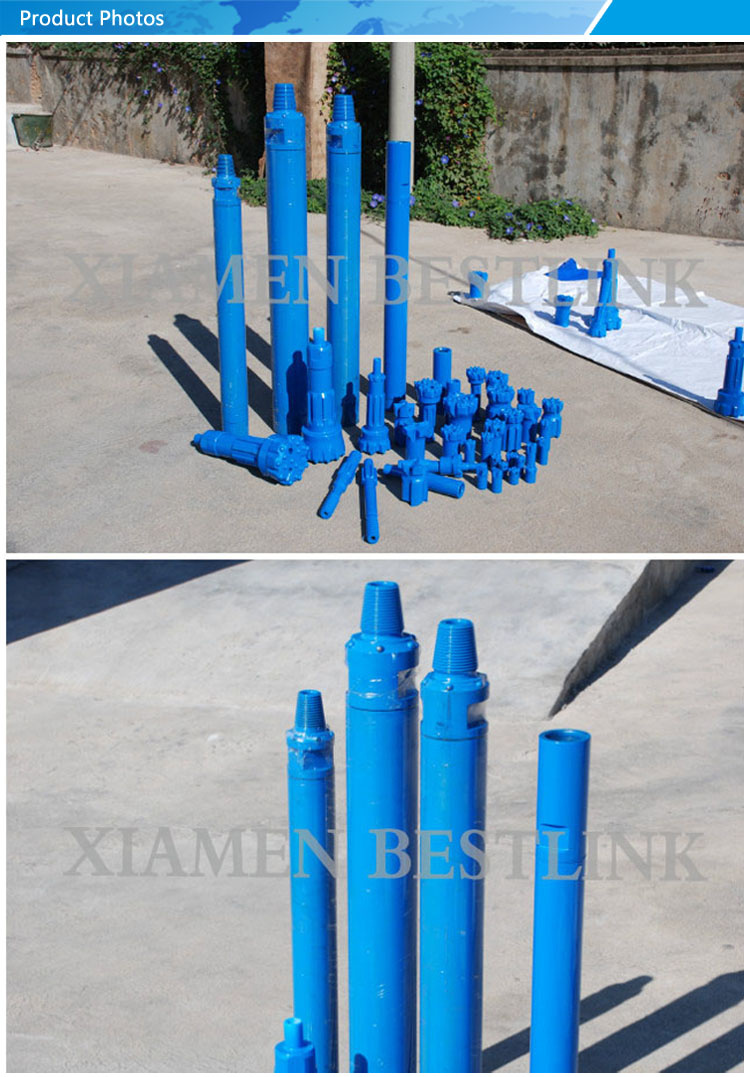

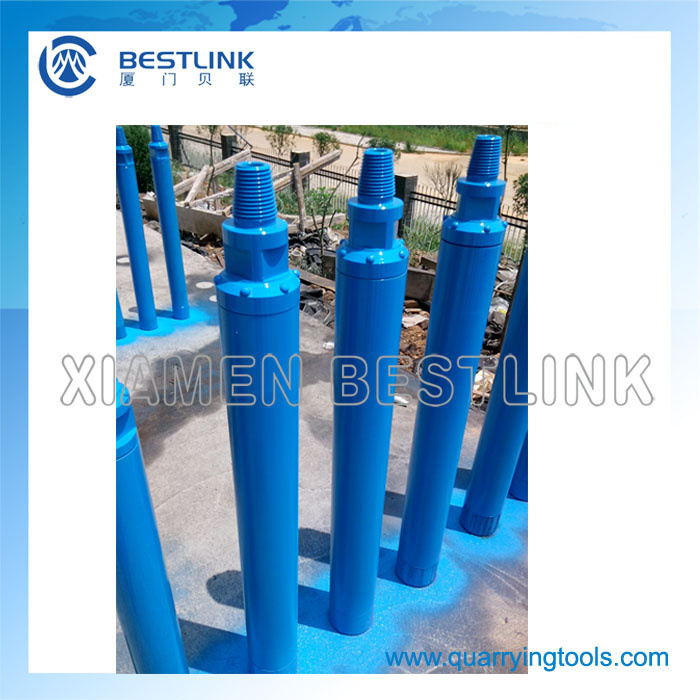

DHD/Coprod/Q/SD Hard Rock DTH Hammer
| Price: |
US $ 100-1300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
DHD Coprod QL SD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
High Carbon Steel |
| Series: |
SD HD Ql Cop Br DHD Mission |
| Export Markets: |
Global |
| Mining Object: |
Coal Machinery,Ore Machinery,Stone Quarry |
| Certificate: |
ISO2000 and SGS |
| Key Word: |
HD SD Cop and CIR90 Series DTH Hammer |
| Aplication: |

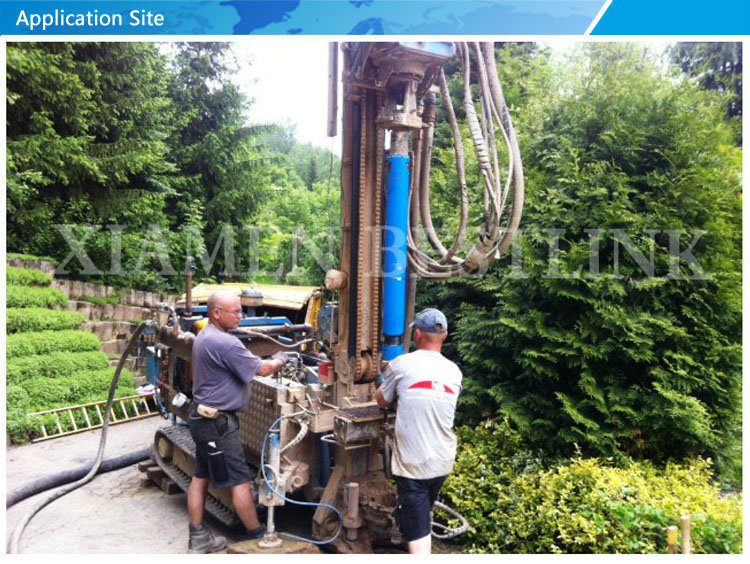

DTH Drilling. Coal Mining,Quarry |
| Drill Diameter: |
65-305mm |
| Export Experience: |
10 Years |
| Usage: |
Use Together with DTH Button Bits |
Product Description
DHD Coprod Ql SD Hard Rock DTH Hammer for Mining1, valveless air distribution. More reliable.
2, simple design of the piston, long life.
3, More efficient energy transfer, faster drilling speed, lower air consumption and lower oil consumption.
4, fewer internal parts, simple structure, longer life, less failure and easier to maintain becayse all the parts are heat treated.
5, It is easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multi-step thread.
Available series of DTH hammer:
1) high pressure
SD series hammer: SD 5, SD 6, SD 8 and SD 12 DTH Hammers.
QL series hammer: QL 50, QL 60, QL 80 DTH Hammers.
HD series hammers: DHD 3.5, DHD 340. DHD 350, DHD 360, DHD380 DTH Hammers.
Mission series hammers: M30, M40, M50, M60, M80 DTH Hammers.
Cop series hammers: Cop 32/34, Cop 42/44, Cop 54/64 DTH Hammers.
2) low air pressure:
BR1, BR2, CIR 70, CIR 90, J60, J80, J100, J150, etc.
Technical Data| COP 34, COP 44, COP 54, COP 64 Gold, COP 64, COP 84L, COP 84 hammers |
| |
| Hammer | COP 34 | COP 44 | COP 54 | COP 64 Gold | COP 64 | COP 84L | COP 84 |
| Type | Part No. | Part No. | Part No. | Part No. | Part No. | Part No. | Part No. |
| Standard | 9703-03-00 | 9704-03-00 | 9705-03-00 | 9706-5-30 | 9706-05-00 | 9708-8-8 | 9708-08-00 |
| 9705-05-00 |
| Q | 9703-3-4 | 9704-3-4 | 9705-3-4 | 9706-05-34 | 9706-5-4 | | |
| 9705-5-4 |
| QHD | | | 9705-03-06 API Reg | | 9706-05-06 API Reg | | |
| 9705-05-06 API Reg | 9706-05-36 API Reg |
| | 9706-07-36 API IF |
| WHD | | | 9705-03-20 (API Reg) | | | | |
| | |
| Effective length | 954 mm | 958 mm | 1069 mm | 1163 mm | 1213mm | 1230 mm | 1323 mm |
| External diameter | 83.5 mm | 98 mm | 120 mm | 142 mm | 142 mm | 160 mm | 178 mm |
| External diameter HD | | | 126 mm | 146 mm | 146 mm | | |
| Hammer weight | 27 kg | 38 kg | 57 kg | 96 kg | 95 kg | 139 kg | 158 kg |
| Hammer weight HD | | | 67 kg | 109 kg | 109 kg | | |
| Recommended bit size | 95-105 mm | 110-125 mm | 134-152 mm | 156-178 mm | 156-178 mm | 191-219mm | 203-254 mm |
| Rec. bit size HD hammer | | | 140-152 mm | 165-178 mm | 165-178 mm | | |
| Rit shank | COP 34 (Secoroc 3.5") | IR340A | IR350R | IRQL60 | IR 360 alt. Mission SD6/ 53-15 | Mission SD8/ 63-15 | IR380 |
| Top sub thread | 2 3 / 6 API Reg. | 2 3 / 6 API Reg | 2 3 / 6 API Reg | 3 1 / 2 API Reg | 3 1 / 2 API Reg | 4 1 / 2 API Reg | 4 1 / 2 API Reg |
| 3 1 / 2 API Reg | 3 1 / 2 API IF |
| Wrench flat | 65 mm | 65 mm | 65 mm | 102 mm | 102 mm | 120 mm | 140 mm |
| 95 mm |
| Wrench flat HD | | | 95 mm | | | | |
| 102mm |
| Working pressure | 6-25 bar (87-360 psi) | 6-25 bar (87-360 psi) | 6-25 bar (87-360 psi) | 6-30 bar (87-430 psi) | 6-25 bar (87-360 psi) | 6-25 bar (87-360 psi) | 6-20 bar (87-290 psi)
|

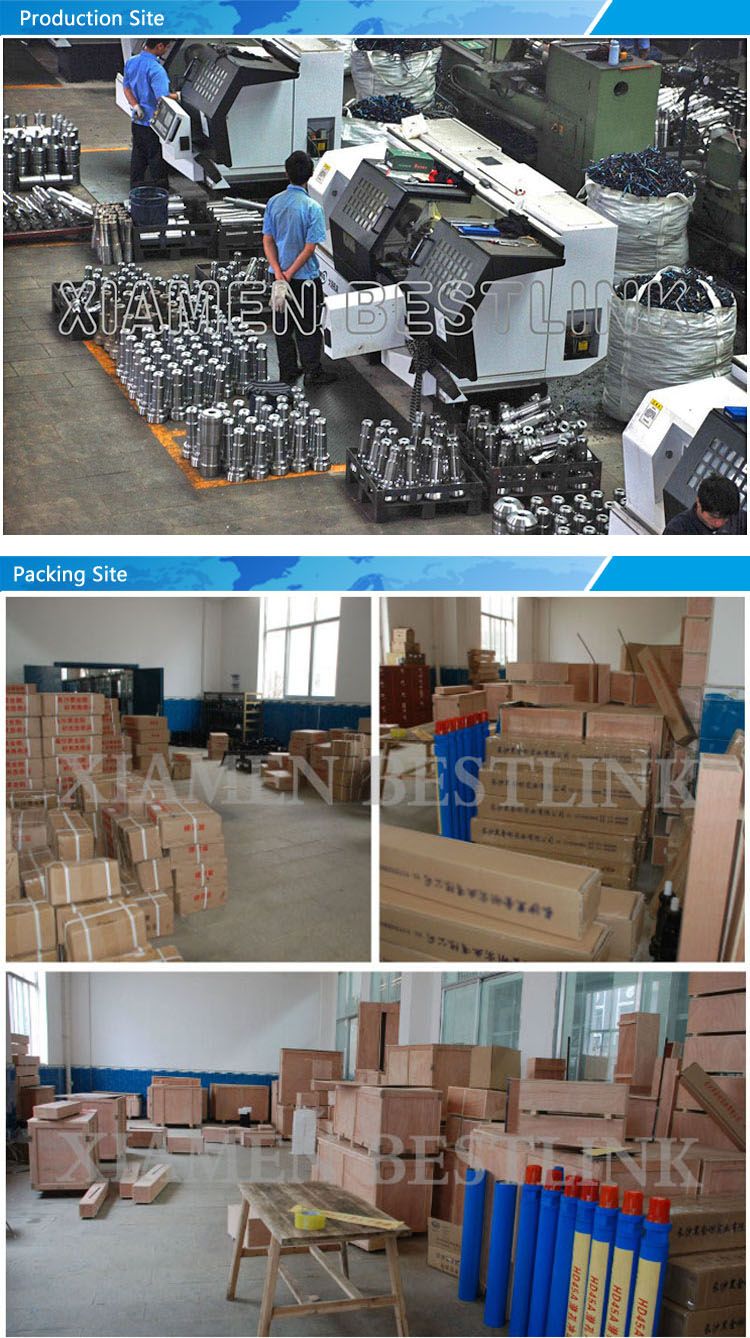

Xiamen Bestlink Factory Co., Ltd.Is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project.Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.
Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.
From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.
In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.
We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world No.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
