Diamond 12 1/4 TCI Tricone Bit for Oil Well Drilling

Prod Model:	12 1/4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types:	Tricone Bit
Model:	TCI Bit, Steel Tooth Bit
Type:	Tricone Bit
Use:	Oil and Mining

Product Description

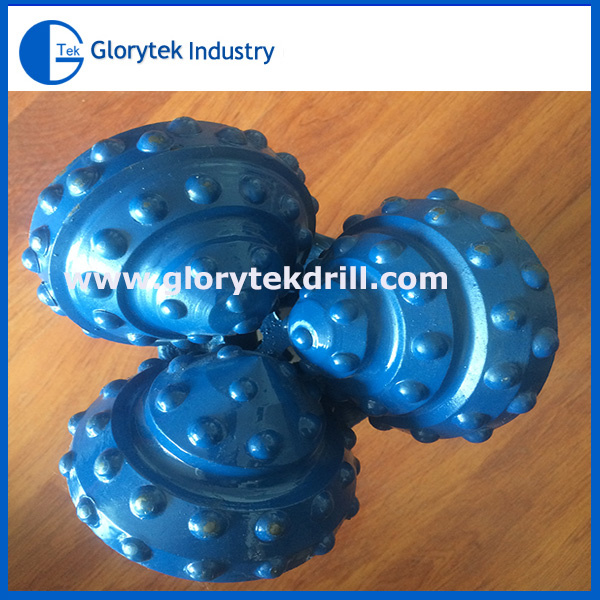

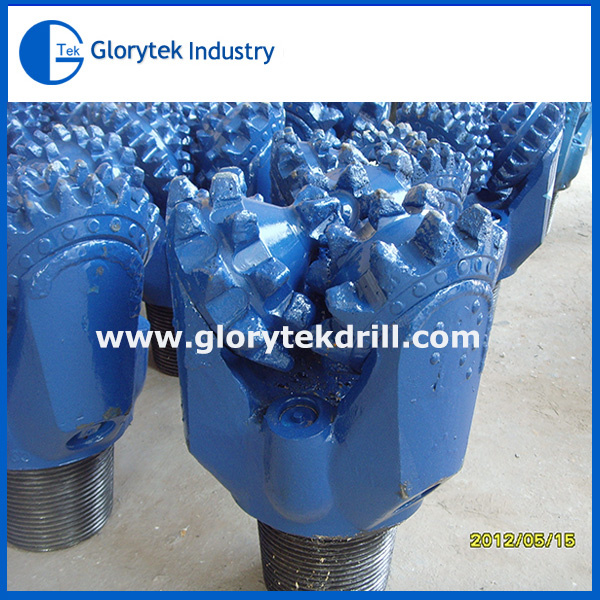

Diamond 12 1/4 TCI tricone bit used for oil well drilling




Cutting Structure

Tungsten Carbide Inserts: Various type high quality tungsten carbide inserts can be equipped on the bits, professional and scientific selection of the inserts as per the different application and drilling process to achieve high efficient drilling production.

Steel Tooth: Premium tungsten carbide hard facing on the surface, greatly enhance the wear resistance of the tooth.


Bearing Structure

Non-sealed roller bearing. Drilling fluid can enter the bearing directly for cooling;
Balls lock the cone which reduces the probability of cone dropping to minimum


Seals and Lubrication

The advanced metal seals improve the reliability and stability of the bearing sealing. Pressure difference type compensating system assures a good greasing lubrication function.


IADC

vary from 114--637 applicable for the hole drilling in the upper section with good drillability.


Techincal Parameter


Product	Tricone Bit
Model	TCI BIT, STEEL TOOTH BIT
IADC CODE	116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347
	417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535
available sizes	From 2 7/8 to26" larger sizes for hole opener bit ,reamer bit
advantage	most favorable price and best quality
bearing type	sealed bearing and non-sealed bearing metal sealed journal bearing rubber sealed journal bearing aircooled bearing type
Formation or layer	soft ,medium soft ,hard, medium hard, very hard formation
Button size (extra features)	Button bit,saw teeth 1) Y-Conical teeth 2) X-chisel teeth 3)K- wide teeth 4)G- Gague protection
Packing	Wooden case
Delivery terms	By sea or by air
Market	Canada,USA, Middle east ,Africa,Europe
Application	Petroleum & gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work




Our Services
Delivery Time: Based on order quantity, normally it takes 30 days for production.Only 2 or 3 days if we have stock on your request size.
Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
After Services: Technical Support will be available in any time. We could provide the professional suggestion for you.
EX: 1.Select the right most suitable products.
       2. According to the rock types, choosing the face type, button tooth type.
       3. According to the different purpose,. choosing the different body type
