| Prod Model: |
8 1/2" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Types: |
PDC Anchoring Bit |
| Diameter: |
27-42mm |
| Type: |
PDC Bits |
| Use: |
Mining |
Product Description
high performance 8 1/2" PDC diamond bits /PDC drill bits
Advantage
1.Deep and Fast Penetration
2.Reasonable Price
3. Good Quality
4. Best Service

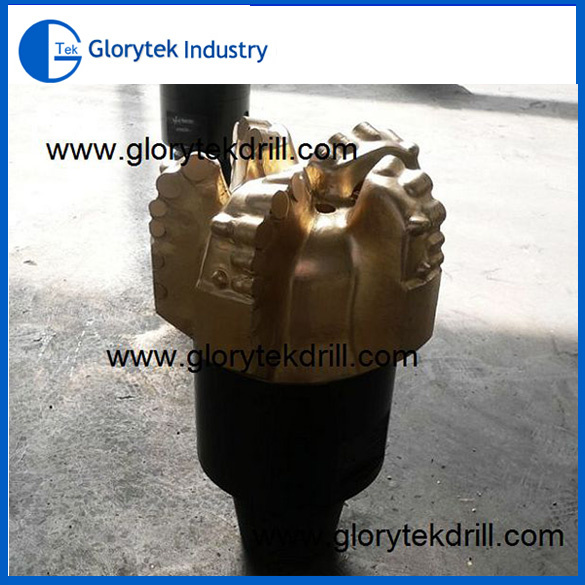

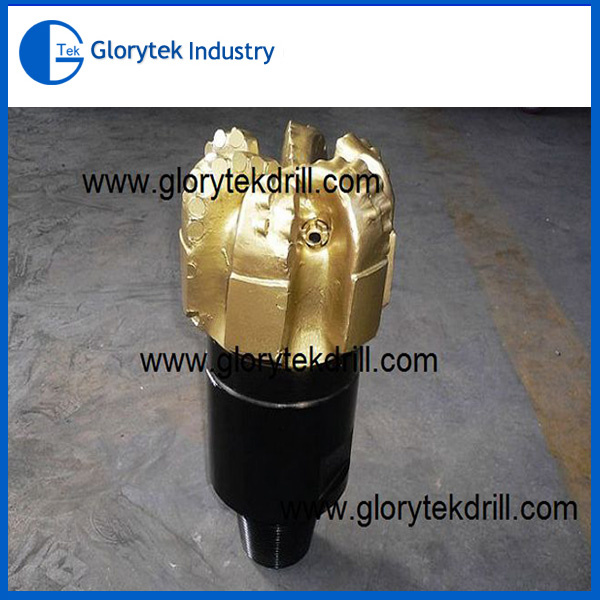

Picture for PDC Bits
Technical Parameter
1. PDC Coring Bit
PDC coring bit is one kind of tube-shaped and multi-tooth bit, which can get core. It is mainly used in geological exploration, coal mining, water conservancy and hydropower, construction of road, railway, bridge and building
Types of PDC Core Bit & Application |
| Type | Application |
| PDC Core Bit | Normal | Fit for f <8 rock formations |
| Reinforced | Fit for f <10 rock formations |
2. PDC Drill Bit
PDC drill bit is a kind of full face drilling bit. It is mainly used for coal mining, water conservancy and hydropower, construction of road and building. PDC drill bits are including PDC anchoring bit, PDC drag bit, PDC Pillar-type bit and PDC concave drill bit.
A. PDC Anchoring Bit
PDC Anchoring Bit |
| Bit Types | Application |
| 2-wing half normal | Fit for f <8 rock formations |
| 2-wing full | Normal | Fit for f <10 rock formations |
| Reinforced | Fit for f <15 rock formations |
| 3-wing full | Normal | Fit for f <15 rock formations |
| Reinforced | Fit for f <18 rock formations |
| PDC Anchoring Bit |
| Type | Diameter(mm) | Height(mm) | Nozzle(pcs) | Nozzle Size( mm) | Thread(mm) |
Normal
Reinforced | 27 | 48 | 3 | 4 | M14x1.5
M12x2
M16x2 |
| 28 | 48 | 3 | 4 |
| 29 | 48 | 3 | 4 |
| 30 | 48 | 3 | 4 |
| 32 | 48 | 3 | 4 |
| 36 | 52 | 3 | 4 |
| 42 | 60 | 3 | 4 |
B. PDC Drag Bits
We Glorytek Industry manufacture and supply various of PDC Drag bits, like 3-wing,4-wing, 5-wing, 6-wing. And we can customize to meet your special requirements.
Types of PDC Drag Bit & Application |
| Type | Application |
| PDC 4-wing Drag Bit | Normal | Fit for f <6 rock formations |
| Reinforced | Fit for f <8 rock formations |
| PDC Multi-wing Drag Bit | Normal | Fit for f <6 rock formations |
| Reinforced | Fit for f <8 rock formations |
| PDC Drag Bits Specification |
| Type | Size
(mm) | Heigh
(mm) | Wings
(pcs) | PDC Cutter
( pcs) | Nozzle
(pcs) | Nozzle Size
(mm) |
Normal
Reinforced | 94 | 170 | 4 | 16 | 5 | 6 |
| 113 | 195 | 4 | 20 | 5 | 8 |
| 133 | 220 | 6 | 30 | 5 | 8 |
| 153 | 250 | 6 | 36 | 5 | 10 |
C. PDC Pillar-type Bit
Types of PDC Pillar Bit & Application |
| Type | Application |
| PDC Pillar-Type Bit | Normal | Fit for f <10 rock formations |
| Reinforced | Fit for f <12 rock formations |
| PDC Pillar Bit Specifications |
| Type | Diameter
(mm) | Heigh
(mm) | PDC Cutter
( pcs) | Flushing Holes |
Normal
Reinforced | 60 | 120 | 5 | 3 |
| 75 | 130 | 6 | 3 |
| 94 | 130 | 8 | 4 |
| 114 | 140 | 11 | 5 |
| 133 | 150 | 14 | 6 |
D. PDC Concave Bit
Types of PDC Concave Bit & Application |
| Type | | Application |
| PDC 3-wing Concave Bit | Normal | Fit for f <8 rock formations |
| Reinforced | Fit for f <10 rock formations |
| PDC 4-wing Concave Bit | Normal | Fit for f <10 rock formations |
| Reinforced | Fit for f <12 rock formations |
| PDC 4-wing Concave Bit | |
| Type | Diameter
(mm) | Heigh
(mm) | Break Post
(pcs) | PDC Cutter
( pcs) | Nozzle
(pcs) | Nozzle Size
(mm) |
Normal
Reinforced | 75 | 120 | 2 | 8 | 6 | 8~10 |
| 94 | 125 | 2 | 8 | 6 | 8~12 |
| 113 | 130 | 2 | 12 | 6 | 10~12 |
| 133 | 140 | 3 | 12 | 6 | 10~12 |
Our Services
Delivery Time: Based on order quantity, normally it takes 30 days for production.Only 2 or 3 days if we have stock on your request size.
Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
After Services: Technical Support will be available in any time. We could provide the professional suggestion for you.
EX: 1.Select the right most suitable products.
2. According to the rock types, choosing the face type, button tooth type.
3. According to the different purpose,. choosing the different body type
